Ubiquiti Networks UniFi Data Networking Model Overview
Ubiquiti UniFi Access Points provide business-class wireless coverage with cloud-ready, centralized control. The UniFi platform streamlines configuration, security policies, and network analytics across single or multi-location deployments. PoE support and versatile mounting options speed installation in new builds or retrofit environments. Perfect for enterprises, campuses, hotels, restaurants, and managed service providers seeking scalable, high-reliability Wi-Fi.

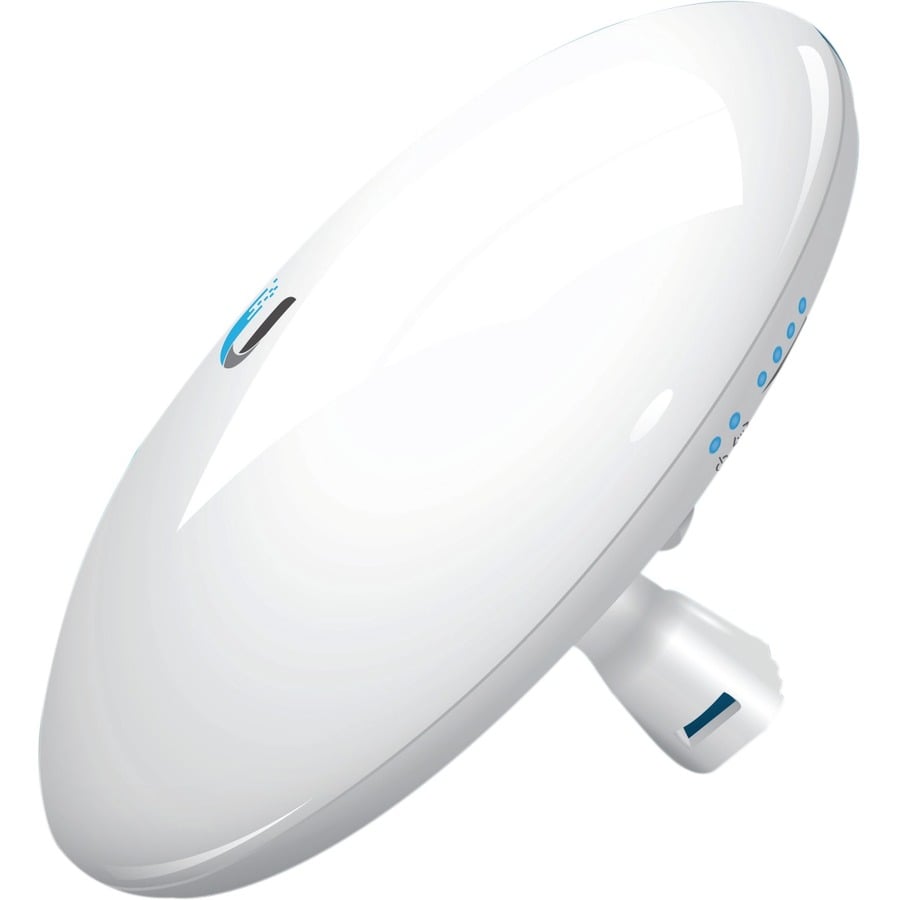

Ubiquiti Networks launches the latest generation of airMAX CPE (Customer Premises Equipment), the NanoBeam® 2AC with dedicated Wi-Fi management. Improved Noise Immunity
The NanoBeam 2AC directs RF energy in a tighter beamwidth. With the focus in one direction, the NanoBeam 2AC blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.
Integrated Design
The radio and antenna are combined to create a more efficient and compact CPE. The NanoBeam 2AC gets maximum gain out of the smallest footprint.
Providing high performance and an innovative form factor, the NanoBeam 2AC is versatile and cost-effective to deploy.
Software
airOS® 8
airOS® 8 is the revolutionary operating system for Ubiquiti® airMAX ac products.
What are the mounting options for the Ubiquiti NBE-2AC-13-US?
The NBE-2AC-13-US supports multiple mounting configurations including pole-mount (with kit included) and wall-mount options. A suction cup mount is also available as an optional accessory for window mounting, making it flexible for various deployment scenarios in warehouse and logistics environments.
What is the power consumption and PoE requirement for this access point?
The NBE-2AC-13-US requires 24V, 0.5A PoE power supply and has a maximum power consumption of 6W. This low power draw makes it ideal for remote installations where power efficiency is critical, and we offer compatible PoE injectors to support your deployment.
How does the NBE-2AC-13-US perform in outdoor and harsh environments?
This access point is built with outdoor UV-stabilized plastic enclosure and is rated for wind survivability up to 200 km/h (125 mph) with 45.4 N wind loading at that speed. It operates reliably across -40 to 80°C temperature range and 5 to 95% noncondensing humidity, with ESD/EMP protection up to ±24 kV, making it suitable for demanding warehouse and outdoor logistics applications.
What wireless standards and channel configurations does the NBE-2AC-13-US support?
The NBE-2AC-13-US operates on the 2405-2475 MHz frequency band and supports channel sizes of 5/8/10/20/30, and 40 MHz with dual linear polarization. It delivers 330 Mbit/s throughput with MIMO technology for reliable coverage in warehouse and distribution center environments.
What networking interface does this access point provide?
The NBE-2AC-13-US features one 10/100 Ethernet port (RJ-45) for network connectivity. This single gigabit-capable interface supports both point-to-point and point-to-multipoint wireless configurations for flexible network topology in logistics operations.
What certifications and compliance standards does the NBE-2AC-13-US meet?
The NBE-2AC-13-US is FCC, IC, and CE certified and is fully RoHS compliant. It has passed rigorous environmental testing including salt fog (IEC 68-2-11), vibration (IEC 68-2-6), temperature shock (IEC 68-2-14), UV exposure (IEC 68-2-5), and wind-driven rain tests (ETS 300 019-1-4), ensuring reliability in demanding warehouse conditions. Contact us today to discuss deployment specifications for your facility.
