The LBE-5AC-LR-US operates in the 5 GHz band with frequency ranges that vary by region. In the USA, the device supports 5150–5250 MHz (U-NII-1), 5250–5350 MHz (U-NII-2A), 5470–5725 MHz (U-NII-2C), and 5725–5850 MHz (U-NII-3). Worldwide operation spans 5150–5875 MHz. This multi-band support makes it suitable for various point-to-point and point-to-multipoint wireless deployments across different regulatory regions.
The LBE-5AC-LR-US delivers 23 dBi antenna gain with a maximum output power of 25 dBm. These specifications provide strong directional coverage suitable for long-range wireless links. The high gain combined with moderate power output enables efficient point-to-point connectivity in warehouse and logistics environments.
The device is powered via a 24V Gigabit PoE adapter (included) using passive PoE on pairs 4, 5+ and 7, 8 return. Maximum power consumption is 7W, and the supported voltage range is 24V ± 10%. This efficient power design allows for flexible deployment on poles and elevated mounting points where standard AC power may not be available.
The LBE-5AC-LR-US is rated for operating temperatures from -40 to 70°C (-40 to 158°F) and operating humidity from 5 to 95% noncondensing. It features ± 24 kV ESD/EMP protection and can survive wind speeds up to 200 km/h (125 mph). These specifications make it suitable for outdoor warehouse and logistics deployments in demanding environmental conditions.
The LBE-5AC-LR-US includes one 10/100/1000 Gigabit Ethernet port for network connectivity. It supports airMAX ac modulation with data rates ranging from 1x BPSK (½) up to 4x 16QAM (¾), with RX sensitivity ranging from -96 dBm to -86 dBm depending on modulation type. Channel sizes support 10/20/30/40/50/60/80 MHz in point-to-point mode and 10/20/30/40 MHz in point-to-multipoint mode.

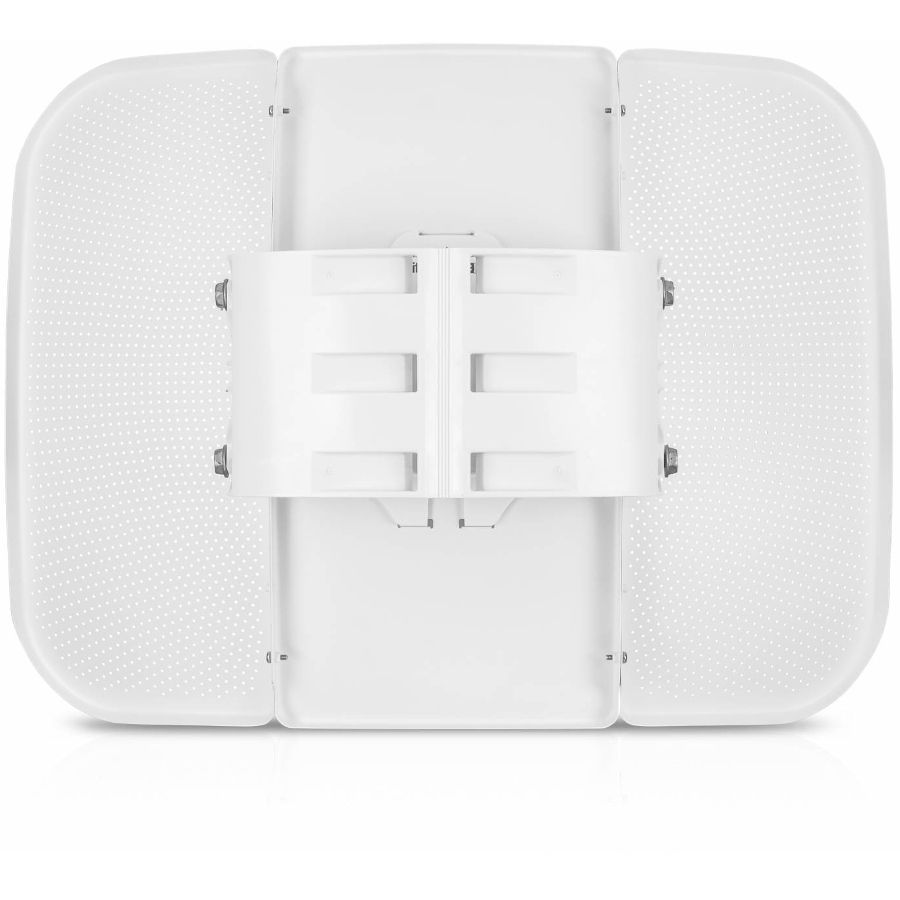

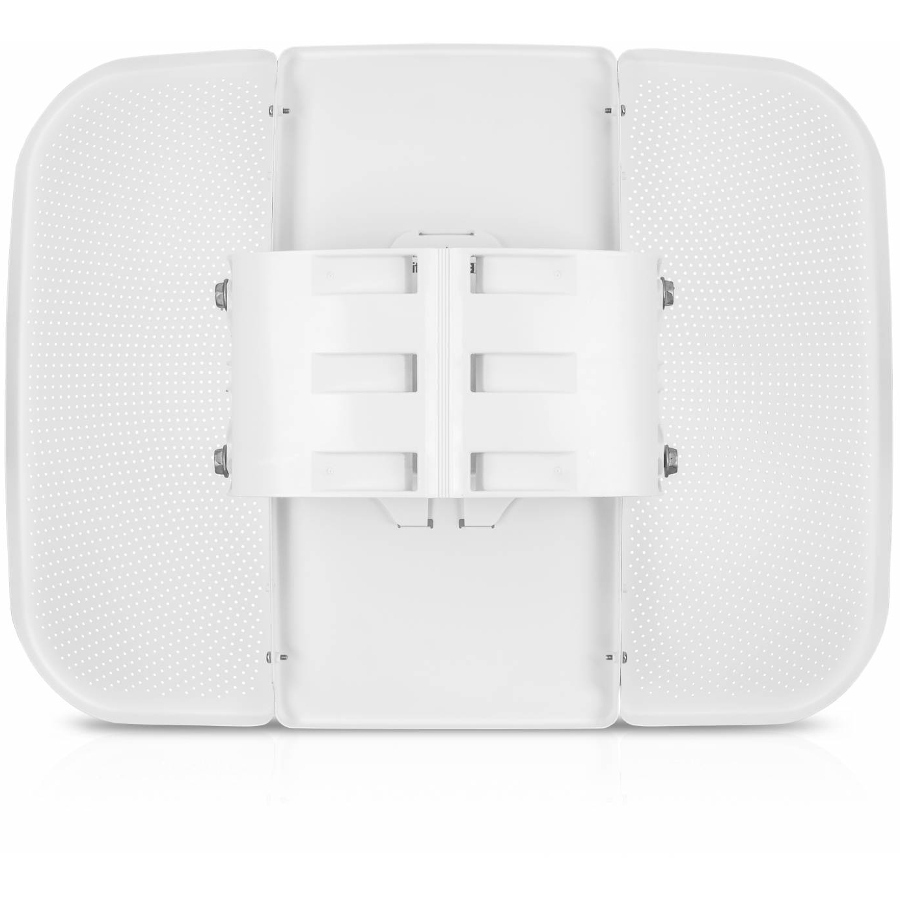

Yes, the LBE-5AC-LR-US is pole-mountable and includes a pole-mounting kit as standard. The device weighs 800 g without the mount and 980 g with the mount, making it lightweight for elevated installation. Its compact dimensions (358 x 271.95 x 272.5 mm) and included mounting hardware simplify deployment in warehouse and logistics network infrastructure. Contact us today to discuss installation options for your facility.
