Ubiquiti Networks LAP-120-US Wireless Access Points

Part Number: LAP-120-US
Model: Parts
Add to My Shopping List Add to Compare
$88.33
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Wireless LAN Standard
IEEE 802.11ac
Frequency Band
5 GHz
Wireless Transmission Speed
450 Mbit/s
MIMO Technology
Yes

Product Description:

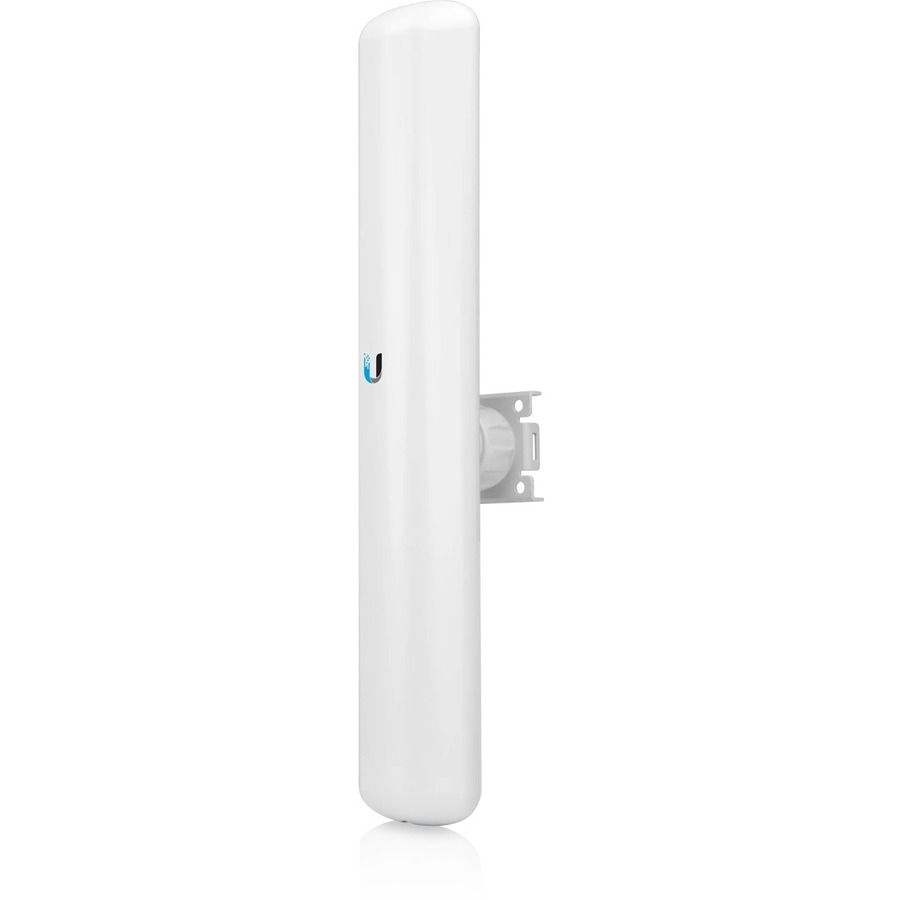

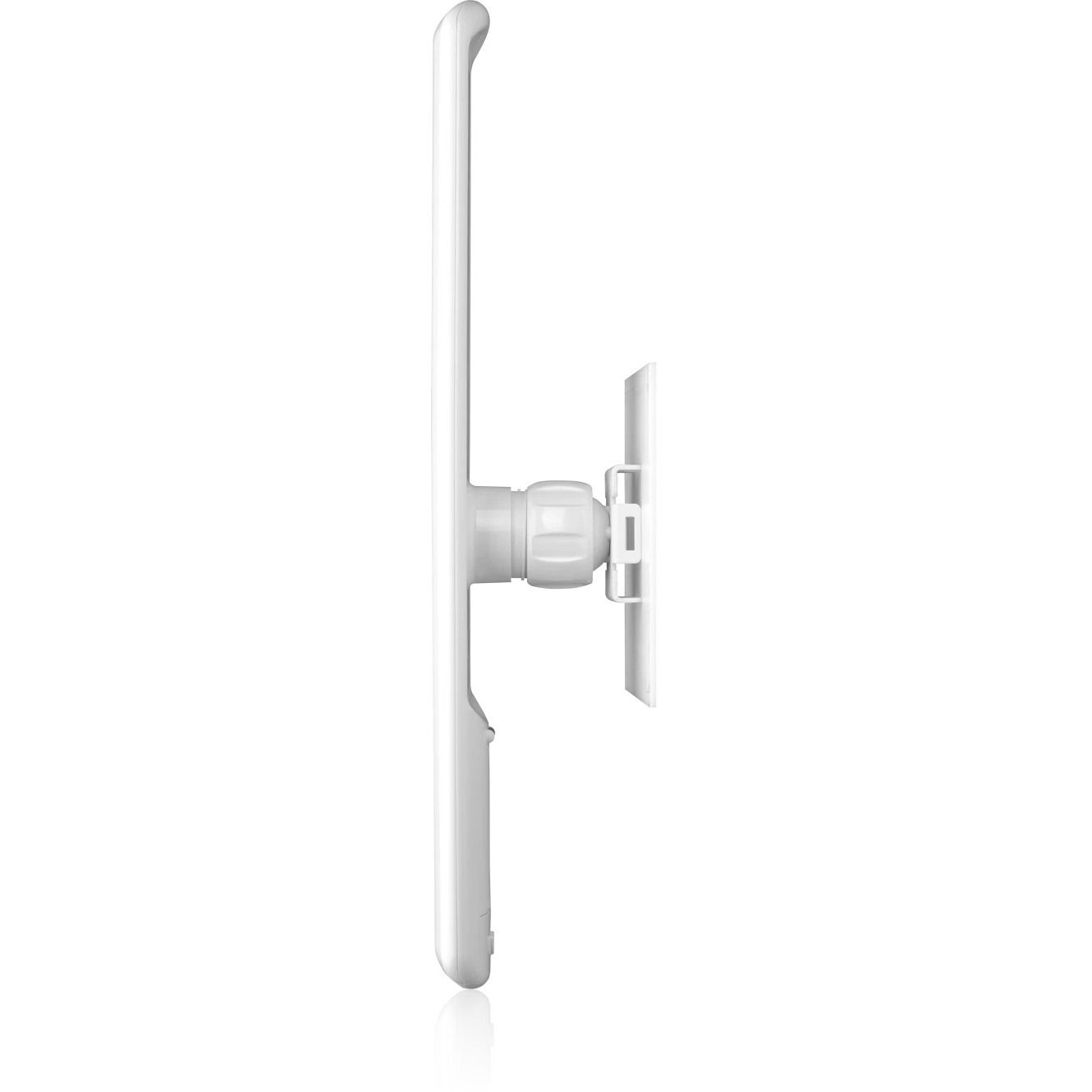

  Ubiquiti LiteAP AC LAP-120 IEEE 802.11ac 450 Mbit/s Wireless Access Point - 5 GHz - MIMO Technology - 1 x Network (RJ-45) - Gigabit Ethernet - Pole-mountable, Ball Joint.
Explore all Ubiquiti Networks Parts Accessories
Add to Quote
Ubiquiti Networks LAP-120-US Wireless Access Points
Ubiquiti Networks LAP-120-US Wireless Access Points
Ubiquiti Networks LAP-120-US Wireless Access Points
Ubiquiti Networks LAP-120-US Wireless Access Points
Ubiquiti Networks LAP-120-US Wireless Access Points
Ubiquiti Networks LAP-120-US Wireless Access Points
Ubiquiti Networks LAP-120-US Wireless Access Points Ubiquiti Networks LAP-120-US Wireless Access Points Ubiquiti Networks LAP-120-US Wireless Access Points Ubiquiti Networks LAP-120-US Wireless Access Points Ubiquiti Networks LAP-120-US Wireless Access Points Ubiquiti Networks LAP-120-US Wireless Access Points
Technical Information
Wireless LAN Standard:
IEEE 802.11ac
Frequency Band:
5 GHz
Wireless Transmission Speed:
450 Mbit/s
MIMO Technology:
Yes
Interfaces/Ports
Ethernet Technology:
Gigabit Ethernet
Number of Network (RJ-45) Ports:
1
PoE PD Port:
Yes
Physical Characteristics
Form Factor:
  • Pole-mountable
  • Ball Joint
Height:
17.8"
Width:
3.1"
Depth:
2.1"
Weight (Approximate):
14.82 oz
Miscellaneous
Package Contents:
  • 2x2 MIMO airMAX ac Sector AP
  • Pole Mounting Kit
  • 24V, 0.5A Gigabit PoE Adapter
Environmentally Friendly:
Yes
Environmental Compliance:
  • Restriction of Hazardous Substances (RoHS)
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0085783452918, 0085783452925, 0696544723132, 0817882025522
UPC: 085783452918, 085783452925, 696544723132, 817882025522
EAN: 0085783452918, 0085783452925, 0696544723132, 0817882025522
UNSPSC: 43222631

Frequently Asked Questions

The Ubiquiti LAP-120-US is an IEEE 802.11ac wireless access point that operates in the 5 GHz frequency band with MIMO technology. It delivers up to 450 Mbit/s throughput and features a single Gigabit Ethernet (RJ-45) network connection for wired connectivity.

Yes, the LAP-120-US is designed for both indoor and outdoor deployment with a pole-mountable design and ball joint for flexible positioning. The access point features an outdoor UV-stabilized plastic enclosure to withstand harsh environmental conditions.

The LAP-120-US operates on a 24V, 0.5A Gigabit PoE adapter with passive Power over Ethernet (PoE) using pairs 4, 5+ and 7, 8 for return. Maximum power consumption is 8.5W, making it efficient for deployment in remote locations powered by PoE.

The LAP-120-US is equipped with an Atheros MIPS 74Kc processor running at 720 MHz, 128 MB DDR2 SDRAM, and 16 MB NOR FLASH memory. These specifications support reliable performance for small to medium-sized wireless deployments.

The LAP-120-US supports flexible channel configurations with 10/20/30/40/50/60/80 MHz channel sizes in Point-to-Point (PtP) mode and 10/20/30/40 MHz sizes in Point-to-Multipoint (PtMP) mode. This flexibility allows optimization for various network topologies and interference conditions.

Yes, Ubiquiti's airMAX antennas have been designed to seamlessly integrate with Rocket radios and compatible access points through plug-and-play integration. Every airMAX antenna features a built-in Rocket mount, requiring no special tools for installation. Contact us today to find the right antenna combination for your deployment.

The Ubiquiti Networks LAP-120-US Wireless Access Points is also known as UBI-LAP120US
