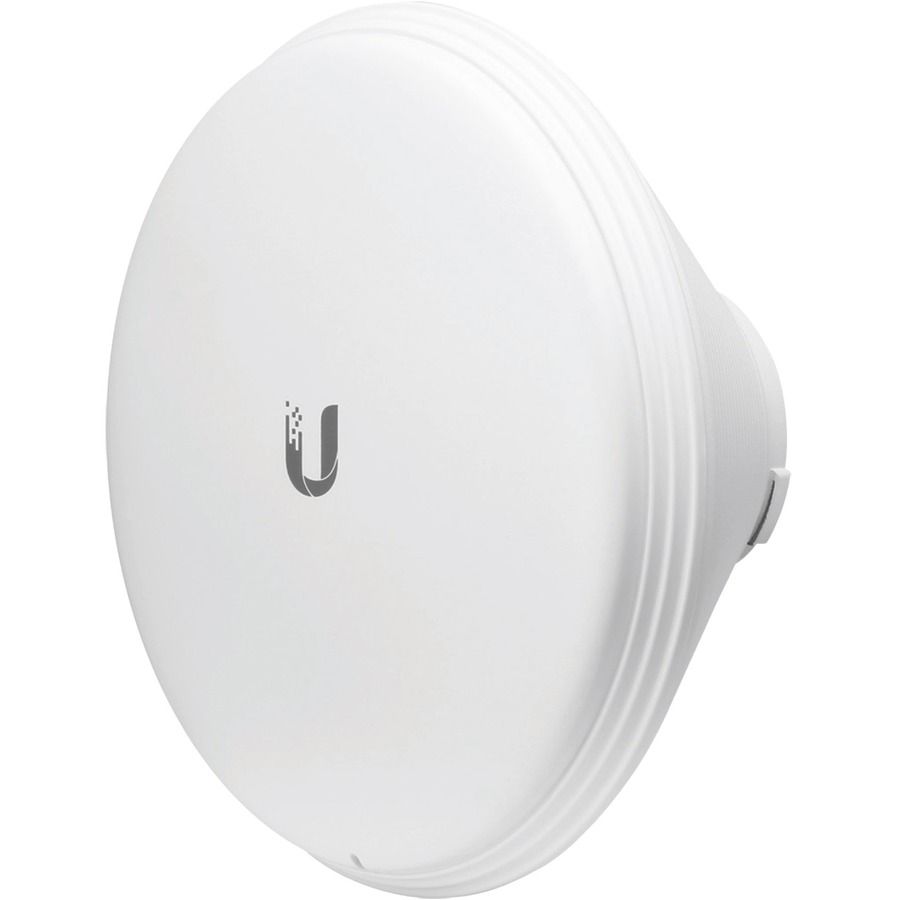

The HORN-5-45 operates across 5.15 GHz to 5.85 GHz, covering worldwide 5 GHz bands including USA U-NII-1 (5150–5250 MHz) and U-NII-3 (5725–5850 MHz) frequencies. This wide frequency support makes it suitable for long-range wireless bridge and point-to-point deployments across multiple regulatory regions.
The HORN-5-45 delivers 15.5 dBi gain with a 45° beamwidth, providing focused directional coverage ideal for wireless bridge applications. This combination of high gain and moderate beamwidth enables reliable long-distance links while maintaining reasonable coverage angles for point-to-point connectivity.
The HORN-5-45 operates reliably in temperatures from -40 to 70°C (-40 to 158°F) and humidity levels from 5 to 95% noncondensing. It is designed to withstand wind loading of 36 N at 200 km/h (125 mph), making it suitable for outdoor deployment in challenging weather conditions.
The HORN-5-45 features pole-mount capability, allowing flexible installation on standard mounting structures. This design supports typical outdoor wireless bridge and access point deployment scenarios where pole-based infrastructure is standard.
The HORN-5-45 operates on 24V passive Power over Ethernet (PoE) with a 0.5A Gigabit PoE adapter and draws a maximum of 8.5W during operation. This efficient power design simplifies deployment by allowing single-cable installation for both power and data connectivity.
The HORN-5-45 is certified by the FCC, IC (Industry Canada), and CE (European Conformity), ensuring compliance with regulatory requirements across North America and Europe. We offer this certified product to support compliant deployments in these regions—contact us today for availability and integration support.
