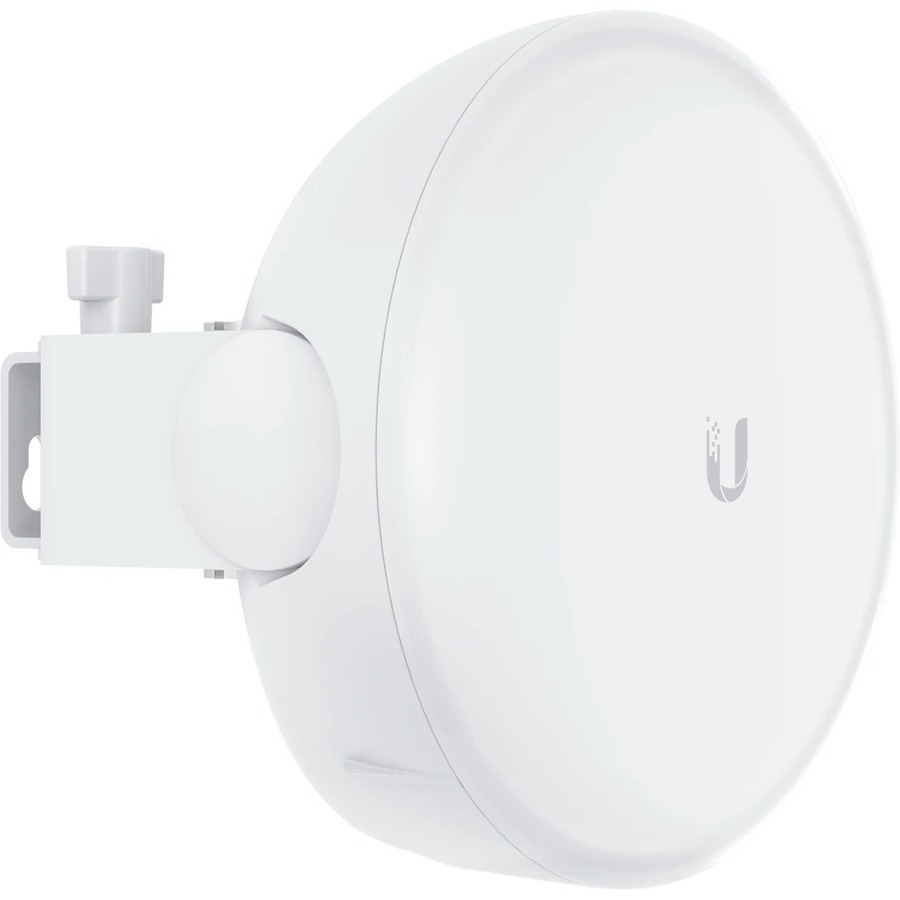

Ubiquiti Networks GBE-PLUS-US Accessory

• Polycarbonate
• Stainless Steel

• Mount material: Metal
• Wind loading 50 N at 200 km/h (11.24 lbf at 125 mph)

Hardware:

• Processor Quad-Core ARM® Cortex® A7
• Memory 256 MB DDR3
• RF connections Internal
• Max. power consumption 11W
• Power method Passive PoE (Pairs 4, 5+; 7, 8-)
• Power supply 24VDC, 0.5A Gigabit PoE adapter
• Supported voltage range 22 to 26VDC
• ESD/EMP protection Air/Contact: ± 24kV
• Operating temperature -40 to 60° C (-40 to 140° F)
• Operating humidity 5 to 95% noncondensing

• Power:
• Flashing white: Booting up
• White: Not connected to UISP
• Blue: Connected to UISP

• Ethernet:

• Flashing blue: Ethernet traffic detected

• 60GHz:

• Blue: Connected

• OS: airOS®
• Operating modes: PtP master or station
• Ubiquiti specific features: Integrated 60 GHz radio, discovery protocol
• Security: WPA2 AES only
• Dashboard: Yes
• Wireless settings: Yes
• Network settings: Yes
• System: Yes
• Services: UISP, ping watchdog, web server, SSH server, NTP client, system log, device discovery
• Tools: Antenna alignment, discovery utility, traceroute, speed test
• Management interface: UISP application (web/mobile)
• Minimum software requirements: A modern web browser or an iOS/Android device

• Operating frequency: 57,000 - 66,000 MHz (Dependent on regional regulations.)
• Channel bandwidth: 2160 MHz
• Operating channels: 58320, 60480, 62640, 64800 MHz
• Beamwidth:
• Azimuth: 2° (-3 dB) / 3° (-6 dB)
• Elevation: 2° (-3 dB) / 3° (-6 dB)

• Bluetooth: 2400 - 2483.5 MHz
• Electrical downtilt: 0°

• FCC
• IC
• CE
