Network (RJ-45):
Yes
Ubiquiti Networks GBE-LR-US Data Networking
Part Number:
GBE-LR-US
Model:
Parts
Interfaces/Ports
Network & Communication
Ethernet Technology:
Gigabit Ethernet
Physical Characteristics
Height:
11.9"
Width:
16.3"
Weight (Approximate):
3.09 lb
Miscellaneous
Package Contents:

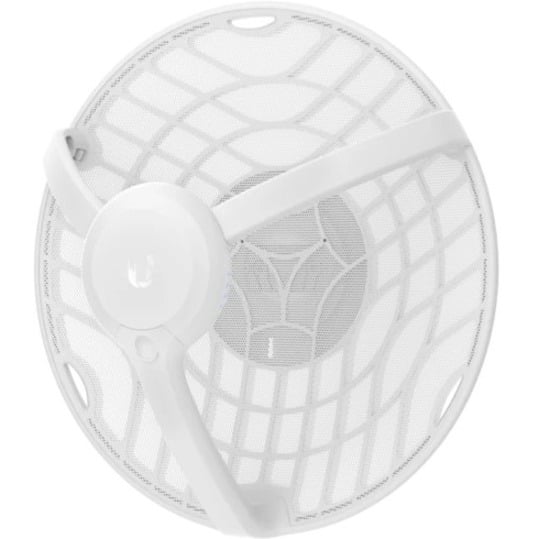

- airMAX GigaBeam Long-Range 60/5 GHz Radio
- Pole Mount
Additional Information:
- Enclosure: Aluminum, UV-stabilized Polycarbonate
- Antenna Gain:
- 5 Ghz: 11 dBi
- 60 Ghz: 38 dBi
- Max. Power Consumption: 11W
- Power Method: Passive PoE, Pins 4, 5+ and 7, 8-
- Power Supply: 24VDC, 0.5A Gigabit PoE Adapter (Included)
- Voltage Range: +22 to +26VDC
- LEDs: Power/Ethernet/5G/60G
- Wind Loading:
- 56 N @ 200 km/h
- <(12.6 lbf @ 125 mph)
- Wind Survivability:
- 200 km/h
- (125 mph)
- ESD/EMP Protection: ± 24kV Contact/Air
- Operating Temperature: -40 to 60° C (-40 to 140° F)
- Operating Humidity: 5 to 95% Noncondensing
- Certifications: FCC, IC, CE
- Max. Conducted TX Power
- 5/60 GHz Combined: 25 dBm
- Channel Bandwidth
- 60 Ghz: 2160 Mhz
- 5 Ghz: 20/40/80 Mhz
- US/CA
- U-NII-1: 5150 - 5250
- U-NII-2A: 5250 - 5350
- U-NII-2C: 5470 - 5725
- U-NII-3: 5725 - 5850, 57,000 - 66,000
- Worldwide:
- 5180 - 5875
- 57,000
- Worldwide: 2412 - 2472
- US/CA: 2412 - 2462
Features:
Wi-Fi
Item Numbers
GTIN:
0810010070135
UPC:
810010070135
EAN:
0810010070135
UNSPSC:
43222628
