Ubiquiti Networks AF11-COMPLETE-HB Data Networking

Part Number: AF11-COMPLETE-HB
Model: Parts
Add to My Shopping List Add to Compare
$1,576.40
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Frequency Band
5 GHz
Wireless Transmission Speed
1.20 Gbit/s
MIMO Technology
Yes
Ethernet Technology
Gigabit Ethernet

Product Description:

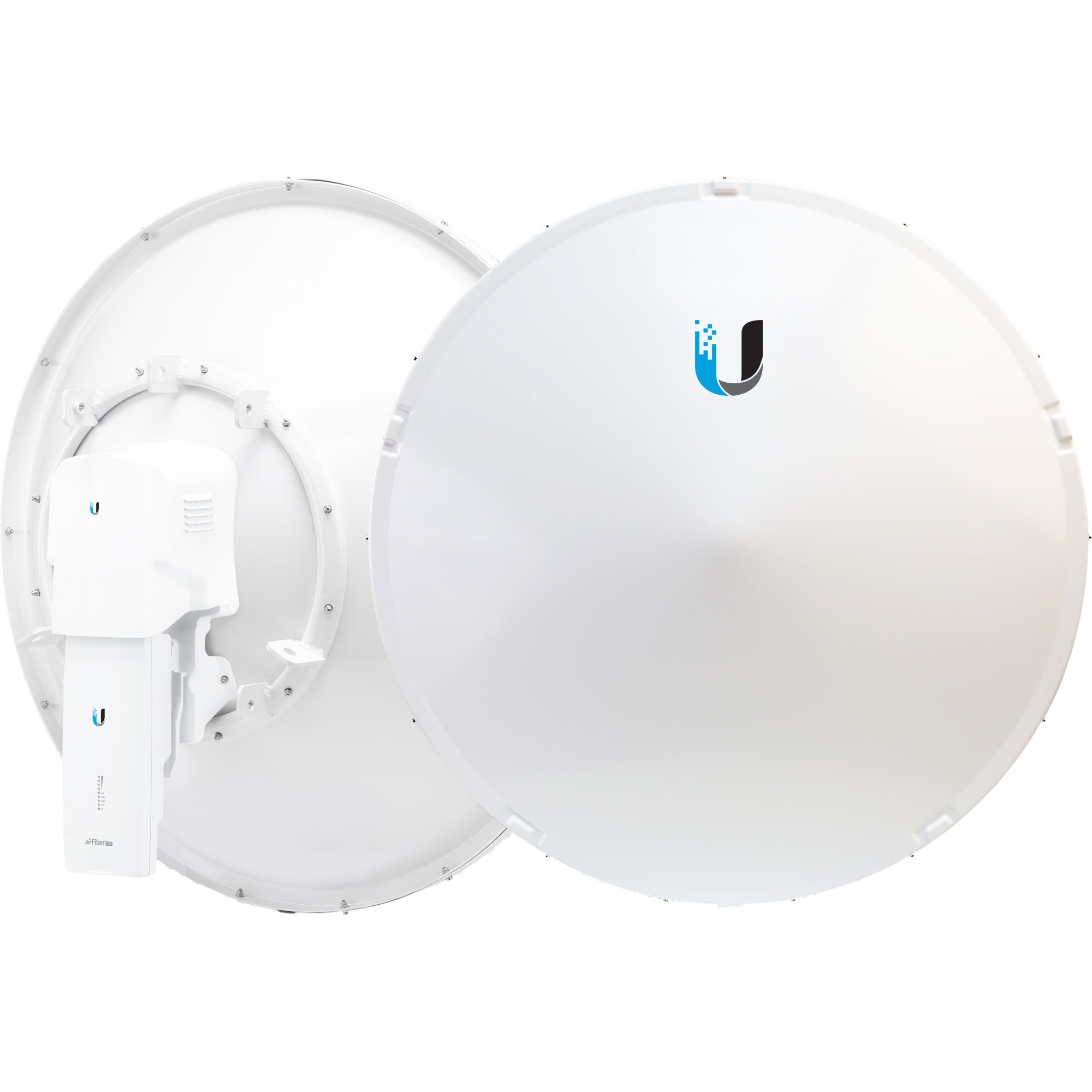

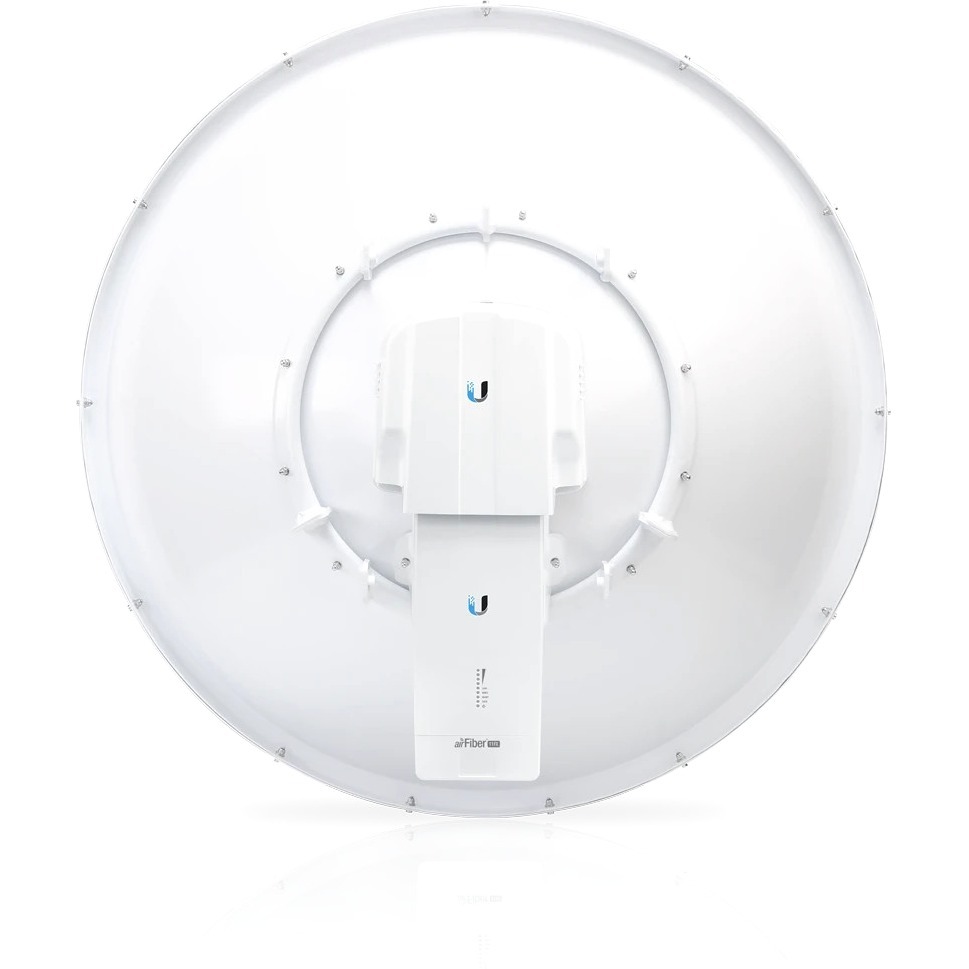

  Ubiquiti airFiber 11 AF-11 1.20 Gbit/s Wireless Access Point - 5 GHz - MIMO Technology - 1 x Network (RJ-45) - Gigabit Ethernet.
Explore all Ubiquiti Networks Parts Accessories
Add to Quote
Ubiquiti Networks AF11-COMPLETE-HB Data Networking
Ubiquiti Networks AF11-COMPLETE-HB Data Networking
Ubiquiti Networks AF11-COMPLETE-HB Data Networking
Ubiquiti Networks AF11-COMPLETE-HB Data Networking Ubiquiti Networks AF11-COMPLETE-HB Data Networking Ubiquiti Networks AF11-COMPLETE-HB Data Networking
Technical Information
Frequency Band:
5 GHz
Wireless Transmission Speed:
1.20 Gbit/s
MIMO Technology:
Yes
Interfaces/Ports
Ethernet Technology:
Gigabit Ethernet
Number of Network (RJ-45) Ports:
1
PoE PD Port:
Yes
Management Port:
Yes
Physical Characteristics
Height:
12.9"
Width:
4.4"
Depth:
3.4"
Weight (Approximate):
4.98 lb
Miscellaneous
Package Contents:
  • airFiber 11 AF-11 Satellite Radio
  • 50V, 1.2A PoE Gigabit Adapter
  • 1 x High-band Duplexer
Additional Information:
  • Networking Interface:
    • Data: 1 x 10/100/1000 Ethernet Port
    • Management: 1 x 10/100 Ethernet Port
  • Mounting: AF-11G35 Mount Compatible
  • Supported Voltage Range: 38-56VDC
  • Power Supply: UniFi PoE Switch
  • Operating Temperature: -40 to 55° C (-40 to 131° F)
  • RF Connectors: 4 x SMA Weatherproof, Two per Chain: TX 0, RX 0 (Chain 0) and TX 1, RX 1 (Chain 1) (2) N-Type Waterproof, One per Duplexer

SYSTEM

  • Processor: INVICTUS™ 2 IC
  • Maximum Throughput: 1.2+ Gbps
  • Encryption: 128-bit AES
  • OS: airOS F
  • Wireless Modes: SISO/MIMO
  • Operating Frequency: 10.7-11.7 GHz (Depends on Regulatory Region)
  • Max. Conducted TX Power: 30 dBm (Depends on Regulatory Region)
  • Frequency Accuracy: ± 1 ppm
  • Channel Bandwidth:
    • 3.5/5/7/10/14/20/28/30/40/50/56 MHz
    • Selectable
    • Programmable Uplink and Downlink Duty Cycles
Environmentally Friendly:
Yes
Environmental Compliance:
  • Restriction of Hazardous Substances (RoHS)
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0817882026932
UPC: 817882026932
EAN: 0817882026932
UNSPSC: 43222631
The Ubiquiti Networks AF11-COMPLETE-HB Data Networking is also known as UBI-AF11COMPLETEHB
