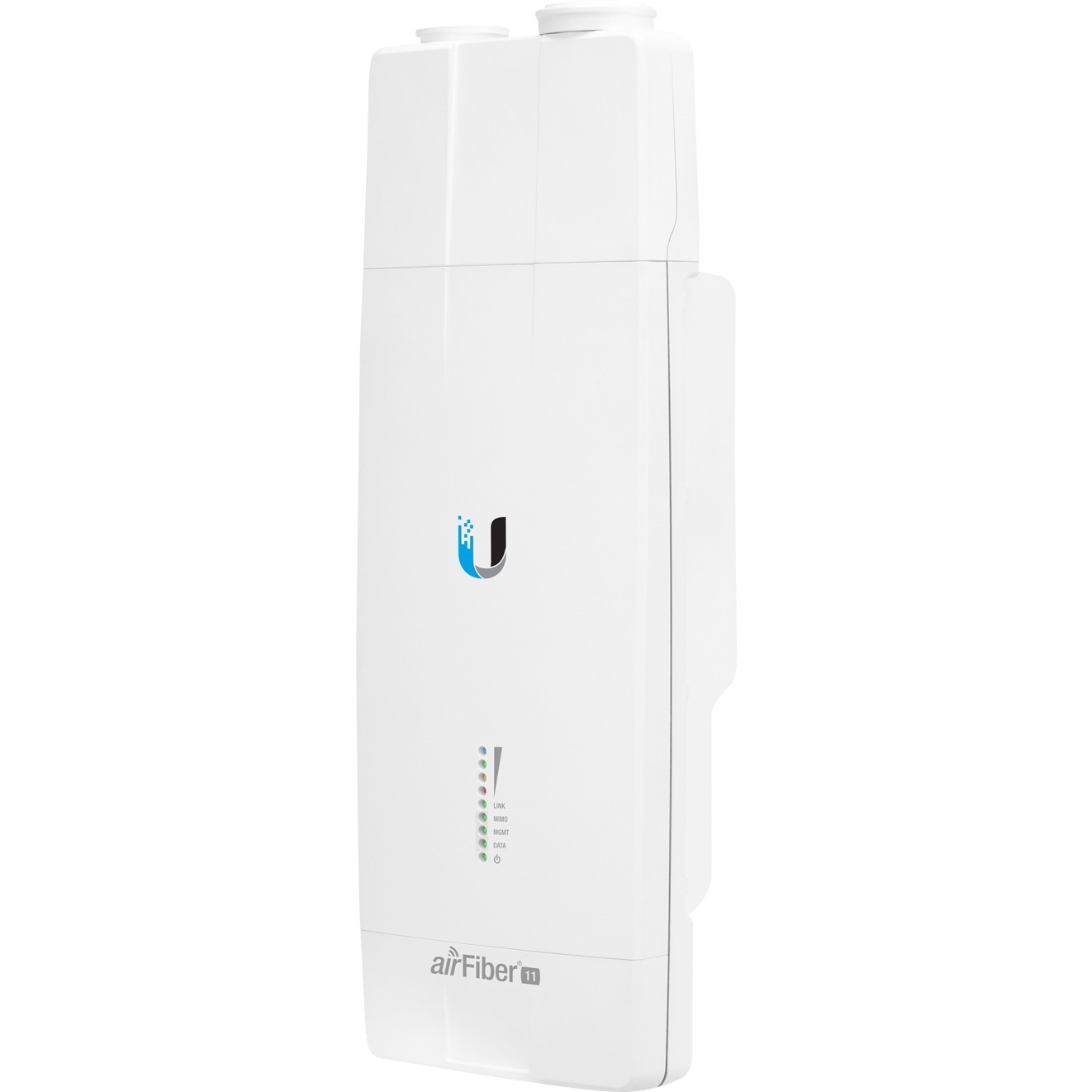

Ubiquiti Networks AF-11 Data Networking

Part Number: AF-11
Model: Parts
Add to My Shopping List Add to Compare
$1,055.22
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Network (RJ-45)
Yes
Number of Network (RJ-45) Ports
1
Ethernet Technology
Gigabit Ethernet
Height
12.9"

Product Description:

  1.2Gbps+ Ultra low-latency, Frequency Full-Duplex Licensed 11GHz Radio System.
Explore all Ubiquiti Networks Parts Accessories
Add to Quote
Ubiquiti Networks AF-11 Data Networking
Ubiquiti Networks AF-11 Data Networking
Interfaces/Ports
Network (RJ-45):
Yes
Number of Network (RJ-45) Ports:
1
Network & Communication
Ethernet Technology:
Gigabit Ethernet
Physical Characteristics
Height:
12.9"
Width:
4.4"
Depth:
3.4"
Weight (Approximate):
5 lb
Miscellaneous
Package Contents:
  • Licensed Backhaul Radio
  • 50VDC, 1.2A PoE Gigabit Adapter
  • Pole Mount
Additional Information:
  • RF Connectors: 4 x SMA Weatherproof: TX 0, RX 0 (Chain 0) and TX 1, RX 1 (Chain 1) (2) N-Type Waterproof, One per Duplexer
  • Power Method: Passive Power over Ethernet Pins 1, 2, 4, 5 (+) and Pins 7, 8, 3, 6 (-) or DC Power Block
  • Max. Power Consumption: 36W
  • Supported Voltage Range: 38-56VDC
  • Automatic Transmit Power Control (ATPC): Yes
  • Operating Temperature: -40 to 55° C (-40 to 131° F)
  • Management Port: 1 x 10/100 Ethernet Port
  • Processor: INVICTUS 2 IC
  • Maximum Throughput: 1.2+ Gbps
  • Maximum Range: 300+ km
  • Encryption: 128-bit AES
  • OS: airOS® F
  • Wireless Modes: SISO/MIMO
  • MTU (Maximum Transmission Unit): Up to 9600
  • Frequency Range: 10.7-11.7 GHz
  • Max. Conducted TX Power: 30 dBm (Dependent on Regulatory Region)
  • Frequency Accuracy: ± 2.0 ppm
  • Channel Bandwidth: 3.5/5/7/10/14/20/28/30/40/50/56 MHz Selectable
Certifications & Standards:
  • CE
  • FCC
  • IC
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0810010071613
UPC: 810010071613
EAN: 0810010071613
UNSPSC: 43222628
The Ubiquiti Networks AF-11 Data Networking is also known as UBI-AF11
