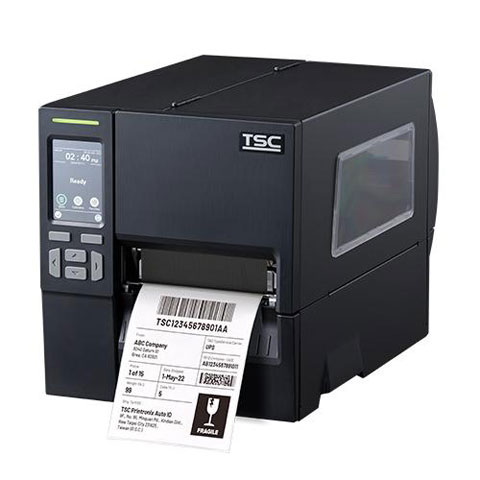

TSC MB241T – Barcode Label Printer – 203 dpi – Thermal Transfer
Full specifications (PDF)
TSC MB241T Barcode Label Printer Model Overview
Key features:
- Compact & Rugged Design: 39% lighter and 30% smaller than previous models, perfect for limited spaces.
- Versatile Connectivity Options: Standard USB, Ethernet, and optional wireless interfaces.
- User-Friendly Interface: 3.5-inch intuitive color touch display for quick access to settings.
- One-Step Setup: Easily clone configurations using 1D/2D barcodes.
Specifications:
- Model: MB240T Series
- Print Resolution: 203 DPI (8 dots/mm), optional 300 DPI (12 dots/mm)
- Max Print Speed: Up to 254 mm (10") per second
- Physical Dimensions: 248 mm (W) x 274 mm (H) x 436 mm (D)
- Weight: 9.2 kg (20.28 lbs)
- Memory: 128 MB Flash and 64 MB SDRAM
- Label Roll Capacity: 203.2 mm (8") O.D.
- Ribbon Length: 450 m long
- Operating Temperature: 5°C to 40°C
Frequently Asked Questions
What printing speeds and resolutions does the TSC MB241T offer?
The TSC MB241T delivers industrial-grade performance with print speeds up to 254 mm (10 inches) per second and a resolution of 8 dots/mm (203 DPI). This combination makes it ideal for high-volume warehouse and logistics operations where speed and label quality are critical. We offer the MB241T as part of our thermal transfer printer lineup for demanding AIDC applications.
Is the TSC MB241T suitable for both thermal transfer and direct thermal printing?
Yes, the TSC MB241T supports both thermal transfer and direct thermal printing methods, giving you flexibility in media selection and cost management. This dual-capability allows you to choose between ribbon-based printing for durability or direct thermal for cost-effective short-run labels. Contact us today to discuss which printing method best fits your warehouse or logistics needs.
What connectivity options are available on the MB241T?
The MB241T includes multiple connectivity interfaces: RS-232, USB 2.0, Internal Ethernet (10/100 Mbps), USB host for scanners or keyboards, and GPIO options. This comprehensive connectivity ensures seamless integration with your existing warehouse management systems, barcode scanners, and network infrastructure. Visit barcodesinc.com to explore integration options for your facility.
What is the maximum label size and roll capacity for the TSC MB241T?
The MB241T accommodates label rolls up to 203.2 mm (8 inches) outer diameter and supports a maximum print width of 108 mm (4.25 inches) with a maximum print length of 25,400 mm (1000 inches). This makes it suitable for everything from small product labels to long-format shipping and compliance labels. We offer compatible media and ribbon supplies to maximize your printing efficiency.
How durable is the TSC MB241T for industrial warehouse environments?
The MB241T features a die-cast metal print mechanism with a metal cover and large clear media view window, engineered for industrial-duty performance in demanding warehouse and logistics settings. It weighs 9.2 kg (20.28 lbs) and is built to handle continuous packing, order fulfillment, and shipping/receiving operations. Available from us with full technical support for your warehouse operations.
What memory and processing power does the MB241T have?
The MB241T is equipped with a 32-bit RISC CPU, 128 MB Flash memory, and 128 MB SDRAM, providing reliable performance for storing fonts, graphics, and label templates. This processing capability ensures smooth operation in high-throughput warehouse environments with complex label designs and barcode formatting. Contact us today for guidance on optimizing label templates for your specific application.
