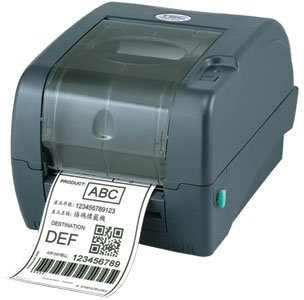

TSC TTP-345 – Barcode Label Printer – 300 dpi
Part Number:
99-127A027-00HC
Model:
TTP-345
Full specifications (PDF)
TSC TTP-345 Barcode Label Printer Model Overview
The TTP-247 Series Desktop Thermal Transfer Bar Code Printer revolutionizes efficiency and reliability in label printing, tailored for various industries including business, shipping, and healthcare. With a robust print speed of up to 177.8 mm (7 inches) per second, it ensures swift production of high-quality labels at a 300 DPI resolution. Featuring user-friendly clamshell design for easy media loading and versatile connectivity options including USB, serial, and Ethernet, this printer is designed to streamline operations and adapt to your specific label printing needs.
Key features
Specifications
Key features
- Fast Print Speed: Up to 177.8 mm (7 inches) per second
- User-Friendly Design: Clamshell design for easy access
- Memory: 4 MB Flash and 8 MB SDRAM
- Versatile Connectivity: Parallel, USB 2.0, and optional Ethernet
- Label Capacity: Up to 214 mm (8.4 inches) OD
- Optional Modules: Peel-off, cutter, Bluetooth, keyboard, and scanner
Specifications
- Model: TTP-247
- Resolution: 300 DPI (12 dots/mm)
- Print Method: Thermal Transfer & Direct Thermal
- Max Print Speed: 177.8 mm (7 inches)/second
- Max Print Width: 108 mm (4.25 inches)
- Label Roll Capacity: Up to 127 mm (5 inches) OD
- Dimensions: 213 mm (W) x 188 mm (H) x 314 mm (D)
- Weight: 2.8 kg (6.17 lbs)
- Operating Conditions: 5-40°C, 25-85% non-condensing
- Warranty: 2 years on printer
Brand
TSC
Model
TTP-345
Max Print Width
4.5 inch
Printer Type
Desktop
Print Resolution
300 dpi
Interface Options
Parallel, Serial (RS-232), USB
Questions? Get help from a
Printer Expert!
Printer Expert!
The TSC 99-127A027-00HC Barcode Label Printer is also known as
TSC-99127A02700HC
or 99-127A027-00HC.
