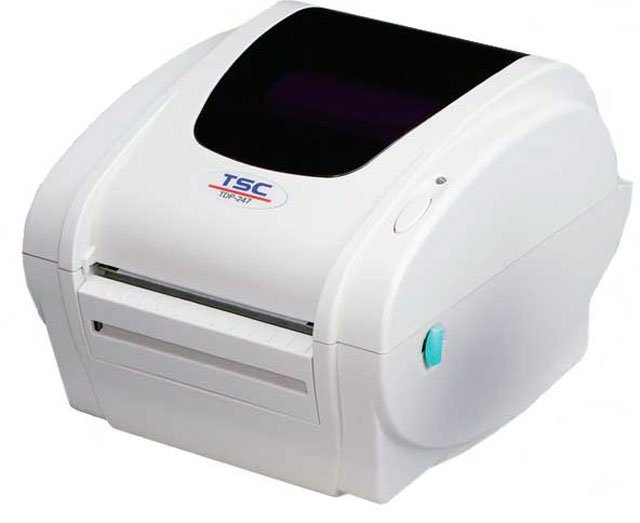

TSC 99-126A010-41LF Barcode Printer


0.0

(No reviews)

Be the first to

Write a Review
TSC TDP-247 - Direct thermal, 203 dpi, 4.25" wide, USB/Parallel/Serial/Ethernet Interfaces. Includes USB cable.
$413.00
In Stock:
Ships Same Day
Your satisfaction is guaranteed!
We want to make sure you are completely satisfied with your purchase. Customers must return their product within 30 days of shipment to receive a full credit less a 15% restocking fee. Returns must be presented in new condition with all of the original packaging.
Share:
Best-in-class price-performance in a compact platform.

The new TDP-247 direct thermal label printers offers best-in-class speed and high-resolution capabilities, along with a rugged, reliable design that has become the hallmark of the TSC printer family. The TDP-247 is ideally suited for product marking, shipping, retail and other labeling applications. The TDP-247 can print four-inch-wide 203 dpi labels at speeds up to 7 ips. The TDP-247 can come standard with USB, parallel and serial connections. Other options include an internal Ethernet interface for easy network integration, label cutters, and a keyboard for printing labels in standalone or down-time situations. Because of their compact design, the TDP-247 printers are ideally suited for a variety of applications, fitting easily into cramped work spaces that are often too small for larger printers. Both models feature a user-friendly clamshell design that allows users to simply open the cover and drop labels into a center-biased storage bay. Top-of-form sensing by gap, black mark, or notch is standard and completely adjustable from side to side.

Technical Information

  • Maximum Mono Print Speed: 5 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.25"
  • Recommended Use: Label Print
  • Barcode Symbology Supported:
    • Code 39
    • Code 93
    • Code 128
    • UCC
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • Codabar
    • Interleaved 2 of 5
    • EAN-8
    • EAN-13
    • EAN 128
    • UPC-A
    • UPC-E
    • EAN With 2 or 5 Digit Extension
    • UPC 2 and 5 Digit Addendums
    • MSI
    • Plessey
    • POSTNET
    • RSS-14
    • GS1 DataBar
    • Code 11
    • China Post
    • PDF-417
    • Maxi Code
    • Data Matrix
    • QR Code
    • Aztec Code
    • RSS Stacked

General Information

  • Product Type: Direct Thermal Printer
  • Product Series: TDP
  • Brand Name: TSC Auto ID
  • Manufacturer: TSC Auto ID Technology Co., Ltd
  • Product Model: TDP-247
  • Product Name: TDP-247 Label Printer

Physical Characteristics

  • Height: 6.5"
  • Width: 7.9"
  • Depth: 9.5"
  • Form Factor: Desktop
  • Color: White

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Other

  • Platform Supported: PC
  • Package Contents:
    • TDP-247 Label Printer
    • Software and Driver CD
    • Quick Start Guide
    • USB Cable
    • External Universal Switching Power Supply
    • Power Cord
    • Label Spindle
    • 2 x Fixing Tab
    • 2 x 1.5" Core Adapter
    • TDP-247 Label Printer
    • Software and Driver CD
    • Quick Start Guide
    • USB Cable
    • External Universal Switching Power Supply
    • Power Cord
    • Label Spindle
    • 2 x Fixing Tab
    • 2 x 1.5" Core Adapter
  • Certifications & Standards:
    • FCC Class B
    • CE Class B
    • C-Tick Class B
    • UL
    • CUL
    • TUV/Safety
    • CCC

Media Types & Handling

  • Maximum Label Width: 4.40"
  • Maximum Label Length: 90"
  • Media Type:
    • Continuous Label
    • Die-cut Label
    • Black Mark
    • Fanfold
    • Notch
  • Media Thickness: 190 mil
  • Media Sensor:
    • Cover Open Sensor
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Label Core Size: 3"
  • Maximum Roll Diameter: 8.40"

Memory

  • Standard Memory: 8 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: Secure Digital
  • Memory Technology: SDRAM
  • Flash Memory: 4 MB

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Power Source: AC Supply

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Warranty

  • Limited Warranty: 2 Year

Fonts & Emulation

  • Language Emulation: TSPL-EZ

Full specifications (PDF)

Full specifications (PDF)

Brand TSC
Model TDP-247
Interface Options Serial, Parallel, Ethernet, USB
Maximum Print Width 4.25
Printer Type Desktop
Print Method Direct Thermal
Label Core 1 inch
Max Roll Outer Diameter 5
Print Speed 7
Print Resolution 203 dpi
Max Label Width 4.40
Printer Mobility Not Mobile
