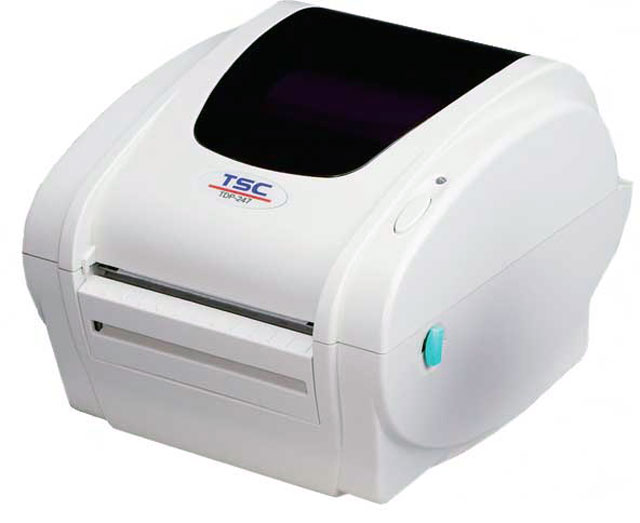

TSC TDP-247 – Barcode Label Printer – 203 dpi – Cutter
Part Number:
99-126A010-11HC
Model:
TDP-247
Full specifications (PDF)
TSC TDP-247 Barcode Label Printer Model Overview
The TSC TDP-247 Series Desktop Direct Thermal Bar Code Printer is the ideal solution for businesses seeking fast, high-quality printing in a compact design. With print speeds of up to 7 inches per second and resolutions of 203 DPI and 300 DPI, it caters to various applications—from small office mailing and inventory management to retail point-of-sale needs. The printer’s easy media loading and robust double-walled clamshell design enhance durability, making it suitable for demanding environments.
Key Features:
Specifications:
Key Features:
- High quality double-walled clamshell design
- Print speeds up to 177.8 mm (7") per second
- Easy media loading
- Label capacity up to 214 mm (8.4") OD
- Optional Ethernet, Bluetooth, cutter, standalone keyboard
- Energy STAR® qualified
Specifications:
- Model: TDP-247
- Resolution: 203 DPI (8 dots/mm)
- Max. print speed: 178 mm (7")/second
- Max. print width: 108 mm (4.25")
- Max. print length: 2,286 mm (90")
- Dimensions: 200 mm (W) x 164 mm (H) x 240 mm (D)
- Weight: 1.9 kg (4.19 lbs)
- Memory: 4 MB Flash, 8 MB SDRAM
- Connectivity: USB 2.0, RS-232, Centronics, optional Ethernet
- Power supply: DC 24V, 3.75A
- Operating conditions: 5 to 40°C, 25-85% non-condensing
- Warranty: 2 years
Brand
TSC
Model
TDP-247
Printer Options
Cutter
Max Print Width
4.5 inch
Printer Type
Desktop
Print Resolution
203 dpi
Interface Options
Parallel, Serial (RS-232), USB
