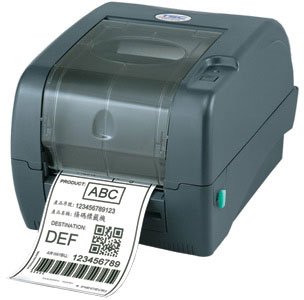

TSC TTP-247 – Barcode Label Printer – 203 dpi – Thermal Transfer
Full specifications (PDF)
TSC TTP-247 Barcode Label Printer Model Overview
The TTP-247 Series Desktop Thermal Transfer Bar Code Printer sets a new standard for efficiency and value in the printing industry. With a remarkable print speed of up to 177.8 mm (7") per second, it combines high performance and durability for all your business needs. Designed with a user-friendly clamshell structure, ample memory capacity for fast processing, and various connectivity options including USB, Ethernet, and Bluetooth, this printer is ideal for a wide array of applications such as asset tracking, shipping/receiving, and compliance labeling. Upgrade your labeling experience with exceptional quality and speed.
Key features:
- Print Speed: Up to 177.8 mm (7") per second
- Memory: 4 MB Flash memory and 8 MB SDRAM, expandable via SD card up to 4 GB
- Design: User-friendly clamshell design for easy media loading
- Interconnectivity: Standard interfaces include parallel, serial, and USB 2.0; optional Ethernet and Bluetooth
- Labeling Capacity: Supports labels up to 214 mm (8.4") OD and ribbon capacity of 300 m (984')
- Versatile Printing: Supports both thermal transfer and direct thermal printing methods
Specifications:
- Resolution: 12 dots/mm (300 DPI)
- Max Print Width: 108 mm (4.25")
- Print Length: Up to 2286 mm (90")
- Physical Dimensions: 213 mm (W) x 188 mm (H) x 314 mm (D)
- Weight: 2.8 kg (6.17 lbs)
- Media Types: Continuous, die-cut, black mark, fan-fold
- Operating Conditions: 5-40°C, 25-85% non-condensing
- Power Supply: AC 100-240V, 2.5A, 50-60Hz, Output: DC 24V, 3.75A
- Warranty: 2 years
