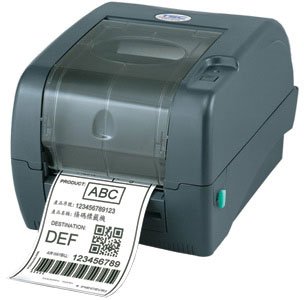

TSC 99-125A013-00LF Barcode Label Printer

TSC TTP-247 - 203 dpi, Thermal transfer, 7 ips, 8MB DRAM, 4MB FLASH, USB, Serial, Parallel.

Full specifications (PDF)

Industry-leading performance at a budget price
The new TTP-247 thermal transfer desktop barcode printer series delivers more performance for the price than any other printer in its class. Based on the design of its best-selling predecessor, the TTP-245 Plus, the TTP-247 runs at an impressive 7 ips, printing up to 4 inches wide at 203 dpi resolution. By using two motors instead of the usual one, TTP-247 series printers operate at lower torque, reducing noise, decreasing wear and tear, and extending printer life. The platform"s user-friendly design makes it easy for operators to load and unload ribbons, and its 300-meter capacity is more than four times the industry-standard length for desktop printers.

Technical Information

  • Maximum Mono Print Speed: 7 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.25"
  • Recommended Use: Label Print
  • Features:
    • Real Time Clock
    • External Unwinder
  • Barcode Symbology Supported:
    • Code 93
    • Code 128
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • UCC
    • Codabar
    • Interleaved 2 of 5
    • EAN-8
    • EAN-13
    • EAN 128
    • UPC-A
    • UPC-E
    • UPC -2 Digits Add-on
    • UPC-5 Digits Add-on
    • MSI
    • Plessey
    • POSTNET
    • RSS Stacked
    • GS1 DataBar
    • Code 11
    • PDF-417
    • QR Code
    • Aztec Code
    • Data Matrix
    • Maxi Code

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: TTP
  • Brand Name: TSC Auto ID
  • Manufacturer: TSC Auto ID Technology Co., Ltd
  • Product Model: TTP-247
  • Product Name: TTP-247 Label Printer

Physical Characteristics

  • Height: 7.4"
  • Width: 8.4"
  • Depth: 12.4"
  • Form Factor: Desktop

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Other

  • Platform Supported: PC
  • Package Contents:
    • TTP-247 Label Printer
    • Software and Documentation CD
    • Quick Start Guide
    • USB Cable
    • External Universal Switching Power Supply
    • Power Cord
    • Label Spindle
    • 2 x Fixing Tab
    • 2 x 1.5" Core Adapter
    • 2 x Ribbon spindle
    • Ribbon Rewind Spindle Paper Core
    • TTP-247 Label Printer
    • Software and Documentation CD
    • Quick Start Guide
    • USB Cable
    • External Universal Switching Power Supply
    • Power Cord
    • Label Spindle
    • 2 x Fixing Tab
    • 2 x 1.5" Core Adapter
    • 2 x Ribbon spindle
    • Ribbon Rewind Spindle Paper Core
  • Certifications & Standards:
    • FCC Class B
    • CE Class B
    • CCC
    • C-Tick Class B
    • UL
    • CUL
    • TUV/Safety

Media Types & Handling

  • Maximum Label Width: 4.40"
  • Maximum Label Length: 90"
  • Media Type:
    • Continuous Label
    • Die-cut Label
    • Black Mark
    • Fanfold
    • Notch
  • Media Thickness: 7.48 mil
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
    • Out Of Ribbon Sensor
    • Cover Open Sensor
  • Label Core Size: 3"
  • Maximum Roll Diameter: 8.40"

Memory

  • Standard Memory: 8 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: Secure Digital High Capacity (SDHC)
  • Memory Technology: SDRAM
  • Flash Memory: 4 MB

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Power Source: AC Supply

Warranty

  • Limited Warranty: 2 Year

Fonts & Emulation

  • Language Emulation: TSPL-EZ
Protect Your Product

Full specifications (PDF)

Brand TSC
Model TTP-247
Max Roll Outer Diameter 5
Print Speed 7
Print Method Thermal Transfer
Interface Options Serial, Parallel, USB
Maximum Print Width 4.25
Printer Type Desktop
Label Core 1 inch
Print Resolution 203 dpi
Max Label Width 4.40
Printer Mobility Not Mobile
Ribbon Core 1

Recommended Accessories for Model: TSC TTP-247 Barcode Label Printer

Category

  • Accessories (14)
Recommended Accessories for Model: TSC TTP-247 Barcode Label Printer

Accessories

TSC (98-0260044-10LF)
Tdp 247 Tph Module Assembly For 203 dpi
In Stock: Ships Same Day
$158.90
Why don't we show the price?

TSC (98-0250016-20LF)
Black Mark Sensor Assembly for TTP-247 printer.
TSC (98-0250154-1ALF)
Main Board Assembly for TTP-247 printer.
TSC (98-0250154-9ALF)
ACCESORY, TTP247/343/345 MAIN BOARD ASSY
TSC (62-0590090-00LF)
TTP247/TC POWER SUPPLY
TSC (62-0250090-20LF)
Ttp-247, Power Adapter
TSC (65-0250004-20LF)
Ttp-247, Dc Motor
TSC (72-0250100-00LF)
TTP-247 Power cord. US
TSC (98-0500033-00LF)
1" label Spindle Assembly, TTP-247.
TSC (98-0250020-10LF)
Ribbon End Sensor Assembly
TSC (98-0250064-00LF)
External Label Roll Mount Assembly, With 3" Core And Spindle, For TSC TTP-245.
Ships in 3-5 Days
$22.10
+ Add to Quote
TSC (65-0250007-00LF)
TTP247 DC MOTOR
Ships in 3-5 Days
$26.20
+ Add to Quote
TSC TTP-247 Accessories (98-0250131-00LF)
TDP-247, TDP-345, TTP-247, TTP-345 Cutter (Knife type) Partial Cut
Ships in 3-5 Days
$140.60
+ Add to Quote
TSC (62-0510200-00LF)
POWER SUPPLY MX240
Ships in 3-5 Days
$143.50
Why don't we show the price?

Desktop Thermal Transfer, Direct Thermal Labels, White Paper

White Paper Thermal Transfer Labels, Desktop (Ribbon Required)

Sku #
Size ( W x L )
Labels / Roll
Rolls / Case
Price Per ( ROLL )
Price Per ( CASE )
AiRT-2-1-1375-1
2.00 x 1.00
1375
12
$12.84
$92.40
AiRT-225-125-1135-1
2.25 x 1.25
1135
12
$13.83
$105.90
AiRT-3-1-1375-1
3.00 x 1.00
1375
12
$13.73
$139.03
AiRT-3-2-735-1
3.00 x 2.00
735
12
$12.78
$160.08
AiRT-35-1-1375-1
3.50 x 1.00
1375
12
$12.44
$152.21
AiRT-4-1-1375-1
4.00 x 1.00
1375
12
$18.44
$167.89
AiRT-4-2-735-1
4.00 x 2.00
735
12
$11.93
$133.62
AiRT-4-3-500-1
4.00 x 3.00
500
12
$12.13
$137.40
AiRT-4-6-460-1
4.00 x 6.00
460
12
$19.92
$171.67


White Paper Direct Thermal Labels, Desktop

Sku #
Size ( W x L )
Labels / Roll
Rolls / Case
Price Per ( ROLL )
Price Per ( CASE )
AiRD-2-1-1375-1
2.00 x 1.00
1375
12
$15.14
$97.35
AiRD-225-125-1135-1
2.25 x 1.25
1135
12
$12.12
$164.80
AiRD-3-1-1375-1
3.00 x 1.00
1375
12
$19.34
$179.85
AiRD-3-2-735-1
3.00 x 2.00
735
12
$23.37
$234.17
AiRD-4-1-1375-1
4.00 x 1.00
1375
12
$23.57
$237.19
ATD-4-2-1240-1
4.00 x 2.00
1240
6
$26.00
$84.00
AiRD-4-3-500-1
4.00 x 3.00
500
12
$20.22
$191.55
ATD-4-4-640-1
4.00 x 4.00
640
8
$23.01
$88.00
ATD-4-6-475-1
4.00 x 6.00
475
12
$27.38
$295.37

Not seeing your exact size? Have Questions?

Our label experts are standing by waiting to assist. Call or chat with us now!

Recommended Ribbons for Model: TSC TTP-247 Barcode Label Printer
Zebra 5586 Wax-Resin (05586GS11007-R)
4.33" x 244' Black Wax-Resin Ribbon, Compatible With Desktop Printers And Polypropylene Labels, rolls/case: 1, Core Size: 0.5", single roll. Available As A Case (05586Gs11007)
Ships within 3 to 5 business days
$14.71
+ Add to Quote
Zebra 2000 Standard Wax (02000BK11030-R)
4.33" x 984' Black Wax Ribbon. Compatible With Industrial Printers. Single Ribbon. Used With Paper labels. Also Available As A Case (Part# 02000BK11030).
Ships within 3 to 5 business days
$17.22
+ Add to Quote
Recommended Printheads for Model: TSC TTP-247 Barcode Label Printer

The TSC 99-125A013-00LF is also known as TSC-99125A01300LF or 99125A01300LF .
