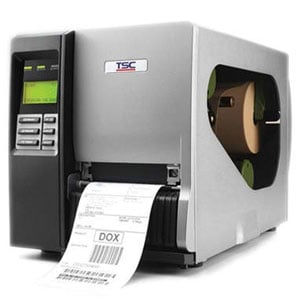

TSC 99-047A004-00LF Barcode Label Printer

TSC TTP-346M - Printer, Thermal transfer, 300 dpi, 8 IPS, 4.09 inch Wide, 8.2 outer diameter, Real-time clock, ID, USB, Includes Peel Off Kit (Peel Off Sensor and Rewinders), Internal Internet.

Full specifications (PDF)

High resolution and durability
Offering 300 dpi resolution, the TSC TTP-346M die-cast aluminum label printer is designed to meet the most demanding bar-coding and identification needs. With its high resolution and durability, the TTP-346M is ideal for mission-critical printing applications either on-demand or batch. The TTP-346M operates at print speeds up to 8 ips. Standard features include internal Ethernet, USB 2.0 and PS/2 keyboard connectivity, 32 MB SDRAM, 8 MB Flash memory, and an SD memory-card slot for adding up to 4 GB of additional Flash storage. The TTP-346M accommodates ribbons 600 meters in length, along with a full 8.2-inch outer diameter media roll. An optional peel-off kit includes an internal rewinder and a label peel-and-present sensor.

Technical Information

  • Maximum Mono Print Speed: 8 in/s
  • Maximum Print Resolution: 300 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.09"
  • Recommended Use: Label Print
  • Features: Real Time Clock
  • Barcode Symbology Supported:
    • Code 39
    • Code 93
    • Code 128 UCC
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • Codabar
    • Interleaved 2 of 5
    • EAN-8
    • EAN-13
    • EAN 128
    • UPC-A
    • UPC-E
    • UPC -2 Digits Add-on
    • UPC-5 Digits Add-on
    • MSI
    • Plessey
    • POSTNET
    • China Post
    • GS1 DataBar
    • LOGMARS
    • PDF-417
    • Maxi Code
    • Data Matrix
    • QR Code
    • Aztec Code

General Information

  • Product Type: Thermal Transfer Printer
  • Brand Name: TSC Auto ID
  • Manufacturer: TSC Auto ID Technology Co., Ltd
  • Product Model: TTP-346M Pro
  • Product Name: TTP-346M Pro Label Printer

Physical Characteristics

  • Height: 12.1"
  • Width: 10.6"
  • Depth: 19.9"
  • Form Factor: Desktop
  • Weight (Approximate): 33.07 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • WEEE
  • Platform Supported: PC
  • Package Contents:
    • TTP-346M Pro Label Printer
    • Windows Labeling Software CD Disk
    • Quick Start Guide
    • USB Cable
    • Power Cord
    • TTP-346M Pro Label Printer
    • Windows Labeling Software CD Disk
    • Quick Start Guide
    • USB Cable
    • Power Cord
  • Certifications & Standards:
    • FCC Class A
    • CE Class A
    • C-Tick Class A
    • UL
    • CUL
    • TÜV/Safety
    • CCC
    • CB

Media Types & Handling

  • Maximum Label Width: 4.60"
  • Maximum Label Length: 76"
  • Media Type:
    • Label
    • Ticket
    • Continuous Label
    • Die-cut Label
    • Tag
    • Notched
    • Black Mark
    • Perforated Label
  • Media Thickness: 11.81 mil
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
    • Cover Open Sensor
    • Out Of Ribbon Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8.20"

Memory

  • Standard Memory: 32 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: Secure Digital
  • Memory Technology: DRAM
  • Flash Memory: 8 MB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Power Description

  • Input Voltage: 24 V DC
  • Power Source: Power Adapter

Warranty

  • Limited Warranty: 2 Year

Display & Graphics

  • Display Screen Type: LCD

Fonts & Emulation

  • Language Emulation: TSPL-EZ
Protect Your Product

Full specifications (PDF)

Brand TSC
Model TTP-346M
Max Roll Outer Diameter 8
Maximum Print Width 4.09
Interface Options USB, Parallel, Serial, Ethernet
Printer Type Industrial
Print Speed 8
Max Label Width 4.60
Print Method Thermal Transfer
Label Core 3 inches
Print Resolution 300 dpi
Included Features SD Flash Memory Slot
Printer Mobility Not Mobile
Ribbon Core 1

Industrial Thermal Transfer, Direct Thermal Labels, White Paper

White Paper Thermal Transfer Labels, Industrial (Ribbon Required)

Sku #
Size ( W x L )
Labels / Roll
Rolls / Case
Price Per ( ROLL )
Price Per ( CASE )
AiRT-1-05-19200-3
1.00 x 0.50
19200
8
$60.73
$491.52
AiRT-1-1-5500-3
1.00 x 1.00
5500
8
$16.06
$158.40
AiRT-125-05-9600-3
1.25 x 0.50
9600
8
$37.44
$282.24
AiRT-15-05-9600-3
1.50 x 0.50
9600
8
$37.69
$284.16
AiRT-15-075-7500-3
1.50 x 0.75
7500
8
$34.88
$259.50
AiRT-15-1-5500-3
1.50 x 1.00
5500
8
$20.03
$125.40
AiRT-15-15-3600-3
1.50 x 1.50
3600
8
$25.80
$177.84
AiRT-2-05-9600-3
2.00 x 0.50
9600
8
$39.84
$303.36
AiRT-2-1-5500-3
2.00 x 1.00
5500
8
$12.79
$138.60
AiRT-2-15-3600-3
2.00 x 1.50
3600
8
$26.98
$188.64
ATT-2-2-3000-3
2.00 x 2.00
3000
8
$16.00
$80.00
AiRT-2-3-1900-3
2.00 x 3.00
1900
8
$31.23
$226.86
AiRT-2-4-1500-3
2.00 x 4.00
1500
8
$16.20
$160.50
AiRT-225-125-4450-3
2.25 x 1.25
4450
8
$41.94
$323.07
AiRT-25-1-5500-3
2.50 x 1.00
5500
8
$43.68
$337.70
AiRT-25-15-3600-3
2.50 x 1.50
3600
8
$35.79
$267.84
AiRT-25-25-2500-3
2.50 x 2.50
2500
8
$39.00
$297.00
ATT-3-1-5500-3
3.00 x 1.00
5500
6
$19.98
$107.71
AiRT-3-15-3600-3
3.00 x 1.50
3600
8
$32.55
$174.24
ATT-3-2-3000-3
3.00 x 2.00
3000
6
$17.68
$89.08
AiRT-3-3-2000-3
3.00 x 3.00
2000
8
$27.90
$182.40
AiRT-3-4-1500-3
3.00 x 4.00
1500
8
$31.73
$192.60
AiRT-3-5-1200-3
3.00 x 5.00
1200
8
$24.13
$172.80
AiRT-35-1-5500-3
3.50 x 1.00
5500
4
$35.58
$133.10
AiRT-35-15-3600-3
3.50 x 1.50
3600
4
$26.15
$158.76
AiRT-4-1-5500-3
4.00 x 1.00
5500
4
$31.00
$124.30
ATT-4-15-3800-3
4.00 x 1.50
3800
4
$24.01
$72.01
ATT-4-2-3000-3
4.00 x 2.00
3000
4
$20.55
$70.64
AiRT-4-25-2500-3
4.00 x 2.50
2500
4
$21.45
$145.75
ATT-4-3-2000-3
4.00 x 3.00
2000
4
$20.15
$72.52
ATT-4-4-1500-3
4.00 x 4.00
1500
4
$21.08
$73.96
ATT-4-6-1000-3
4.00 x 6.00
1000
4
$18.96
$63.33
ATT-4-65-900-3
4.00 x 6.50
900
4
$19.64
$61.21
AiRT-4-8-750-3
4.00 x 8.00
750
4
$28.88
$114.83

White Paper Direct Thermal Labels, Industrial

Sku #
Size ( W x L )
Labels / Roll
Rolls / Case
Price Per ( ROLL )
Price Per ( CASE )
AiRD-1-1-5500-3
1.00 x 1.00
5500
8
$27.45
$192.50
AiRD-15-1-5500-3
1.50 x 1.00
5500
8
$33.09
$244.20
AiRD-15-15-3600-3
1.50 x 1.50
3600
8
$32.38
$237.60
AiRD-2-1-5500-3
2.00 x 1.00
5500
8
$30.20
$198.00
AiRD-2-2-2900-3
2.00 x 2.00
2900
8
$38.05
$288.26
AiRD-2-3-1900-3
2.00 x 3.00
1900
8
$36.79
$276.64
AiRD-25-1-5500-3
2.50 x 1.00
5500
8
$52.20
$414.70
AiRD-3-1-5500-3
3.00 x 1.00
5500
8
$59.35
$303.60
AiRD-3-2-2900-3
3.00 x 2.00
2900
8
$56.25
$263.32
AiRD-3-5-1200-3
3.00 x 5.00
1200
8
$37.89
$286.80
AiRD-4-1-5500-3
4.00 x 1.00
5500
4
$75.03
$298.10
AiRD-4-15-3600-3
4.00 x 1.50
3600
4
$66.58
$272.16
ATD-4-2-3000-3
4.00 x 2.00
3000
4
$29.67
$116.72
AiRD-4-25-2500-3
4.00 x 2.50
2500
4
$73.38
$288.00
AiRD-4-3-1900-3
4.00 x 3.00
1900
4
$46.95
$165.49
AiRD-4-4-1500-3
4.00 x 4.00
1500
4
$47.85
$188.10
ATD-4-6-1000-3
4.00 x 6.00
1000
4
$29.07
$101.76
ATD-4-65-900-3
4.00 x 6.50
900
4
$25.59
$83.99
AiRD-4-8-750-3
4.00 x 8.00
750
4
$46.03
$179.93

Not seeing your exact size? Have Questions?

Our label experts are standing by waiting to assist. Call or chat with us now!

Recommended Printheads for Model: TSC TTP-346M Barcode Label Printer
TSC Printheads (98-0470074-01LF)
TTP-346MT Printhead module (300 dpi)
In Stock
$457.20
+ Add to Quote

The TSC 99-047A004-00LF is also known as TSC-99047A00400LF or 99047A00400LF .
