TSC 99-047A001-00LF Barcode Printer


0.0

(No reviews)

Be the first to

Write a Review

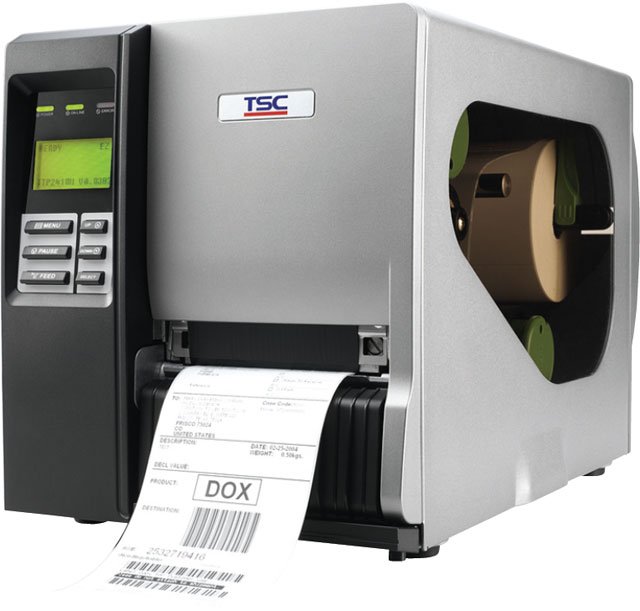

TSC TTP-2410M Pro - Printer, TT, 203 dpi, UP TO 12 IPS, Internal Ethernet, USB, Serial, Parallel.
Packed with performance at an affordable price

The TSC TTP-2410M die-cast aluminum label printer is designed to meet the most demanding barcoding and identification requirements, offering more standard features than any comparable printer, all at a very affordable price. The TTP-2410M boasts a print speed up to 12 ips - the fastest in the TSC product lineup - and the fastest throughput of any printer in its class. With its combination of speed and durability. the TTP-2410M is ideal for mission-critical printing applications - either on-demand or batch. The TTP-2410M standard features include internal Ethernet, USB 2.0 and PS/2 keyboard connectivity, 32 MB SDRAM, 8 MB Flash memory, and an SD memory-card slot for inexpensively adding up to 4 GB of additional Flash storage. The TTP-2410M supports up to a 600-meter-long ribbon, along with a full 8.2-inch outer diameter media roll. An optional peel-off kit includes an internal rewinder and a label peel-and-present sensor. The unit comes with a 2-year limited warranty.

Technical Information

  • Maximum Mono Print Speed: 12 in/s
  • Peel Facility: Yes
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.09"
  • Recommended Use: Label Print
  • Features:
    • Rewind
    • Peel Facility
    • Real Time Clock
  • Barcode Symbology Supported:
    • Code 39
    • Code 93
    • Code 128
    • Code 128 UCC
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • Codabar
    • Interleaved 2 of 5
    • EAN-8
    • EAN-13
    • EAN 128
    • UPC-A
    • UPC-E
    • UPC -2 Digits Add-on
    • UPC-5 Digits Add-on
    • MSI
    • Plessey
    • POSTNET
    • China Post
    • GS1 DataBar
    • LOGMARS
    • PDF-417
    • Maxi Code
    • Data Matrix
    • QR Code
    • Aztec Code

General Information

  • Product Type: Thermal Transfer Printer
  • Product Series: TTP-2410M
  • Brand Name: TSC Auto ID
  • Manufacturer: TSC Auto ID Technology Co., Ltd
  • Product Model: TTP-2410M Pro
  • Product Name: TTP-2410M Pro Series - Industrial Thermal Transfer Barcode Printer

Physical Characteristics

  • Height: 12.1"
  • Width: 10.6"
  • Depth: 19.9"
  • Form Factor: Desktop
  • Weight (Approximate): 33.07 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • WEEE
  • Platform Supported: PC
  • Package Contents:
    • TTP-2410M Pro Series - Industrial Thermal Transfer Barcode Printer
    • USB Cable
    • Power Cord
    • Software and Documentation CD
    • Quick Start Guide
    • TTP-2410M Pro Series - Industrial Thermal Transfer Barcode Printer
    • USB Cable
    • Power Cord
    • Software and Documentation CD
    • Quick Start Guide
  • Certifications & Standards:
    • FCC Class A
    • CE Class A
    • C-Tick Class A
    • UL
    • CUL
    • CCC
    • CB
    • TUV/Safety

Media Types & Handling

  • Maximum Label Width: 4.60"
  • Maximum Label Length: 13.33 ft
  • Media Type:
    • Continuous Label
    • Die-cut Label
    • Fanfold
    • Tag
    • Notched
    • Black Mark
    • Perforated Label
    • Label
  • Media Thickness: 11.80 mil
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
    • Cover Open Sensor
    • Out Of Ribbon Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8.20"

Memory

  • Standard Memory: 32 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: Secure Digital
  • Memory Technology: SDRAM
  • Flash Memory: 8 MB

Fonts & Emulation

  • Language Emulation:
    • TSPL-EZ
    • EPL2
    • ZPL

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Ethernet

Power Description

  • Input Voltage: 24 V DC
  • Power Source: Power Adapter

Warranty

  • Limited Warranty: 2 Year

Display & Graphics

  • Display Screen Type: LCD

Full specifications (PDF)

Full specifications (PDF)

Brand TSC
Model TTP-2410M
Print Speed 12
Interface Options Serial, Parallel, USB Host, Ethernet, USB
Max Label Width 4.60
Maximum Print Width 4.09
Print Resolution 203 dpi
Max Roll Outer Diameter 8.2
Print Method Thermal Transfer
Printer Type Industrial
Included Features SD Flash Memory Slot
Label Core 3 inches
Printer Mobility Not Mobile
Ribbon Core 1
