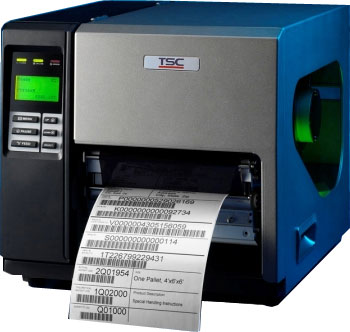

TSC 99-041A001-00LF Barcode Printer


0.0

(No reviews)

Be the first to

Write a Review
TSC TTP-268M - PRINTER, INDUSTRIAL WIDE WEB, 6.6", 203 DPI, 8IPS, 32MB DRAM, 8MB FLASH, LCD DISPLAY, USB, SERIAL, PARALLEL, 450 METER RIBBON, 8.3" OD MEDIA SUPPLY
More Value, More Features, Higher Reliability

The TSC TTP-268M Series of 6 inch wide industrial thermal transfer printers has been specifically designed for applications that require high quality wide format thermal transfer or direct thermal labels. The TTP-268M standard features include a large LCD display, built-in Ethernet, USB 2.0, Parallel and Serial communications as well as a PS/2 keyboard interface and an SD FLASH memory card slot that allows users to inexpensively add up to 4 GB of additional storage memory.

Technical Information

  • Maximum Mono Print Speed: 8 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 6.61"
  • Recommended Use: Label Print
  • Features: Real Time Clock
  • Barcode Symbology Supported:
    • Code 39
    • Code 93
    • Code 128 UCC
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • Codabar
    • Interleaved 2 of 5
    • EAN-8
    • EAN-13
    • EAN 128
    • UPC-A
    • UPC-E
    • UPC -2 Digits Add-on
    • UPC-5 Digits Add-on
    • MSI
    • Plessey
    • POSTNET
    • China Post
    • GS1 DataBar
    • LOGMARS
    • PDF-417
    • Maxi Code
    • Data Matrix
    • QR Code
    • Aztec Code

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: TSC Auto ID
  • Manufacturer: TSC Auto ID Technology Co., Ltd
  • Product Model: TTP-268M
  • Product Name: TTP-268M Label Printer

Physical Characteristics

  • Height: 13.3"
  • Width: 14"
  • Depth: 20.1"
  • Form Factor: Desktop
  • Weight (Approximate): 50.71 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • WEEE
  • Platform Supported: PC
  • Package Contents:
    • TTP-268M Label Printer
    • Windows Labeling Software CD Disk
    • Quick Start Guide
    • USB Cable
    • Power Cord
    • Ribbon Paper Core
    • TTP-268M Label Printer
    • Windows Labeling Software CD Disk
    • Quick Start Guide
    • USB Cable
    • Power Cord
    • Ribbon Paper Core
  • Certifications & Standards:
    • FCC Class A
    • CE Class A
    • CCC

Media Types & Handling

  • Maximum Label Width: 6.80"
  • Maximum Label Length: 48.33 ft
  • Media Type:
    • Label
    • Ticket
    • Continuous Label
    • Die-cut Label
    • Tag
    • Notched
    • Black Mark
    • Perforated Label
  • Media Thickness: 10 mil
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
    • Cover Open Sensor
    • Out Of Ribbon Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8.20"

Memory

  • Standard Memory: 32 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: Secure Digital
  • Memory Technology: DRAM
  • Flash Memory: 8 MB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Power Description

  • Input Voltage: 24 V DC
  • Power Source: Power Adapter

Warranty

  • Limited Warranty: 2 Year

Display & Graphics

  • Display Screen Type: LCD

Fonts & Emulation

  • Language Emulation: TSPL-EZ

Full specifications (PDF)

Full specifications (PDF)

Brand TSC
Model TTP-268M
Label Core 3 inches
Maximum Print Width 6.60
Print Resolution 203 dpi
Max Roll Outer Diameter 8.2
Print Method Thermal Transfer
Interface Options Serial, USB, Parallel
Print Speed 8
Printer Type Industrial
Included Features Real-time clock, SD Flash Memory Slot
Labels Per Day more than 10,000
Max Label Width 6.80
Printer Mobility Not Mobile
Ribbon Core 1
