TSC 99-040A011-00LF Barcode Printer


0.0

(No reviews)

Be the first to

Write a Review

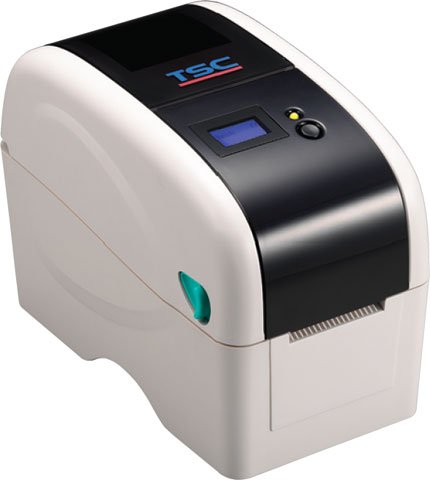

TSC TTP-225 - 2" wide thermal transfer label printer, 300 dpi, 3 ips (navy) includes real-time clock, USB & Serial ports
High quality double walled clamshell design

The TSC TTP-225 delivers premium performance for most retail, medical and office applications at an affordable price. The TTP-225 features a user friendly clamshell design with a large 5" outer diameter center biased media capacity. Designed with no losable parts, it is the perfect size when you need a space-saving printer for 2" wide labels or tags. Simply open the cover and drop your labels into the printers spring loaded media guide. Top of form sensing by gap, black mark, or notch is standard and completely adjustable from side to side. Choose either standard 203 dpi or higher resolution 300 dpi solutions. The TTP-225 features 203 dpi resolution and print speeds up to 5 ips. The 300 dpi TTP-323 is ideal for 2D barcodes, fine text and small graphics labeling.

Technical Information

  • Maximum Mono Print Speed: 3 in/s
  • Maximum Print Resolution: 300 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 2.13"
  • Recommended Use: Label Print
  • Features: Real Time Clock
  • Barcode Symbology Supported:
    • Code 39
    • Code 93
    • Code 128 UCC
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • Codabar
    • Interleaved 2 of 5
    • EAN-8
    • EAN-13
    • EAN 128
    • UPC-A
    • UPC-E
    • UPC-5 Digits Add-on
    • UPC -2 Digits Add-on
    • MSI
    • Plessey
    • POSTNET
    • China Post
    • GS1 DataBar
    • Code 11
    • PDF-417
    • Maxi Code
    • Data Matrix
    • QR Code
    • Aztec Code

General Information

  • Product Type: Thermal Transfer Printer
  • Brand Name: TSC Auto ID
  • Manufacturer: TSC Auto ID Technology Co., Ltd
  • Product Model: TTP-323
  • Product Name: TTP-323 Label Printer

Physical Characteristics

  • Height: 7"
  • Width: 5.5"
  • Depth: 9.5"
  • Form Factor: Desktop
  • Weight (Approximate): 5.40 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes

Media Types & Handling

  • Maximum Label Width: 92.9 mil
  • Maximum Label Length: 40"
  • Media Type:
    • Label
    • Tag
    • Gap
    • Black Mark
    • Notch
    • Wristband
    • Die-cut Label
    • Fanfold
    • Notched
  • Media Thickness: 7.48 mil
  • Media Sensor:
    • Cover Open Sensor
    • Transmissive Media Sensor
    • Reflective Media Sensor
    • Out Of Ribbon Sensor
  • Label Core Size: 1.50"
  • Ribbon Core Size: 0.50"
  • Maximum Roll Diameter: 5"

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • WEEE
  • Certifications & Standards:
    • FCC Class B
    • CE Class B
    • C-Tick Class B
    • UL
    • CUL
    • TÜV/Safety
    • CCC

Memory

  • Standard Memory: 8 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: microSD
  • Memory Technology: SDRAM
  • Flash Memory: 4 MB

Power Description

  • Input Voltage: 24 V DC
  • Power Source: Power Adapter

Warranty

  • Limited Warranty: 2 Year

Display & Graphics

  • Display Screen Type: LCD

Fonts & Emulation

  • Language Emulation: TSPL-EZ

Full specifications (PDF)

Full specifications (PDF)

Brand TSC
Model TTP-225
Interface Options Serial, USB
Printer Type Desktop
Included Features microSD Flash Memory Slot, Real-time clock
Label Core 1 inch
Print Method Thermal Transfer
Max Label Width 2.36
Maximum Print Width 2.13
Print Speed 3
Max Roll Outer Diameter 5
Print Resolution 300 dpi
Printer Mobility Not Mobile
Ribbon Core 0.5
