TSC TTP-225 – Barcode Label Printer – 203 dpi – Thermal Transfer – Real-Time Clock
Full specifications (PDF)

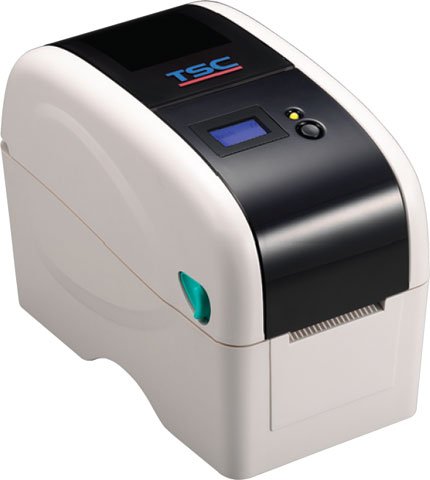

TSC TTP-225 Barcode Label Printer Model Overview
Key Features:
- Compact size for space-saving convenience
- User-friendly clamshell design for easy media loading
- High-quality double-walled plastic enclosure for durability
- Standard connectivity options, including USB 2.0 and optional Ethernet
- ENERGY STAR® qualified for energy efficiency
- Variety of factory and user options, including LCD display, cutter, and Bluetooth module
Specifications:
- Printer Model: TTP-225
- Resolution: 203 DPI (8 dots/mm)
- Printing Method: Thermal Transfer & Direct Thermal
- Max Print Speed: 127 mm/s (5 in/s)
- Max Print Width: 54 mm (2.13 in)
- Enclosure: Clamshell design with double-walled plastic
- Dimensions: 140 mm (W) x 177 mm (H) x 241 mm (D)
- Weight: 2.45 kg (5.4 lbs)
- Memory: 8 MB SDRAM, 4 MB Flash memory
- Interfaces: USB 2.0, optional Ethernet and Bluetooth
- Environmental Conditions: Operating: 5 to 40°C, Storage: -40 to 60°C
- Warranty: 2 years for printer, 12 months for print head or 25 km
Recommended Accessories
Category
- Power Device (1)
- Printer Accessories (2)
Recommended Accessories for Model: TSC 99-040A010-42LF Barcode Label Printer
Top Power Device Purchased With TSC 99-040A010-42LF
-
TSC 72-0180100-00LF Power DevicePower Systems and Supplies, TSC, Power Cord, Power Supply Not Included, Compatible with TTP-225, 244Item on backorder — chat for lead time$16.29
Top Printer Accessories Purchased With TSC 99-040A010-42LF
-
TSC 98-0400017-01LF AccessoryPrinter Spare Parts, TSC, Cutter Module, Compatible with TTP-225, TTP-323Item on backorder — chat for lead time$136.86 -
TSC 98-0400025-01LF AccessoryPrinter Spare Parts, TSC, 98-0400025-01LF, Dark, Peel-off Module, Compatible with TTP-225 SeriesIn Stock$14.06
