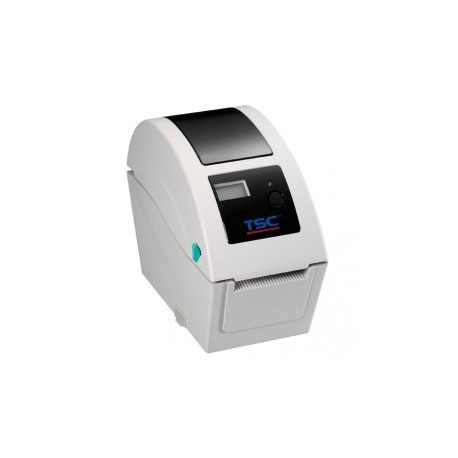

TSC TDP-225 – Barcode Label Printer – 203 dpi – Direct Thermal
Part Number:
99-039A001-50LF
Model:
TDP-225
Full specifications (PDF)
TSC TDP-225 Barcode Label Printer Model Overview
The TSC TDP-225 Series Desktop Direct Thermal Bar Code Printer is designed for environments where space is at a premium but performance cannot be compromised. Offering high-speed printing of up to 127 mm (5") per second and available in 203 dpi and 300 dpi resolutions, this compact printer provides exceptional quality for applications including retail point-of-sale, inventory management, and healthcare specimen labeling. With its user-friendly clamshell design, the TDP-225 Series ensures easy media loading and efficient operation tailored for smaller settings without sacrificing indispensable features.
Key features:
Specifications:
Key features:
- High-quality double-walled clamshell design
- 127 mm (5") OD media capacity
- Up to 127 mm (5") per second print speed
- Easy media loading with head open sensor
- MicroSD Flash memory expansion up to 4 GB
- ENERGY STAR® qualified
- Cerner certified for healthcare applications
Specifications:
- Printer Model: TDP-225
- Resolution: 8 dots/mm (203 DPI)
- Printing method: Direct Thermal
- Max. print speed: 127 mm (5")/second
- Max. print width: 54 mm (2.13")
- Max. print length: 2,286 mm (90")
- Physical dimension: 109 mm (W) x 171 mm (H) x 209 mm (D)
- Weight: 1.2 kg (2.65 lbs)
- Label roll capacity: 127 mm (5") OD
- Memory: 4 MB Flash memory and 8 MB SDRAM
- Connectivity: USB 2.0 & RS-232
- Power: AC 100-240V, DC 24V, 2.08A
- Warranty: 2 years for printer
Brand
TSC
Model
TDP-225
Max Print Width
2.25 inch
Printer Type
Desktop
Printing Technology
Direct Thermal
Print Resolution
203 dpi
Interface Options
Serial (RS-232), USB
Recommended Accessories
Category
- Power Device (1)
- Printer Accessories (5)
Recommended Accessories for Model: TSC 99-039A001-50LF Barcode Label Printer
Top Power Device Purchased With TSC 99-039A001-50LF
-
TSC 72-0180100-02LF Power DevicePower Systems and Supplies, TSC, Power Cord (UK) Compatible with TDP, TTP-225, 243 Pro$16.00
Top Printer Accessories Purchased With TSC 99-039A001-50LF
-
TSC 98-0390031-00LF AccessoryPrinter Spare Parts, TSC, Peeler, Compatible with TDP-225$23.69 -
TSC 98-0390038-00LF AccessoryPrinter Spare Parts, TSC, Full Cut, Partial Cut Cutter Module for Printer, Compatible with TDP-225$136.86 -
TSC 98-0390034-00LF AccessoryTDP-225 Series RS-232 Serial Interface Module - Replaces Ethernet Port$24.97
