Barcodes,Inc.

TSC 99-039A001-30LF Barcode Printer


0.0

(No reviews)

Be the first to

Write a Review

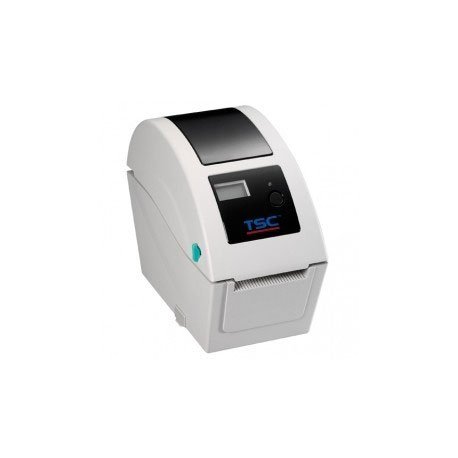

TSC TDP-225 - 2" LABEL PRINTER, 203 DPI, 5" OD, 5IPS, USB, SERIAL, PEELER
Up to 127 mm (5") per second print speed

Built with TSC durability, reliability and commitment to innovation, the 2-inch-format TSC TDP-225 direct thermal printer features a compact design and high performance engine that make it ideal for retail and other labeling applications. The TDP-225 prints at 5 ips and is the first low-cost compact 2-inch desktop printer to offer an optional LCD display for easy tracking of print job status. Other outstanding features include an inexpensive internal Ethernet adapter for easy integration into networks and an optional keyboard for printing labels in standalone or down-time situations.

Technical Information

  • Maximum Mono Print Speed: 5 in/s
  • Peel Facility: Yes
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 2.13"
  • Recommended Use: Label Print
  • Features:
    • Real Time Clock
    • Peel Facility
  • Barcode Symbology Supported:
    • Code 39
    • Code 93
    • Code 128 UCC
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • Codabar
    • Interleaved 2 of 5
    • EAN-8
    • EAN-13
    • EAN 128
    • UPC-A
    • UPC-E
    • MSI
    • Plessey
    • POSTNET
    • China Post
    • GS1 DataBar
    • Code 11
    • PDF-417
    • Maxi Code
    • Data Matrix
    • QR Code
    • Aztec Code

General Information

  • Product Type: Direct Thermal Printer
  • Brand Name: TSC Auto ID
  • Manufacturer: TSC Auto ID Technology Co., Ltd
  • Product Model: TDP-225
  • Product Name: TDP-225 Label Printer

Physical Characteristics

  • Height: 6.7"
  • Width: 4.3"
  • Depth: 8.2"
  • Form Factor: Desktop
  • Weight (Approximate): 2.65 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • WEEE
  • Platform Supported: PC
  • Package Contents:
    • TDP-225 Label Printer
    • Windows Labeling Software CD Disk
    • Quick Start Guide
    • USB Cable
    • External Universal Switching Power Supply
    • Power Cord
    • TDP-225 Label Printer
    • Windows Labeling Software CD Disk
    • Quick Start Guide
    • USB Cable
    • External Universal Switching Power Supply
    • Power Cord
  • Certifications & Standards:
    • FCC Class B
    • CE Class B
    • C-Tick Class B
    • UL
    • CUL
    • TÜV/Safety
    • CCC

Media Types & Handling

  • Maximum Label Width: 2.36"
  • Maximum Label Length: 90"
  • Media Type:
    • Continuous Form
    • Die-cut Label
    • Black Mark
    • Fanfold
    • Notched
    • Wristband
    • Gap
    • Notch
  • Media Thickness: 7.48 mil
  • Media Sensor:
    • Reflective Media Sensor
    • Cover Open Sensor
    • Transmissive Media Sensor
  • Label Core Size: 1.50"
  • Maximum Roll Diameter: 5"

Memory

  • Standard Memory: 8 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: microSD
  • Memory Technology: SDRAM
  • Flash Memory: 4 MB

Power Description

  • Input Voltage: 24 V DC

Warranty

  • Limited Warranty: 2 Year

Fonts & Emulation

  • Language Emulation: TSPL-EZ

Full specifications (PDF)

Full specifications (PDF)

Brand TSC
Model TDP-225
Print Resolution 203 dpi
Maximum Print Width 2.13
Print Speed 5
Label Core 1 inch
Print Method Direct Thermal
Included Features microSD Flash Memory Slot
Max Label Width 2.36
Interface Options Serial, USB
Printer Type Desktop
Max Roll Outer Diameter 5
Printer Mobility Not Mobile
