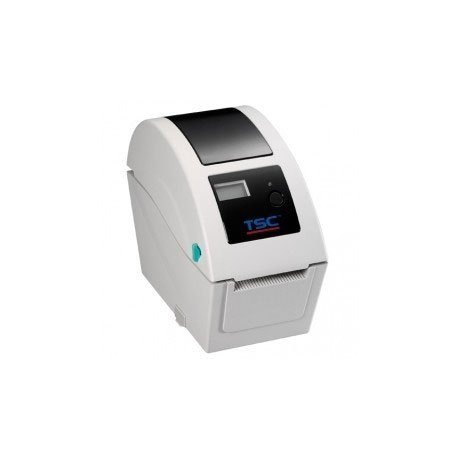

TSC 99-039A001-00LF Barcode Printer


0.0

(No reviews)

Be the first to

Write a Review
TSC TDP-225 - 2 INCH LABEL PRINTER, 5 INCH outer diameter, PRINTS UP TO 5 IPS, INCLUDES USB 2.0 AND SERIAL
$232.10
In Stock:
Ships Same Day
Your satisfaction is guaranteed!
We want to make sure you are completely satisfied with your purchase. Customers must return their product within 30 days of shipment to receive a full credit less a 15% restocking fee. Returns must be presented in new condition with all of the original packaging.
Share:
Up to 127 mm (5") per second print speed

Built with TSC durability, reliability and commitment to innovation, the 2-inch-format TSC TDP-225 direct thermal printer features a compact design and high performance engine that make it ideal for retail and other labeling applications. The TDP-225 prints at 5 ips and is the first low-cost compact 2-inch desktop printer to offer an optional LCD display for easy tracking of print job status. Other outstanding features include an inexpensive internal Ethernet adapter for easy integration into networks and an optional keyboard for printing labels in standalone or down-time situations.

Technical Information

  • Maximum Mono Print Speed:
    • 5 in/s
    • 5 in/s
  • Maximum Print Resolution:
    • 203 dpi
    • 203 dpi
  • Print Color:
    • Monochrome
    • Monochrome
  • Maximum Print Width:
    • 2.13"
    • 2.13"
  • Recommended Use:
    • Label Print
    • Label Print
  • Features:
    • Real Time Clock
    • Real Time Clock
  • Barcode Symbology Supported:
    • Code 39
    • Code 93
    • Code 128 UCC
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • Codabar
    • Interleaved 2 of 5
    • EAN-8
    • EAN-13
    • EAN 128
    • UPC-A
    • UPC-E
    • MSI
    • Plessey
    • POSTNET
    • China Post
    • RSS-14
    • Code 11
    • PDF-417
    • Maxi Code
    • Data Matrix
    • QR Code
    • Aztec Code
    • Code 39
    • Code 93
    • Code 128 UCC
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • Codabar
    • Interleaved 2 of 5
    • EAN-8
    • EAN-13
    • EAN 128
    • UPC-A
    • UPC-E
    • MSI
    • Plessey
    • POSTNET
    • China Post
    • RSS-14
    • Code 11
    • PDF-417
    • Maxi Code
    • Data Matrix
    • QR Code
    • Aztec Code

General Information

  • Product Type:
    • Direct Thermal Printer
    • Direct Thermal Printer
  • Brand Name:
    • TSC
    • TSC Auto ID
  • Manufacturer:
  • Product Model:
    • TDP-225
    • TDP-225
  • Product Name:
    • TDP-225 Label Printer
    • TDP-225 - Desktop Direct Thermal Barcode Printer
  • Product Series: TDP

Physical Characteristics

  • Height:
    • 6.7"
    • 6.7"
  • Width:
    • 4.3"
    • 4.3"
  • Depth:
    • 8.2"
    • 8.2"
  • Form Factor: Desktop
  • Weight (Approximate): 2.65 lb
  • Color: Beige

Interfaces/Ports

  • USB:
    • Yes
    • Yes
  • Serial Port:
    • Yes
    • Yes

Other

  • Platform Supported:
    • PC
    • PC
  • Package Contents:
    • TDP-225 Label Printer
    • Windows Labeling Software CD Disk
    • Quick Start Guide
    • USB port Cable
    • External Universal Switching Power Supply
    • Power Cord
    • TDP-225 Label Printer
    • Windows Labeling Software CD Disk
    • Quick Start Guide
    • USB port Cable
    • External Universal Switching Power Supply
    • Power Cord
    • TDP-225 - Desktop Direct Thermal Barcode Printer
    • Windows Labeling Software CD Disk
    • Quick Start Guide
    • USB port Cable
    • External Universal Switching Power Supply
    • Power Cord
    • TDP-225 - Desktop Direct Thermal Barcode Printer
    • Windows Labeling Software CD Disk
    • Quick Start Guide
    • USB port Cable
    • External Universal Switching Power Supply
    • Power Cord
  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • WEEE
    • RoHS
  • Certifications & Standards:
    • FCC Class B
    • CE Class B
    • C-Tick Class B
    • UL
    • CUL
    • TÜV/Safety
    • CCC

Media Types & Handling

  • Maximum Label Width:
    • 2.36"
    • 2.36"
  • Maximum Label Length:
    • 90"
    • 90"
  • Media Type:
    • Continuous Form
    • Die-cut Label
    • Black Mark
    • Fanfold
    • Notch
    • Wristband
    • Continuous Form
    • Die-cut Label
    • Black Mark
    • Fanfold
    • Notch
    • Wristband
  • Media Thickness:
    • 7.48 mil
    • 7.48 mil
  • Label Core Size:
    • 1.50"
    • 1.50"
  • Maximum Roll Diameter:
    • 1.50"
    • 1.50"
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
    • Cover Open Sensor

Memory

  • Standard Memory:
    • 8 MB
    • 8 MB
  • Memory Technology:
    • SDRAM
    • SDRAM
  • Flash Memory:
    • 4 MB
    • 4 MB
  • Memory Card Slot: Yes

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
    • 24 V DC
  • Power Source: Power Adapter

Fonts & Emulation

  • Language Emulation:
    • TSPL-EZ
    • TSPL-EZ

Warranty

  • Limited Warranty:
    • 2 Year
    • 2 Year

Display & Graphics

  • Display Screen Type:
    • LCD
    • LCD

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Full specifications (PDF)

Full specifications (PDF)

Brand TSC
Model TDP-225
Interface Options Serial, USB
Printer Type Desktop
Included Features microSD Flash Memory Slot
Max Roll Outer Diameter 5
Max Label Width 2.36
Print Speed 5
Label Core 1 inch
Print Resolution 203 dpi
Print Method Direct Thermal
Maximum Print Width 2.13
Printer Mobility Not Mobile
