TSC 99-033A002-00LF Barcode Printer


0.0

(No reviews)

Be the first to

Write a Review
TSC TTP-343C - 300 DPI version of the TTP-245C, 3 IPS, 5 inch internal media supply, 2MB flash, 8MB DRAM, Ethernet, USB 2.0 Parallel and Serial.
The high-performance printer with a small footprint

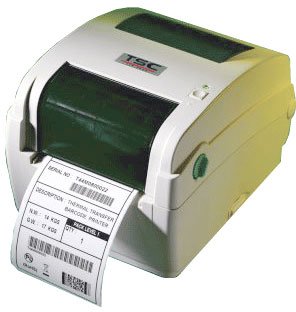

The TSC TTP-343C series of desktop thermal barcode printer, with its new, smaller footprint, offers the high performance that customers have come to expect from TSC. Durable, reliable and fast, the TTP-343C generates 4-inch-wide labels, tags or receipts at up to 6 ips, offering a price-performance combination that is unmatched by other desktop thermal barcode printers on the market. The TTP-343C incorporates a 200 MHz 32-bit processor that offers fast "first label out" throughput, with no between-label delays, even when using its internally scalable True Type fonts. Using its standard internal Ethernet port, the TTP-343C can be quickly integrated with any network. The TTP-343C"s easy-to-use design speeds up ribbon and media loading. And with the smallest footprint ever for a TSC 4-inch desktop printer, the TTP-343C series easily fits into cramped workspaces. The TTP-343C offers 300 dpi resolution and is ideal for 2D barcodes, fine text and complex graphics.

Technical Information

  • Maximum Mono Print Speed: 4 in/s
  • Maximum Print Resolution: 300 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.17"
  • Recommended Use: Label Print
  • Barcode Symbology Supported:
    • Code 39
    • Code 93
    • Code 128
    • UCC
    • Code 128-A
    • Code 128-C
    • Code 128-B
    • Codabar
    • Interleaved 2 of 5
    • EAN-8
    • EAN-13
    • EAN 128
    • UPC-A
    • UPC-E
    • UPC -2 Digits Add-on
    • UPC-5 Digits Add-on
    • MSI
    • Plessey
    • POSTNET
    • GS1 DataBar
    • LOGMARS
    • Code 11
    • PDF-417
    • Maxi Code
    • Aztec Code
    • QR Code
    • Data Matrix

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: TTP-245C
  • Brand Name: TSC Auto ID
  • Manufacturer: TSC Auto ID Technology Co., Ltd
  • Product Model: TTP-343C
  • Product Name: TTP-343C Label Printer

Physical Characteristics

  • Height: 6.8"
  • Width: 8"
  • Depth: 10.2"
  • Form Factor: Desktop
  • Weight (Approximate): 10.58 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Other

  • Platform Supported: PC
  • Package Contents:
    • TTP-343C Label Printer
    • Software and Documentation Cd
    • Quick Start Guide
    • USB Cable
    • External Universal Switching Power Supply
    • Power Cord
    • TTP-343C Label Printer
    • Software and Documentation Cd
    • Quick Start Guide
    • USB Cable
    • External Universal Switching Power Supply
    • Power Cord
  • Certifications & Standards:
    • FCC Class B
    • CE Class B
    • C-Tick Class B
    • UL
    • CUL
    • TUV/Safety
    • CCC

Media Types & Handling

  • Maximum Label Width: 4.40"
  • Media Type:
    • Continuous Label
    • Die-cut Label
    • Fanfold
    • Tag
    • Roll Paper
  • Media Thickness: 7.48 mil
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
    • Cover Open Sensor
    • Out Of Ribbon Sensor
  • Label Core Size: 0.50"
  • Maximum Roll Diameter: 1.57"

Memory

  • Standard Memory: 8 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: Secure Digital
  • Memory Technology: DRAM
  • Flash Memory: 4 MB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Ethernet

Cutter

  • Cutting Method: Manual

Warranty

  • Limited Warranty: 2 Year

Fonts & Emulation

  • Language Emulation: TSPL-EZ

Full specifications (PDF)

Full specifications (PDF)

Brand TSC
Model TTP-343C
Print Speed 4
Print Method Thermal Transfer
Interface Options Parallel, Serial, USB, Ethernet
Label Core 1 inch
Max Roll Outer Diameter 5
Printer Type Desktop
Max Label Width 4.40
Maximum Print Width 4.17
Print Resolution 300 dpi
Included Features SD Flash Memory Slot
Printer Mobility Not Mobile
Ribbon Core 0.5
