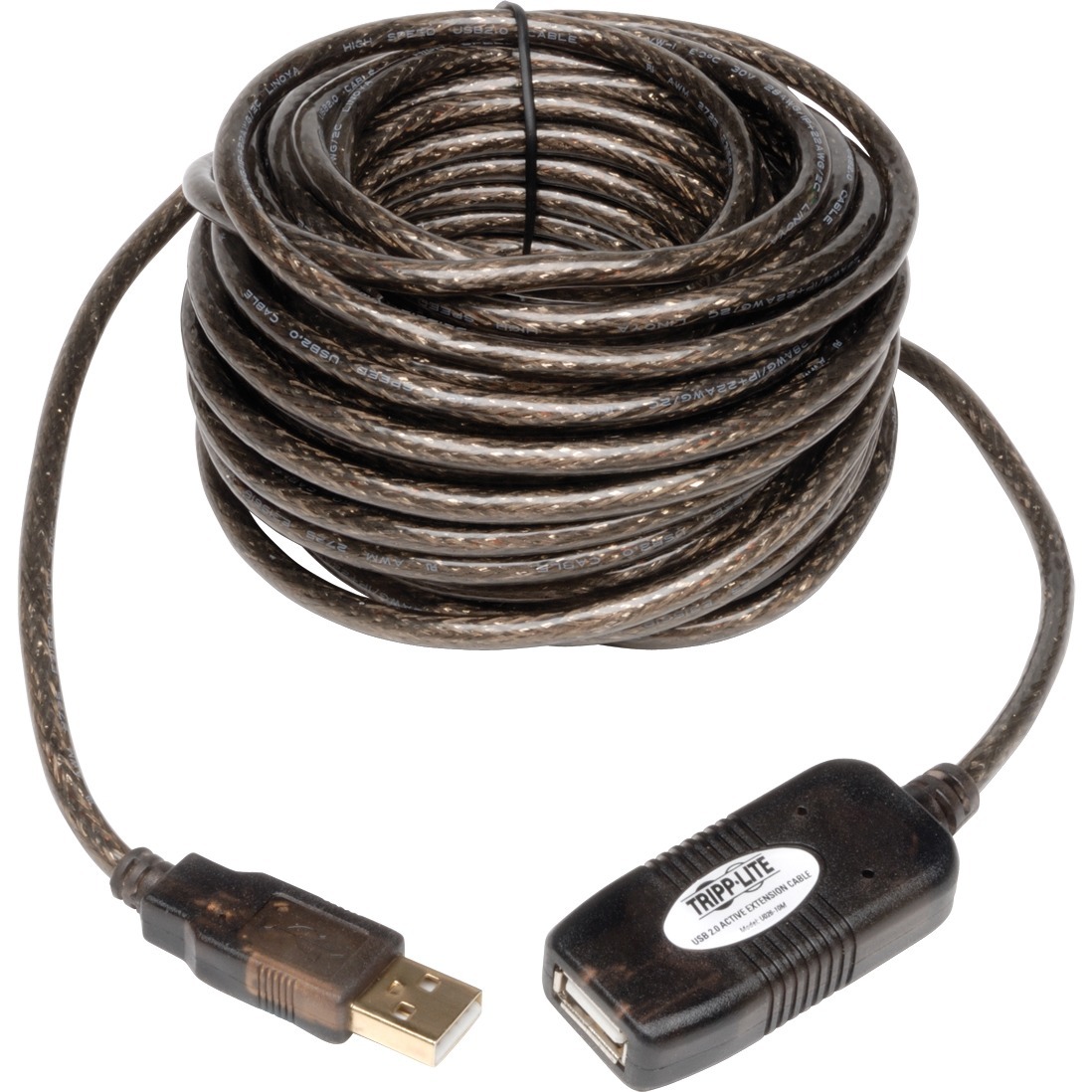

Tripp-Lite U026-10M Power Device

Tripp-Lite - Tripp Lite 10M USB 2.0 Hi-Speed Active Extension Repeater Cable USB-A M/F 3 33ft 10 Meter - 32.81 ft Maximum Operating Distance - Network (RJ-45)
  • Extends and Boosts the signal to any USB device
  • Supports data transfer speeds up to 480Mbps
  • Built in Repeater maintains Hi-Speed USB signal quality, and electrical / timing specifications
  • Plug and Play....Compatible with all major operating systems
Read More

Need a different version? See all Tripp-Lite Parts Accessories

$35.77
In Stock
Add to Quote
Add to My Shopping List Add to Compare
Tripp-Lite U026-10M Power Device
Tripp-Lite U026-10M Power Device
Tripp-Lite U026-10M Power Device
Tripp-Lite Parts Accessory Model Overview
Products and parts from Tripp-Lite.
Tripp-Lite U026-10M Power Device Overview

Tripp Lite's 10-meter ( 33 ft. ) USB 2.0 active extension cable is a bus powered extension cable that can be used to increase the length of a device cable without the worry of signal loss and potential performance problems. USB limits a cable's length to 16ft. Any length above 16 feet requires the use of an active cable such as this one. This cable has a signal booster built in. The overall cable length can be extended up to 131ft by daisy chaining up to 4 of these active cables. The cable must be plugged directly into a USB port (either on the PC or a hub). Use a standard 6' 10' or 15' USB A-B cable to reach the desired distance. The U026-10M provides up to 150mA of power to the connected device. If your device requires more than 150mA of power, it will either need to have its own power supply; or, to be plugged into a powered USB 2.0 hub (such as U222-004-R) that is connected to the U026-10M.

Interfaces/Ports
Network (RJ-45):
Yes
Media & Performance
Maximum Operating Distance:
32.81 ft
Physical Characteristics
Length:
32.8 ft
Miscellaneous
Additional Information:
  • 10 meter ( 33 ft.) USB2.0 Active Extension Cable, USB-A Male to USB-A Female
  • Full 480Mbps Transfer rate, as well as backward compatible to USB 1.1 ( 12Mbps )
  • Daisy Chain four cables for a total of 40 Meters ( 131ft )
  • Bus Powered...no external power required
  • Compatible with all major operating systems....Plug-and-Play; no software to load
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
China
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0037332173263, 0373321732630, 0637315413692, 0654323045103, 0728072157872
UPC: 037332173263, 373321732630, 637315413692, 654323045103, 728072157872
EAN: 0037332173263, 0373321732630, 0637315413692, 0654323045103, 0728072157872
UNSPSC: 32101514
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Tripp-Lite U026-10M Power Device is also known as U02610M
