Tripp-Lite U026-016 Accessory

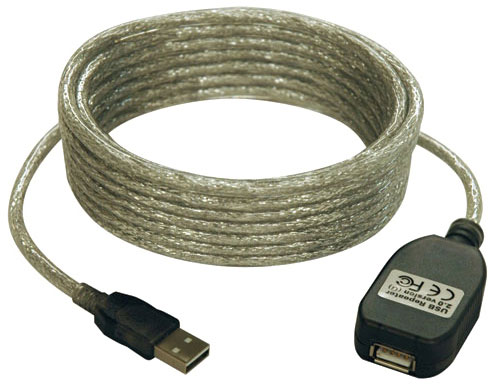

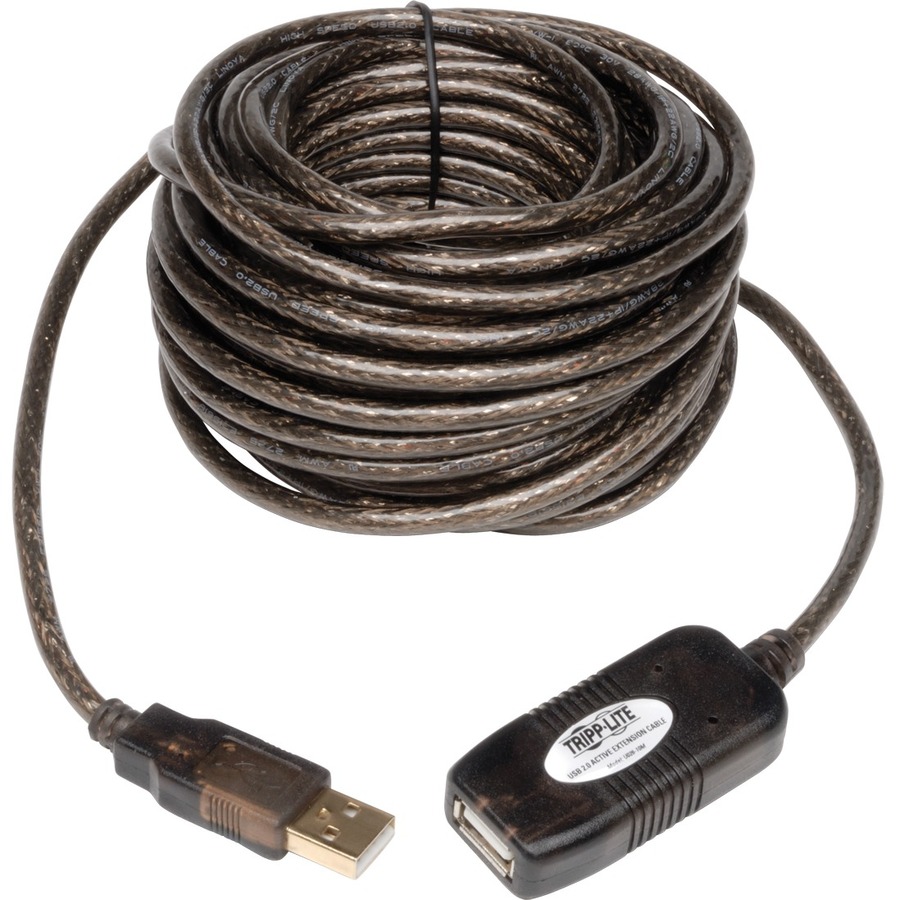

Tripp-Lite - Tripp Lite 16ft USB 2.0 Extension Cable Active USB-A Male / USB-A Female - Type A Male USB - Type A Female USB - 16ft
  • Extend a USB 2.0 signal passed the 16-ft. (4.88 m) distance limitation
  • Works together with standard USB 2.0 cables
  • Bus powered signal booster
  • Daisychain up to 5 cables to extend the signal up to 80-ft. (24.38 m) passed the 16-ft. (4.88 m) distance limitation
  • The U026-016 provides up to 150mA of power to the connected device. If your device requires more than 150mA of power, it will either need to have its own power supply; or, to be plugged into a powered USB 2.0 hub (such as U222-004-R) that is connected to the U026-016.
Read More

Need a different version? See all Tripp-Lite Parts Accessories

$25.01
In Stock
Add to Quote
Add to My Shopping List Add to Compare
Tripp-Lite U026-016 Accessory
Tripp-Lite U026-016 Accessory Tripp-Lite U026-016 Accessory Tripp-Lite U026-016 Accessory
Tripp-Lite U026-016 Accessory
Tripp-Lite U026-016 Accessory
Tripp-Lite U026-016 Accessory
Tripp-Lite Parts Accessory Model Overview
Products and parts from Tripp-Lite.
Tripp-Lite U026-016 Accessory Overview

Tripp Lite's 16-ft. USB 2.0 active extension cable is a bus powered extension cable that can be used to increase the length of a device cable without the worry of signal loss and potential performance problems. USB limits a cable's length to 16ft. Any length above 16 feet requires the use of an active cable such as this one. This cable has a signal booster built in. The overall cable length can be extended up to 80ft by daisy chaining up to 5 of these active cables. The U026-016 provides up to 150mA of power to the connected device. If your device requires more than 150mA of power, it will either need to have its own power supply; or, to be plugged into a powered USB 2.0 hub (such as U222-004-R) that is connected to the U026-016. Use a standard 6' 10' or 15' USB cable to reach the desired distance.

Technical Information
Cable Type:
USB
Cable Characteristic:
Extension Cable
Cable Length:
16 ft
Connector Type on First End:
USB 2.0 Type A - Male
Connector on First End Details:
1 x USB 2.0 Type A - Male
Connector Type on Second End:
USB 2.0 Type A - Female
Connector on Second End Details:
1 x USB 2.0 Type A - Female
Contact Plating:
Gold
Conductor:
Copper
Shielding:
Yes
American Wire Gauge:
28/22 AWG
Features:
  • Active
  • Double Shielded
Physical Characteristics
Product Color:
Black
Jacket Color:
Black
Shielding Material:
  • Tinned Copper Braid
  • Aluminum Mylar Foil
Miscellaneous
Package Contents:
  • USB 2.0 Extension Cable
  • 16-ft. USB AA 2.0 Certified Active Extension Cable USB-A F/M
Compatibility:
  • USB Hub
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
China
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0037332120588, 0151903495223, 0568695127223, 0654322801496, 0696455068674, 0727523147301, 0728072157865, 0818243123710, 0881000000654
UPC: 037332120588, 151903495223, 568695127223, 654322801496, 696455068674, 727523147301, 728072157865, 818243123710, 881000000654
EAN: 0037332120588, 0151903495223, 0568695127223, 0654322801496, 0696455068674, 0727523147301, 0728072157865, 0818243123710, 0881000000654
UNSPSC: 26121604
