Plug/Connector Type:
NEMA 5-15P
Receptacles:
7 x NEMA 5-15R
Protection Type:
Surge
Tripp-Lite Parts Accessory Model Overview
Products and parts from Tripp-Lite.

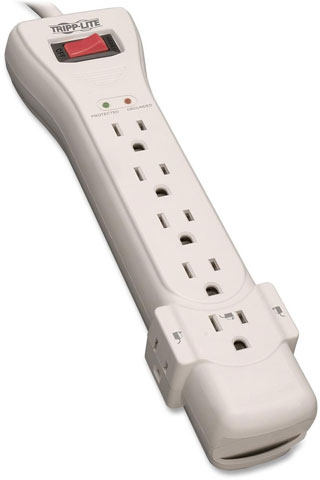

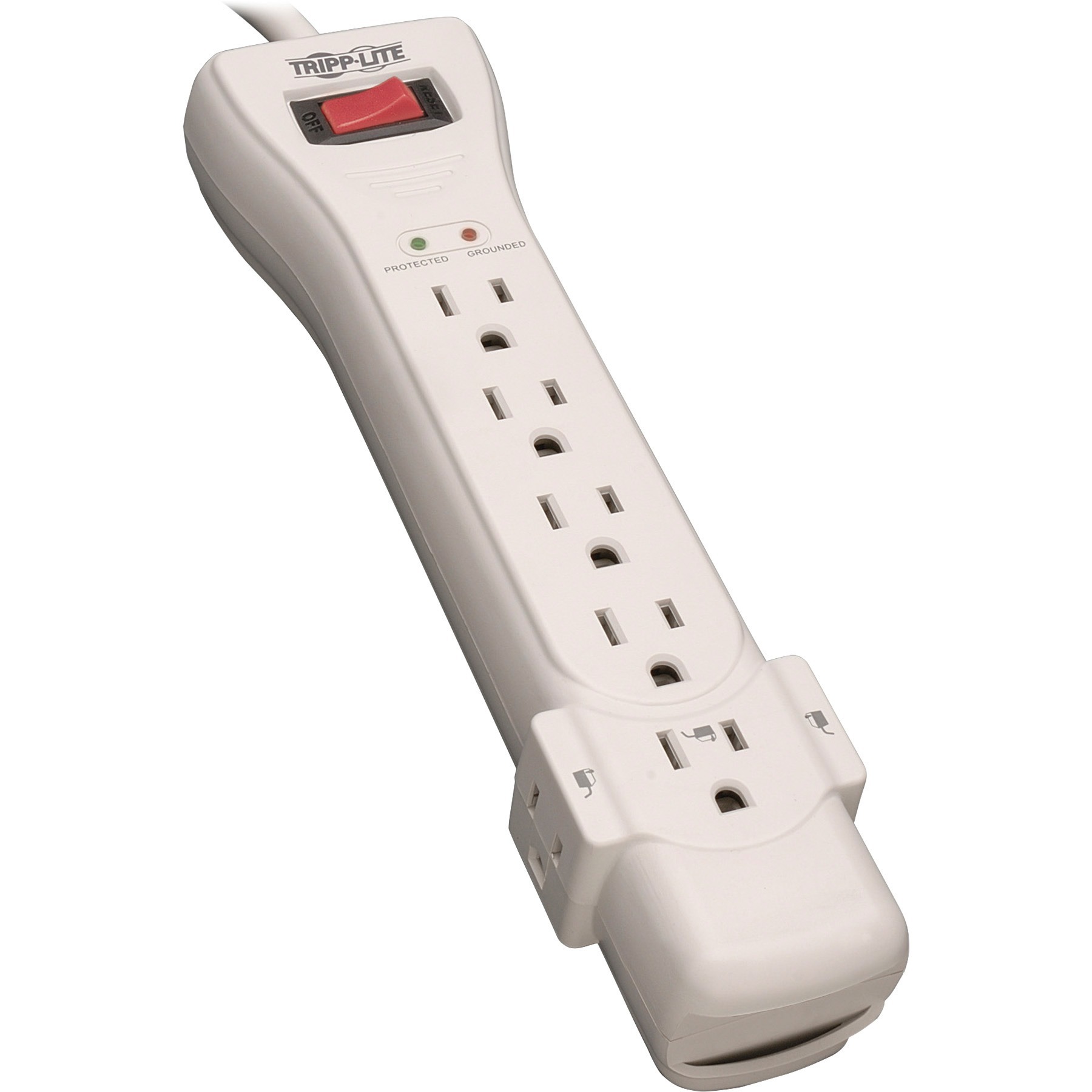

Tripp-Lite SUPER7 Products Overview
Safeguard your computer, printer, scanner, router, modem and other small home electronics against dangerous surges, spikes and line noise using this seven-outlet surge protector with right-angle plug and surge suppression rating of 2160 joules. It is recommended for any desktop, network or home application requiring AC line protection. Automatic shutoff permanently cuts power to outlets if protection circuit is incapacitated, preventing equipment damage and indicating replacement is required. 15A resettable circuit breaker foils dangerous overloads. On/off switch provides one-touch control over connected equipment. Diagnostic LEDs confirm grounding and protection status at a glance. The 7' AC power cord allows the SUPER7 to reach nearby outlets while its right-angle NEMA 5-15P plug allows furniture and equipment to be placed flush against the wall to save space in your workstation. Keyhole slots incorporated into the bottom panel provide convenient wall or desk mounting options.
Technical Information
Power Description
Input Voltage:
120 V AC
Output Voltage:
120 V AC
Maximum Line Current:
15 A
Power Handling:
1800 VA
Surge Energy Rating:
2160 J
Controls/Indicators
Status Indicators:
Protection Present Grounded
Physical Characteristics
Product Color:
Gray
Power Cord/Cable Length:
7 ft
Height:
1.5"
Width:
2.7"
Depth:
10.3"
Weight (Approximate):
1.39 lb
Miscellaneous
Package Contents:
- Protect It! 7-Outlet Super Surge Protector
- Instruction Manual with Warranty Information
Additional Information:
- Accommodate up to 3 transformers without blocking remaining outlets
- Keyhole mounting tabs enable wall mounting
- 14 gauge, SJT Input cord
Compatibility:
- Computer
- CAD/CAM/CAE Workstations
- Network Nodes
- File Servers
- Point-of-Sale Terminals
- Audio/Visual Devices
Certifications & Standards:
- UL1449 (let through rating 330V)
- IEEE 587 Category A and B
- UL1363
- cUL
Recycled:
No
Assembly Required:
No
Country of Origin:
China
Warranty
Limited Warranty:
Lifetime
Additional Warranty Information:
$75,000 Ultimate Lifetime Insurance (USA & Canada Only).
Item Numbers
GTIN:
0011411238838, 0037332010599, 0037332095282, 0713884543876, 0818257004739
UPC:
011411238838, 037332010599, 037332095282, 713884543876, 818257004739
EAN:
0011411238838, 0037332010599, 0037332095282, 0713884543876, 0818257004739
UNSPSC:
39121610
