Tripp-Lite SUINT3000RTXL2U Rack

Part Number: SUINT3000RTXL2U
Model: Parts
to get Free Ground Shipping on your order.
Add to My Shopping List Add to Compare
$2,538.72

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Receptacle Detail
10
Bypass Switch
Automatic
Emergency Power OFF
Yes
Transfer Time
0 ns

Product Description:

  Racks, Tripp-Lite, SmartOnline Double-Conversion UPS, 2U, USB, DB9, 230V, 3kVA, 2.5kW, On-Line
Explore all Tripp-Lite Parts Accessories
Add to Quote
Tripp-Lite SUINT3000RTXL2U Rack
Tripp-Lite SUINT3000RTXL2U Rack
Tripp-Lite SUINT3000RTXL2U Rack
Tripp-Lite SUINT3000RTXL2U Rack Tripp-Lite SUINT3000RTXL2U Rack Tripp-Lite SUINT3000RTXL2U Rack

Tripp-Lite Parts Accessory Model Overview

Products and parts from Tripp-Lite.
Tripp-Lite SUINT3000RTXL2U Rack Overview

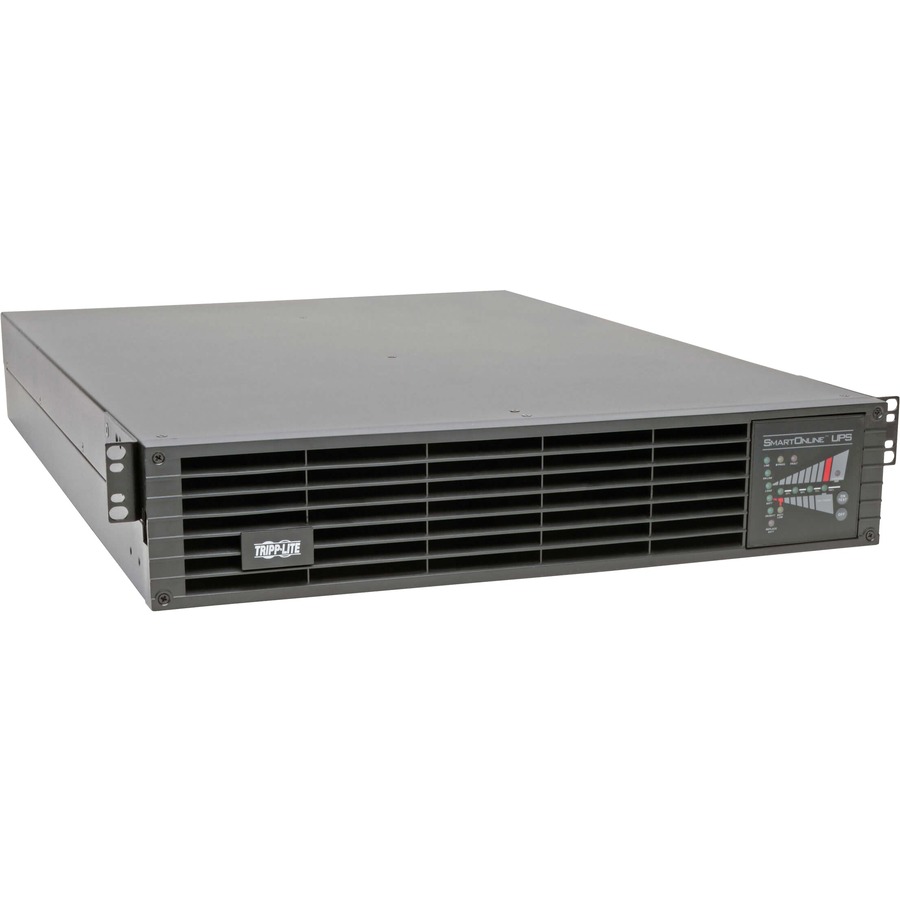

3000VA / 3kVA / 2500 watt on-line, double-conversion UPS system for critical server, network and telecommunications equipment. 2U rackmount form factor with an installed depth of only 66cm (26 inches). Full time sine wave 200/208/220/230/240V output with +/-2% voltage regulation. UPS actively converts raw incoming AC power to DC, then re-converts output back to completely regulated, filtered AC output. Operates continuously without using battery power during brownouts to 120V and overvoltages to 288V. C20 inlet accepts a wide variety of optional cordsets. C19 and C13 output receptacles. Network management interfaces include USB port, DB9 serial port and SNMPWEBCARD slot. Built-in DB9 port offers both enhanced RS-232 enabled monitoring data, plus contact closure monitoring ability. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Multi-stage metered current monitoring and battery charge status LEDs.

Technical Information
Receptacle Detail:
10
Bypass Switch:
Automatic
Emergency Power OFF:
Yes
Transfer Time:
0 ns
Power Description
Load Capacity:
3000 VA/2500 W
Input Voltage:
220 V AC
Output Voltage:
  • 240 V AC
  • 208 V AC
  • 220 V AC
  • 230 V AC
Input Current:
15 A
Management
Network Management:
SNMP Manageable
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Battery Information
Backup/Run Time (Full Load):
6 Minute
Backup/Run Time (Half Load):
15 Minute
Typical Battery Recharge Time:
4.80 Hour
Hot Swappable:
Yes
Physical Characteristics
Height:
3.5"
Width:
17.3"
Depth:
26"
Rack Height:
2U
Form Factor:
Rack/Tower
Weight (Approximate):
78.30 lb
Miscellaneous
Package Contents:
  • SmartOnline SUINT3000RTXL2U 3000 VA Tower/Rack Mountable UPS
  • 4 Post Rackmount Installation Brackets
  • C19 to C20 Power Cable
  • PowerAlert Software CD
  • USB Cable
  • Serial Cable
  • Owner's Manual with Warranty Information
Additional Information:

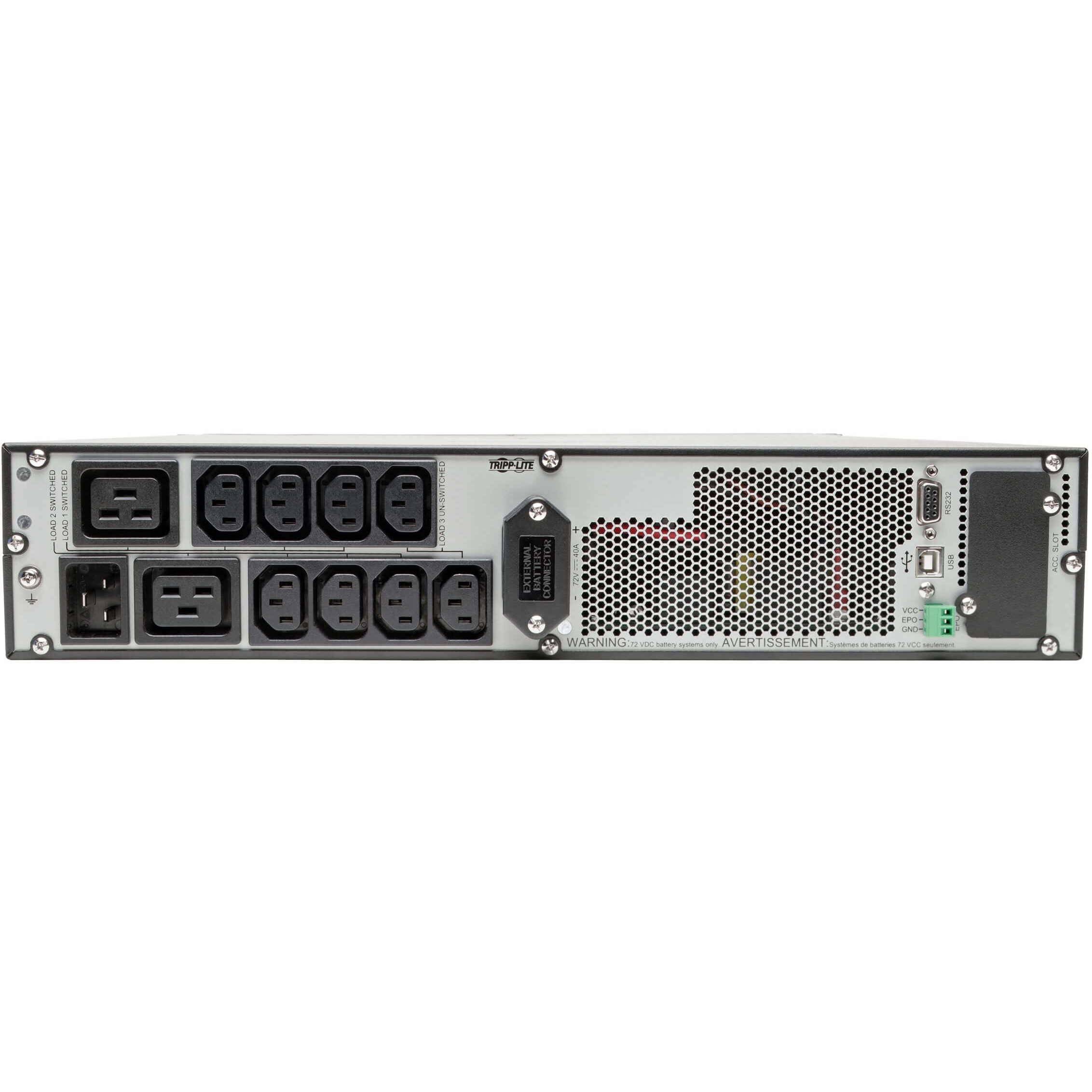

Input Receptacle: C20

Output Receptacles:

  • 2 x C19
  • 8 x C13
Certifications & Standards:
  • UL1778
  • FCC Part 15 Category A (EMI)
  • TAA Compliant
Software Included:
PowerAlert Software
Environmentally Friendly:
Yes
Country of Origin:
China
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0037332149183, 0037332198495, 0800100319329, 4923153173925
UPC: 037332149183, 037332198495, 800100319329
EAN: 0037332149183, 0037332198495, 0800100319329, 4923153173925
UNSPSC: 39121011
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Tripp-Lite SUINT3000RTXL2U Rack is also known as SUINT3000RTXL2U
