Plug/Connector Type:
NEMA 5-15P
Receptacle Type:
NEMA 5-15R
Receptacle Detail:
6 x NEMA 5-15R
Dataline Protection:
RJ-45
Bypass Switch:
Automatic
Emergency Power OFF:
Yes
Transfer Time:
0 ns
Tripp-Lite Parts Accessory Model Overview
Products and parts from Tripp-Lite.
Tripp-Lite SU750RTXL2U Products Overview

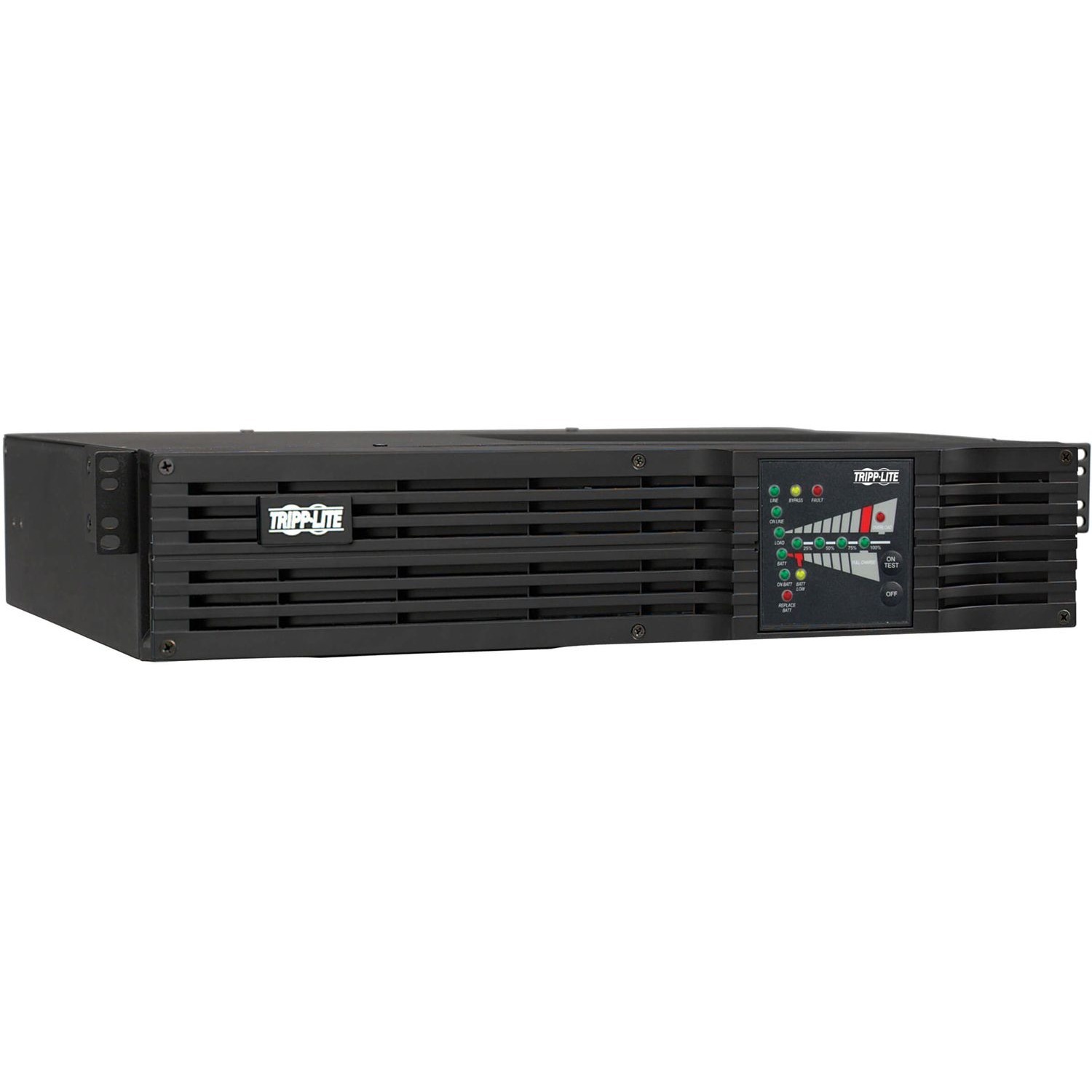

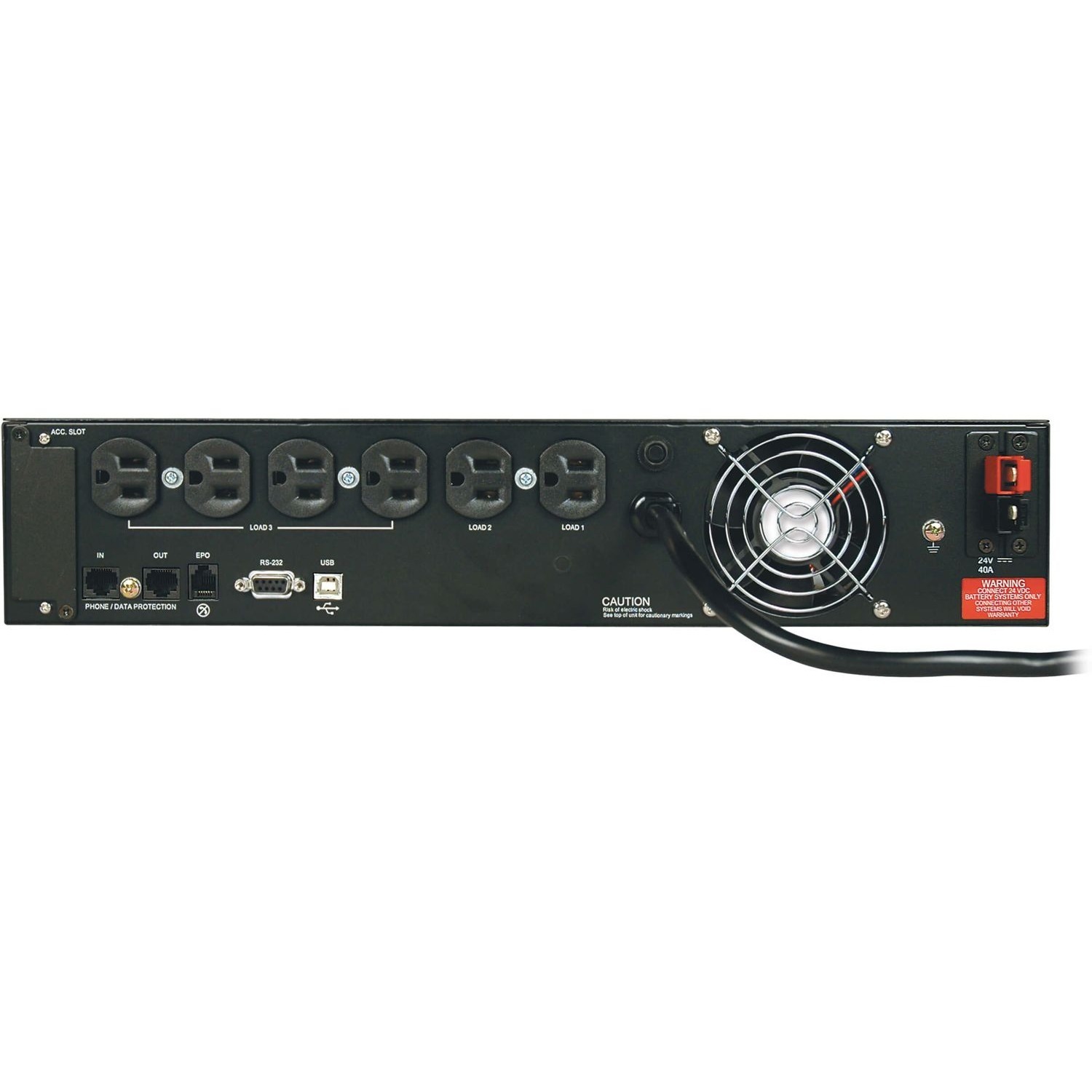

750VA online, double-conversion UPS system for critical server, network and telecommunications equipment. 2U rackmount form factor with an installed depth of only 13.5 inches. Full-time sine wave 100, 110 or 120V output with +/-2% voltage regulation. Online, double-conversion UPS actively converts raw incoming AC power to DC, then re-converts output back to completely regulated, filtered AC output. Operates continuously without using battery power during brownouts to 65V and overvoltages to 150. NEMA 5-15P input plug; NEMA 5-15R output receptacles. Network management interfaces support simultaneous communications via USB port, DB9 serial port and SNMPWEBCARD slot. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Integrated two-bank PDU switching supports load shedding and remote reboot of connected equipment. Dataline surge suppression for dialup, DSL or network Ethernet connection.
Technical Information
Power Description
Load Capacity:
750 VA/600 W
Input Voltage:
110 V AC
Output Voltage:
120 V AC
Management
Network Management:
SNMP Manageable
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Battery Information
Backup/Run Time (Full Load):
4 Minute
Backup/Run Time (Half Load):
11 Minute
Typical Battery Recharge Time:
6 Hour
Hot Swappable:
Yes
Physical Characteristics
Height:
3.5"
Width:
17.5"
Depth:
13.5"
Rack Height:
2U
Form Factor:
Rack/Tower
Weight (Approximate):
29 lb
Miscellaneous
Package Contents:
- SmartOnline Expandable 750VA Tower/Rack Mountable UPS System
- Online Double-Conversion UPS System
- PowerAlert Software and cabling
- Mounting hardware for 4-post rack enclosures
- Instruction manual with warranty information
Additional Information:
- Switches: Includes power off/on switch to enable system turn on (press on switch), UPS battery test (press on switch during normal AC operation), buzzer silence (press on switch during battery operation) and off (press off switch) - all switch functions require that the switch be pressed and held for longer than 2 seconds, but less than 4 seconds
- Low voltage transfer to battery power: Maintains continuous operation during undervoltages as low as 65V (80V at load levels over 70%). Below this switchover point, output is supported from battery-derived AC power
- High voltage transfer to battery power: Maintains continuous operation without using battery power during overvoltages to 138V. Above this point, output is supported from battery-derived AC power
- Cold Start: Yes, inverter can be "cold started" to enable temporary AC output during a power failure
Certifications & Standards:
Tested to UL1778 (USA), CSA (Canada), Class B (EMI)
Software Included:
PowerAlert Software
Country of Origin:
China
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN:
0037332126443, 0818241833147, 4923153173857, 4943783176110
UPC:
037332126443, 767347110006, 818241833147
EAN:
0037332126443, 0818241833147, 4923153173857, 4943783176110
UNSPSC:
39121011
