Tripp-Lite SU6000RT4UTF Products

Tripp-Lite - Tripp Lite UPS Smart Online 6000VA 5400W Rackmount 6kVA 208/240/120V USB DB9 Manual Bypass Hot Swap 6URM - 6U Rack-mountable - 6 Hour Recharge - 2 Minute Stand-by - 208 V AC, 240 V AC Input - 120 V AC, 208 V AC, 240 V AC Output - 8 x NEMA 5-15R, 2 x NEMA 5-15/20R, 4 x NEMA L6-30R, 2 x NEMA L6-20R

Completely user hot-swappable-no service call or technician needed
Included maintenance bypass switch enables live replacement of UPS with zero downtime
Protects rackmount servers, telecom systems and other networking equipment in high-voltage environments
True on-line operation, pure sine wave output and zero transfer time to battery
208/240V input voltage

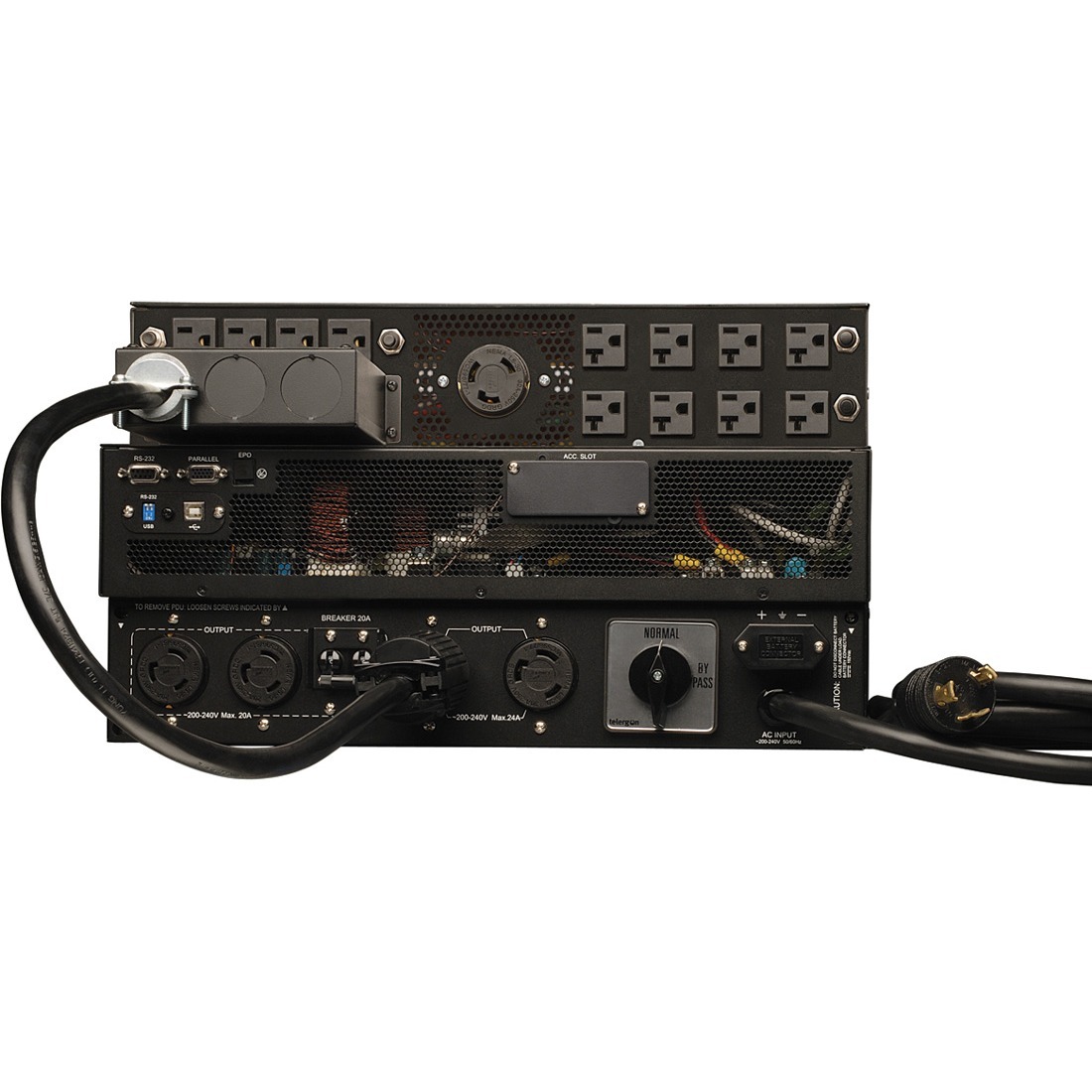

16 outlets (4 5-15R; 8 5-15/20R; 2 L6-20R; 2 L6-30R)
6kVA/5400W capacity in 6U total form factor with power module and independent, detachable PDU
Included 2U low-voltage transformer for total equipment compatibility

Need a different version? See all Tripp-Lite Parts Accessories

$5,936.17

Chat Now for Qty Discount

Add to Quote

Overview

Tripp-Lite Parts Accessory Model Overview

Products and parts from Tripp-Lite.

Tripp-Lite SU6000RT4UTF Products Overview

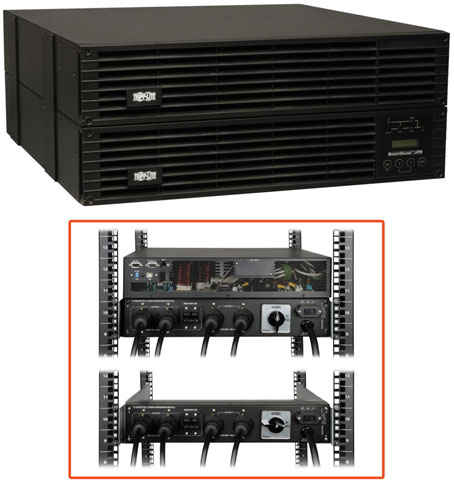

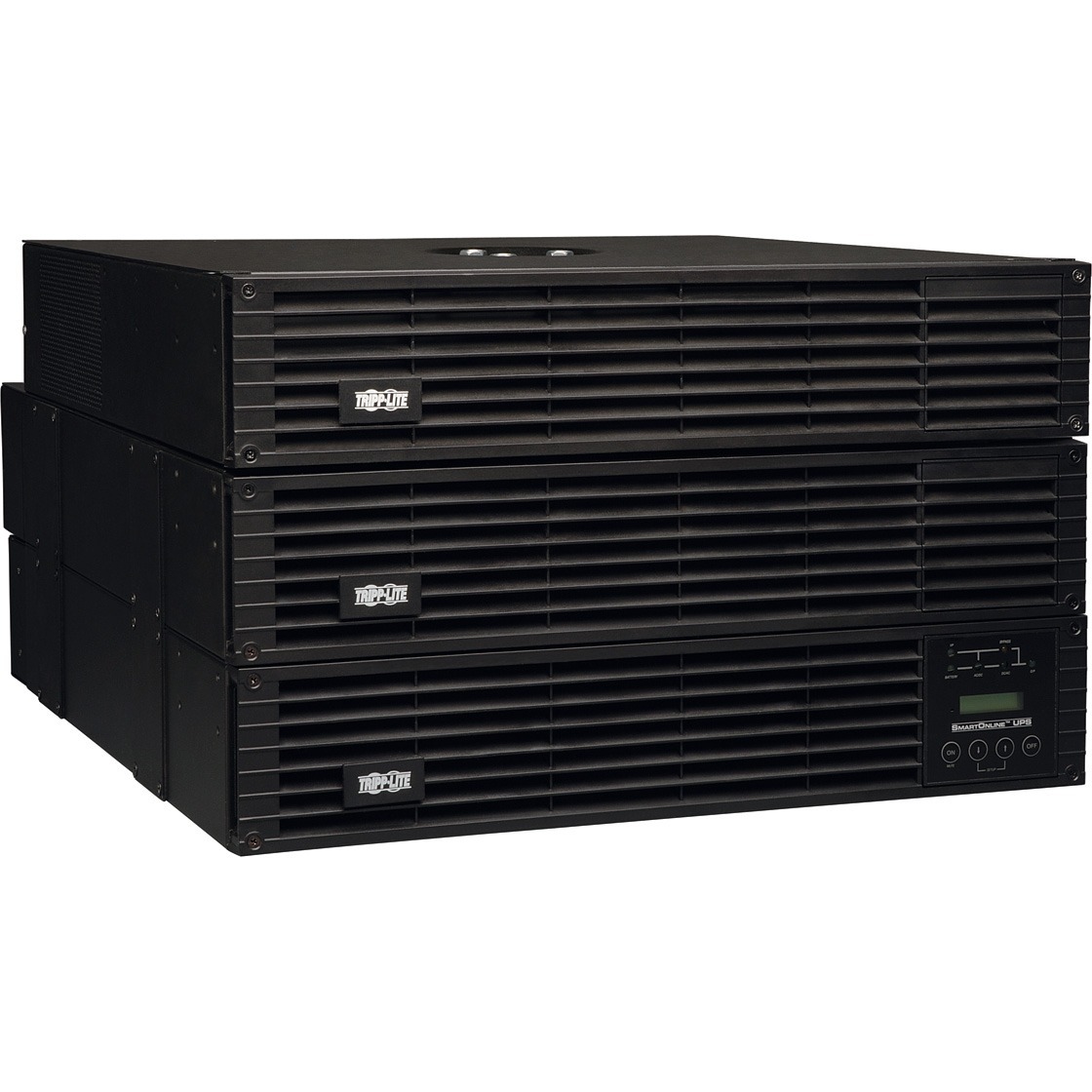

Featuring true on-line operation with pure sine wave output, zero transfer time to battery and complete UPS replacement capability with no downtime, the SU6000RT4UTF provides the highest level of protection available for mission-critical equipment from all power problems. It converts incoming AC power to DC, and re-converts it back to filtered AC output with a pure sine wave, providing ultimate protection. The SU6000RT4UTF has a 6kVA/5400W capacity and 16 AC outlets (4 5-15R; 8 5-15/20R; 2 L6-20R; 2 L6-30R). Using the 2U transformer, the SU6000RT4UTF can support both low- and high-voltage equipment. An LCD display with LED indicators enables IT personnel to monitor operating modes and conditions. The SU6000RT4UTF features a USB port and a DB9 port that, when used with Tripp Lite's included PowerAlert software, provide comprehensive network power monitoring and control. An optional SNMPWEBCARD accessory can enable the UPS to operate as an IP managed device.

Detailed Specs

Technical Information

Plug/Connector Type:

NEMA L6-30P

Receptacle Type:

NEMA 5-15R
NEMA 5-15/20R
NEMA L6-30R
NEMA L6-20R

Receptacle Detail:

8 x NEMA 5-15R
2 x NEMA 5-15/20R
4 x NEMA L6-30R
2 x NEMA L6-20R

Bypass Switch:

Automatic
Manual

Emergency Power OFF:

Yes

Power Description

Load Capacity:

6000 VA/5400 W

Input Voltage:

208 V AC
240 V AC

Output Voltage:

120 V AC
208 V AC
240 V AC

Input Current:

31.90 A

Management

Network Management:

SNMP Manageable

Interfaces/Ports

Serial Port:

Yes

USB:

Yes

Battery Information

Backup/Run Time (Full Load):

2 Minute

Backup/Run Time (Half Load):

8.50 Minute

Typical Battery Recharge Time:

6 Hour

Hot Swappable:

Yes

Physical Characteristics

Height:

6.9"

Width:

17.5"

Depth:

20.1"

Rack Height:

Form Factor:

Rack-mountable

Weight (Approximate):

116.20 lb

Miscellaneous

Package Contents:

SmartOnline EZ SU6000RT4UTF 6000 VA Rack mountable UPS
PowerAlert Software Suite CD
Rail Kit
USB Cable
Serial Cable
EPO Cable

Certifications & Standards:

UL1778
FCC Part 15 Category A
EC 61000-4-5 1995 B Surge Immunity

Software Included:

PowerAlert Software Suite

Environmentally Friendly:

Yes

Country of Origin:

China

Warranty

Limited Warranty:

2 Year

Item Numbers

GTIN: 0032017083813, 0037332157102, 4923153173833

UPC: 032017083813, 037332157102

EAN: 0032017083813, 0037332157102, 4923153173833

UNSPSC: 39121011
