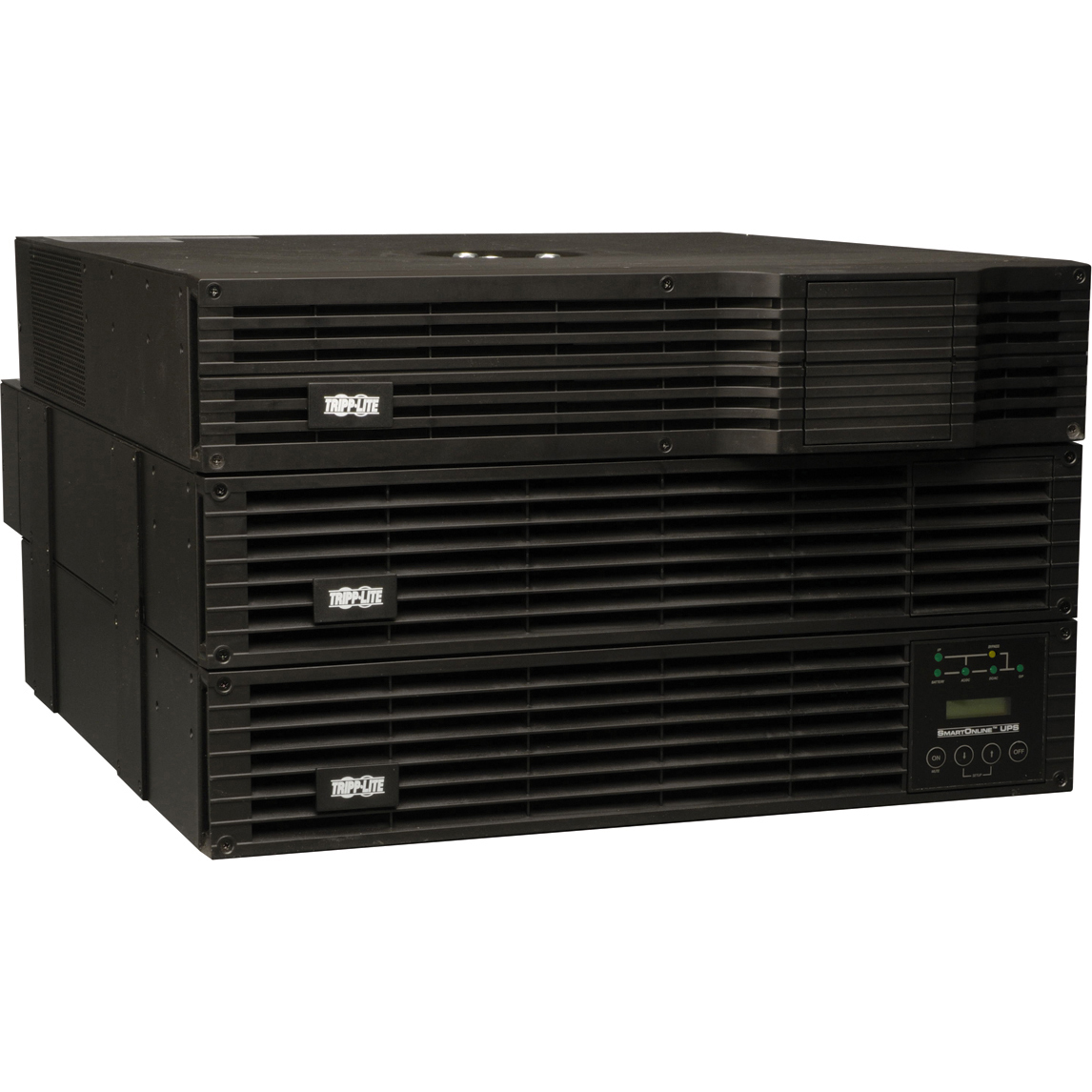

Tripp-Lite SU5000RT4UTF Power Device

Tripp-Lite - Tripp Lite UPS Smart Online 5000VA 4500W Rackmount 5kVA 208V/120V USB DB9 6URM - 6U Rack/Tower - 6 Hour Recharge - 3.50 Minute Stand-by - 208 V AC Input - 120 V AC, 208 V AC Output - 2 x NEMA L6-20R, 2 x NEMA L6-30R, 12 x NEMA 5-15/20R
  • 5kVA / 5000VA / 4500 watt on-line double-conversion UPS; 0.9 power factor
  • 208/120V 60Hz output; high efficiency economy mode option
  • 6U Rack/Tower compatible; Hot swappable battery modules
  • USB, RS232 & EPO ports; support for SNMP/WEB and contact-closure card options
Read More
$5,289.71
Add to Quote
Tripp-Lite Parts Accessory Model Overview
Products and parts from Tripp-Lite.
Tripp-Lite SU5000RT4UTF Power Device Overview

Tripp Lite SU5000RT4UTF 5000VA / 5kVA / 4500 watt on-line, double-conversion UPS system offers complete power protection for critical server, network and telecommunications equipment in a 6U rack/tower configuration. Maintains full-time sine wave output within 2% of 208 and 120V nominal at 60Hz during brownouts as low 100V and overvoltages as high as 300V. Double-conversion operation converts raw input from AC to DC, then resynthesizes output power back to perfect sine wave AC with enhanced protection from harmonic distortion, fast electrical impulses and other hard-to-solve power problems not addressed by other UPS types. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Front panel LEDs and LCD readout with scroll controls support front-panel visual monitoring of all major UPS functions. L6-30P input, plus 2 L6-30R, 2 L6-20R and 12 5-15/20R outlets.

Technical Information

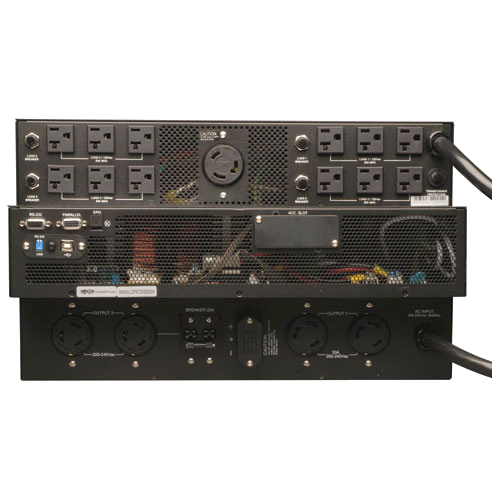

Plug/Connector Type:
NEMA L6-30P
Receptacle Type:
  • NEMA L6-20R
  • NEMA L6-30R
  • NEMA 5-15/20R
Receptacle Detail:
  • 2 x NEMA L6-20R
  • 2 x NEMA L6-30R
  • 12 x NEMA 5-15/20R
Power Description
Load Capacity:
5000 VA
Input Voltage:
208 V AC
Output Voltage:
  • 120 V AC
  • 208 V AC
Input Frequency:
60 Hz
Output Frequency:
60 Hz
Input Current:
24 A
Management
Network Management:
SNMP Manageable
Bypass Switch:
Automatic
Emergency Power OFF:
Yes
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Battery Information
Backup/Run Time (Full Load):
3.50 Minute
Backup/Run Time (Half Load):
11 Minute
Typical Battery Recharge Time:
6 Hour
Physical Characteristics
Form Factor:
Rack/Tower
Rack Height:
6U
Height:
6.9"
Width:
17.5"
Depth:
21"
Weight (Approximate):
113.60 lb
Miscellaneous
Package Contents:
  • SmartOnline E SU5000RT4UTF 5kVA Tower/Rack-Mountable UPS
  • PowerAlert Software CD-ROM
  • USB Cable
  • Serial Cable
  • EPO Cable
  • 2 x Sets of Adjustable 4 Post Rack Rails
Software Included:
PowerAlert Software
Environmentally Friendly:
Yes
Country of Origin:
China
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0032017087026, 0037332157140
UPC: 032017087026, 037332157140
EAN: 0032017087026, 0037332157140
UNSPSC: 39121011
