Tripp-Lite SU5000RT4UHV Power Device

Part Number: SU5000RT4UHV
Model: Parts
to get Free Ground Shipping on your order.
Add to My Shopping List Add to Compare
$4,670.80

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Plug/Connector Type
NEMA L6-30P
Receptacle Type
NEMA L6-20RNEMA L6-30R
Receptacle Detail
2 x NEMA L6-20R2 x NEMA L6-30R
Load Capacity
5000 VA

Product Description:

  Power Systems & Supplies, Tripp-Lite, SmartOnline 208/240V 5kVA 4.5kW Double-Conversion UPS, 4U Rack/Tower, Extended Run, Network Card Options, USB, DB9 Serial
Explore all Tripp-Lite Parts Accessories
Add to Quote
Tripp-Lite SU5000RT4UHV Power Device
Tripp-Lite SU5000RT4UHV Power Device
Tripp-Lite SU5000RT4UHV Power Device Tripp-Lite SU5000RT4UHV Power Device

Tripp-Lite Parts Accessory Model Overview

Products and parts from Tripp-Lite.
Tripp-Lite SU5000RT4UHV Power Device Overview

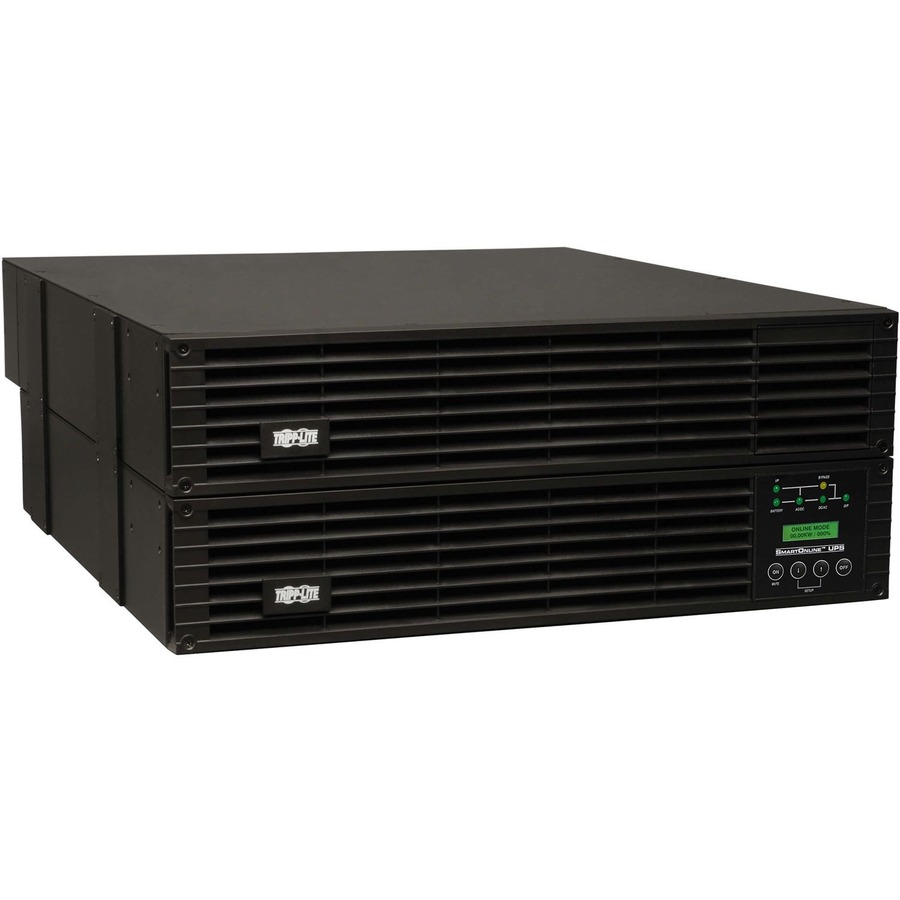

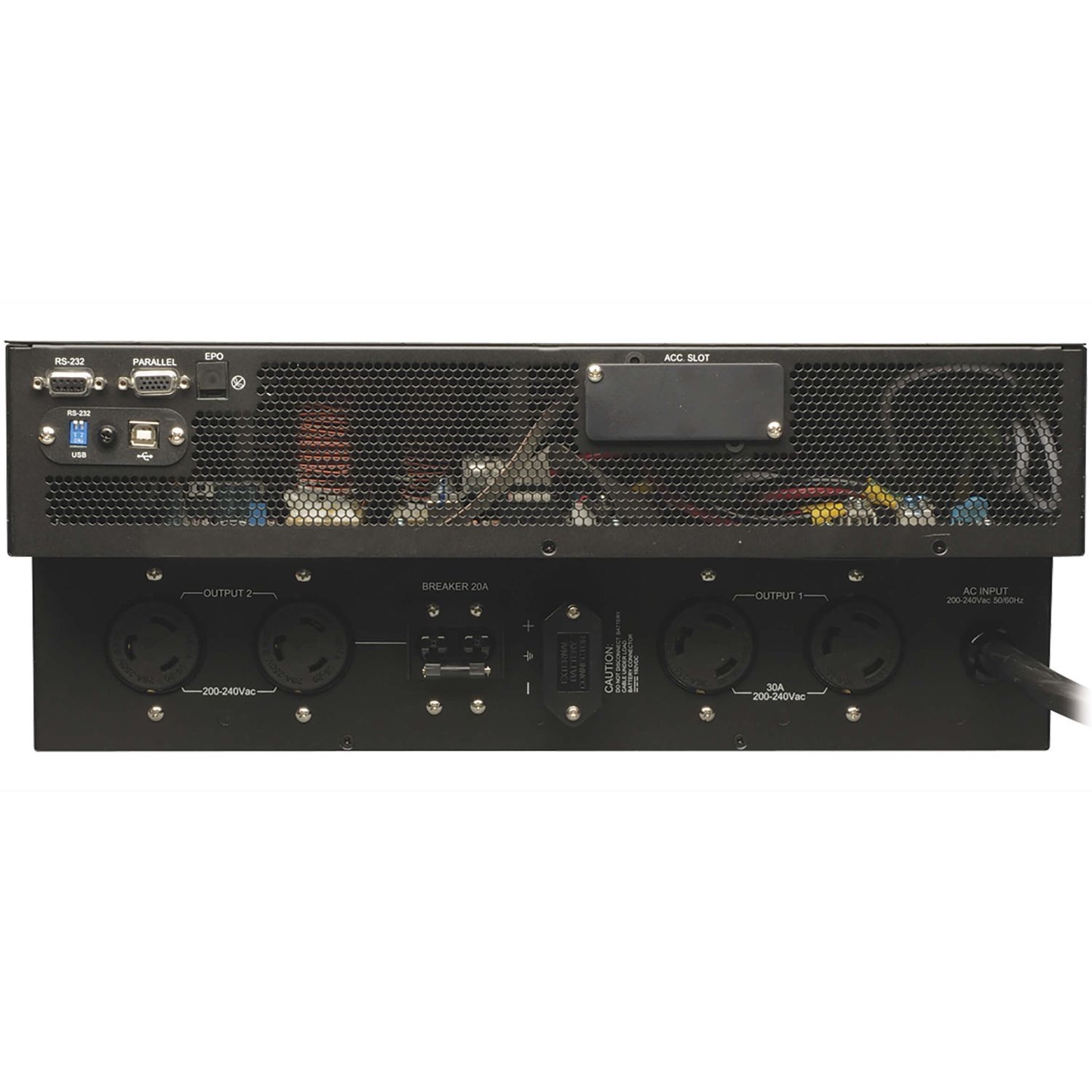

Tripp Lite SU5000RT4UHV 5000VA / 5kVA / 4500 watt on-line, double-conversion UPS system offers complete power protection for critical server, network and telecommunications equipment in a single 4U rack/tower compatible housing. Single all-in-one rack / tower housing installs in only 4 rack spaces (4U) with a maximum installed depth of only 20.7 in. / 52.6 cm. Maintains full-time sine wave output within 2% of selectable 200/208/220/230/240V nominal during brownouts as low 100V and overvoltages as high as 300V. Double-conversion operation converts raw input from AC to DC, then resynthesizes output power back to perfect sine wave AC. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Front panel LEDs and LCD readout with scroll controls support front-panel visual monitoring. L6-30P input, plus two L6-30R and two L6-20R outlets.

Technical Information
Plug/Connector Type:
NEMA L6-30P
Receptacle Type:
  • NEMA L6-20R
  • NEMA L6-30R
Receptacle Detail:
  • 2 x NEMA L6-20R
  • 2 x NEMA L6-30R
Power Description
Load Capacity:
5000 VA
Input Voltage:
220 V AC
Output Voltage:
  • 200 V AC
  • 208 V AC
  • 220 V AC
  • 230 V AC
  • 240 V AC
Output Frequency:
50 Hz
Input Current:
24 A
Management
Network Management:
SNMP Manageable
Bypass Switch:
Automatic
Emergency Power OFF:
Yes
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Battery Information
Backup/Run Time (Full Load):
3.50 Minute
Backup/Run Time (Half Load):
11 Minute
Typical Battery Recharge Time:
6 Hour
Physical Characteristics
Form Factor:
Rack/Tower
Rack Height:
4U
Height:
6.9"
Width:
17.5"
Depth:
21"
Weight (Approximate):
113.60 lb
Miscellaneous
Package Contents:
  • SmartOnline E SU5000RT4UHV 5kVA Tower/Rack-Mountable UPS
  • PowerAlert Software CD-ROM
  • USB Cable
  • Serial Cable
  • EPO Cable
  • 4 Post 19" Rackmount Kit
Software Included:
PowerAlert Software
Environmentally Friendly:
Yes
Country of Origin:
China
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0037332146823
UPC: 037332146823
EAN: 0037332146823
UNSPSC: 39121011
