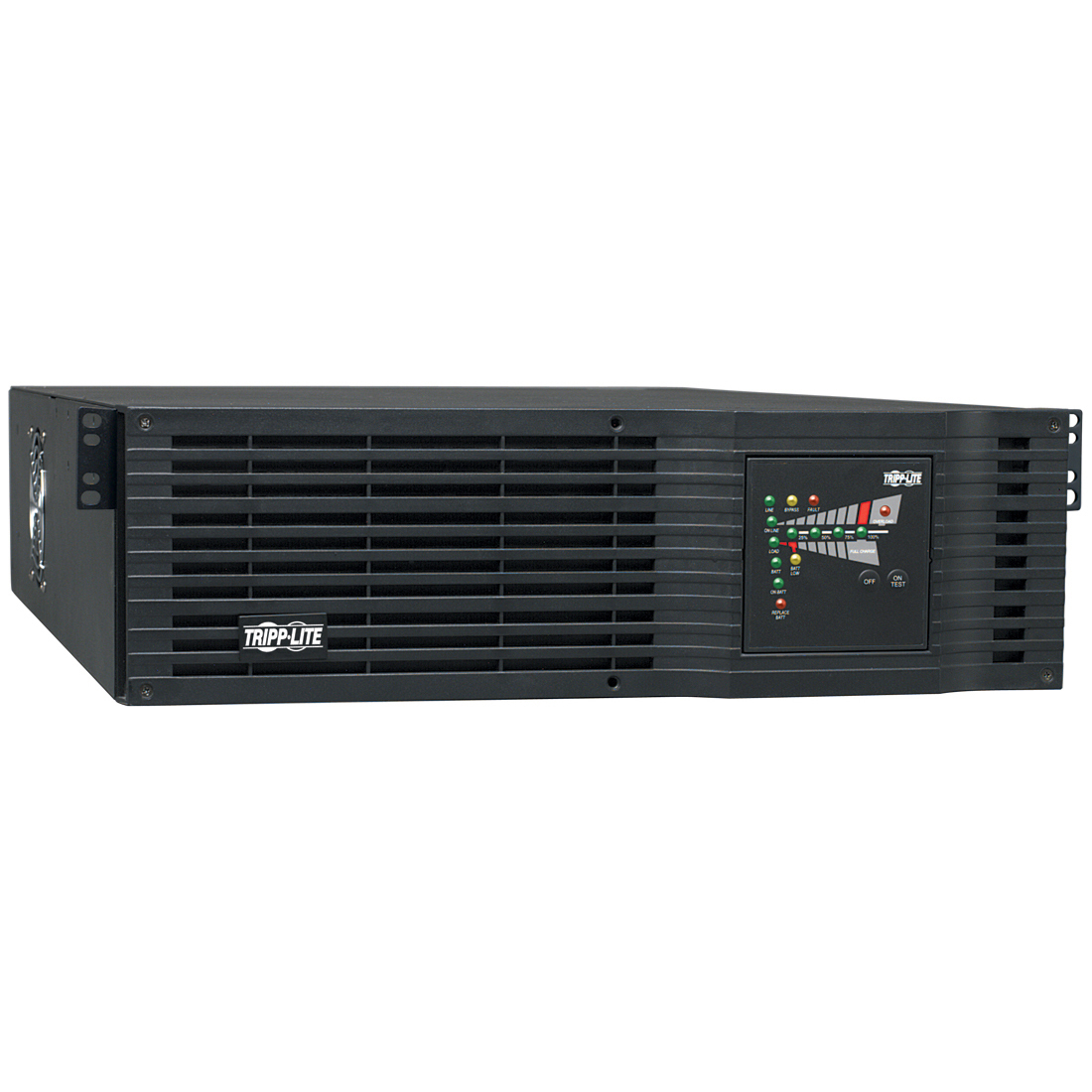

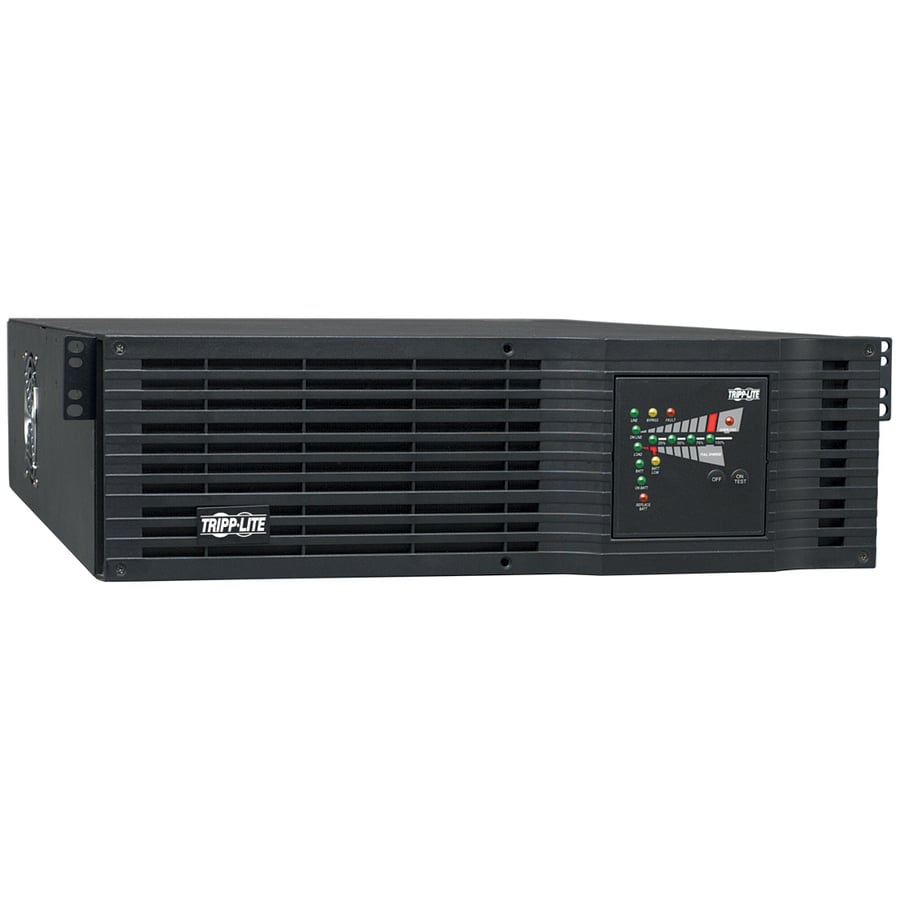

Tripp-Lite SU3000RTXR3U Power Device

Part Number: SU3000RTXR3U
Model: UPS
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Plug/Connector Type
NEMA L5-30P
Receptacle Type
NEMA 5-15RNEMA 5-15/20RNEMA L5-30R
Receptacle Detail
4 x NEMA 5-15R4 x NEMA 5-15/20R1 x NEMA L5-30R
Dataline Protection
RJ-45RJ-11

Product Description:

  Power Systems & Supplies, Tripp-Lite, SmartOnline 120V 3kVA 2.4kW Double-Conversion UPS, 3U, Extended Run, Oversize Batteries, Network Card Slot, USB, DB9
Explore all Tripp-Lite UPS Accessories
Add to Quote
Tripp-Lite SU3000RTXR3U Power Device
Tripp-Lite SU3000RTXR3U Power Device
Tripp-Lite SU3000RTXR3U Power Device
Tripp-Lite SU3000RTXR3U Power Device Tripp-Lite SU3000RTXR3U Power Device Tripp-Lite SU3000RTXR3U Power Device

Tripp-Lite UPS Accessory Model Overview

Tripp-Lite UPS and Power Supply products.
Tripp-Lite SU3000RTXR3U Power Device Overview

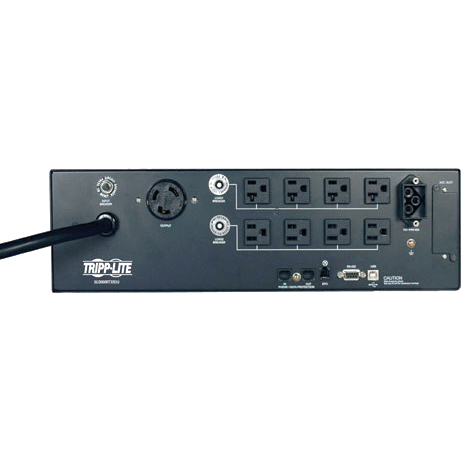

3000VA / 3kVA online, double-conversion UPS system for critical server, network and telecommunications equipment. "XR" configuration offers twice the battery capacity as comparable "XL" version. Full time sine wave 110 or 120V output with +/-2% voltage regulation. Online, double-conversion UPS actively converts raw incoming AC power to DC, then re-converts output back to completely regulated, filtered AC output. Operates continuously without using battery power during brownouts to 65V and overvoltages to 150V. NEMA L5-30P input plug. NEMA 5-15R, NEMA 5-15/20R and NEMA L5-30R output receptacles. Network management interfaces support simultaneous communications via USB port, DB9 serial port and SNMPWEBCARD slot. Includes USB and DB9 serial ports. Built-in DB9 port offers both enhanced RS-232 enabled monitoring data, plus contact closure monitoring ability. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X.

Technical Information
Plug/Connector Type:
NEMA L5-30P
Receptacle Type:
  • NEMA 5-15R
  • NEMA 5-15/20R
  • NEMA L5-30R
Receptacle Detail:
  • 4 x NEMA 5-15R
  • 4 x NEMA 5-15/20R
  • 1 x NEMA L5-30R
Dataline Protection:
  • RJ-45
  • RJ-11
Bypass Switch:
Automatic
Emergency Power OFF:
Yes
Cord Length:
10 ft
Power Description
Load Capacity:
3000 VA/2400 W
Input Voltage:
110 V AC
Output Voltage:
120 V AC
Input Current:
24 A
Waveform Type:
Sine Wave
Surge Energy Rating:
480 J
Circuit Breaker:
Yes
Management
Network Management:
SNMP Manageable
Alarm:
  • Backup
  • Low Battery
  • Overload
  • UPS Fault
  • Frequency Error
  • High AC Input
Controls/Indicators
Status Indicators:

LED Status Display:

  • Online (Green)
  • On Battery (Green)
  • Line Power (Green)
  • Bypass (Yellow)
  • Battery Low (Yellow)
  • Overload (Red)
  • 4 Led Load / Battery Level Display (100%, 75%, 50%, 25%)
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Battery Information
Backup/Run Time (Full Load):
14 Minute
Backup/Run Time (Half Load):
33 Minute
Battery Life:
6 Year
Typical Battery Recharge Time:
6 Hour
Hot Swappable:
Yes
Environmental Conditions
Maximum Operating Temperature:
122°F (50°C)
Physical Characteristics
Product Color:
Black
Height:
5.3"
Width:
17.8"
Depth:
26"
Rack Height:
3U
Form Factor:
Rack/Tower
Weight (Approximate):
111.33 lb
Miscellaneous
Package Contents:
  • SmartOnline SU3000RTXR3U 3000VA Tower/Rack Mounting UPS
  • SU3000RTXR3U SmartOnline High Power Density UPS System
  • PowerAlert Software CD and cabling
  • Owner's manual with warranty information
Additional Information:
  • Low Voltage Transfer to Battery Power: 65V
  • High Voltage Transfer to Battery Power: 138V

Switches:

  • Power Off/On Switch
  • UPS Battery Test
  • Buzzer Silence
Certifications & Standards:
  • Tested to UL1778 (USA)
  • CSA C22.2 No. 107.3 (Canada)
  • NOM (Mexico)
  • Class A (Emissions)
  • FCC Part 68 / Industry Canada (telecommunications)
Software Included:
PowerAlert Software
Country of Origin:
China
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0012302523095, 0037332125422, 0087944522294
UPC: 012302523095, 037332125422, 087944522294
EAN: 0012302523095, 0037332125422, 0087944522294
UNSPSC: 39121011
