Tripp-Lite SU2200XLCD Accessory

Tripp-Lite - Tripp Lite UPS Smart Online 2200VA 1800W Tower 120V LCD USB DB9 Extended Run - Tower - 3 Hour Recharge - 4.50 Minute Stand-by - 100 V AC, 110 V AC, 115 V AC, 120 V AC, 127 V AC Input - 100 V AC, 127 V AC Output - 1 x NEMA L5-20R, 6 x NEMA 5-15/20R
  • Provides pure sine wave output in education, healthcare, military, government and other IT applications in small or mid-size networks
  • Updated design for 2023
  • Protects equipment against blackouts, brownouts, transient surges and line noise
  • Keeps equipment running during outages to allow time for file saves and safe shutdown
  • Zero transfer time between on-line and battery modes for uninterrupted operation
  • Optional WEBCARDLXE network card enables full remote access and control
  • Menu-driven LCD keeps you up to date with status info and other vital analytics
  • 2-year limited warranty & $250,000 Ultimate Lifetime Insurance
Read More
$1,696.51
In Stock
Add to Quote
Tripp-Lite Parts Accessory Model Overview
Products and parts from Tripp-Lite.
Tripp-Lite SU2200XLCD Accessory Overview
Double-Conversion UPS Protects Equipment Against Damage, Downtime and Data Loss

This on-line double-conversion UPS system maintains perfect output by converting AC input to DC, then reconverting UPS output to fully regulated sine wave AC. Constant on-line operation isolates sensitive equipment from power problems on the AC line. The SmartOnline® SU2200XLCD provides the highest level of power protection and battery backup for education, healthcare, military, government and other mission-critical IT applications where space is limited, but premium power reliability is essential.

Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages

The field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Zero transfer time between on-line and battery modes maintains continuous operation of connected equipment without interruption or rebooting. Extra runtime is available by connecting up to four optional extended battery modules (BP96V, sold separately).

Optional LX Platform Network Management Card Allows Remote Access 24/7

The WEBCARDLXE network interface (sold separately) enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. The IP-based Auto Probe feature ensures continuous network uptime by communicating with other network devices, detecting lost connectivity and automatically rebooting IT equipment. Optional EnviroSense2 modules (E2MT, E2MTDO and E2MTHDI, all sold separately) provide a variety of environmental monitoring and control options.

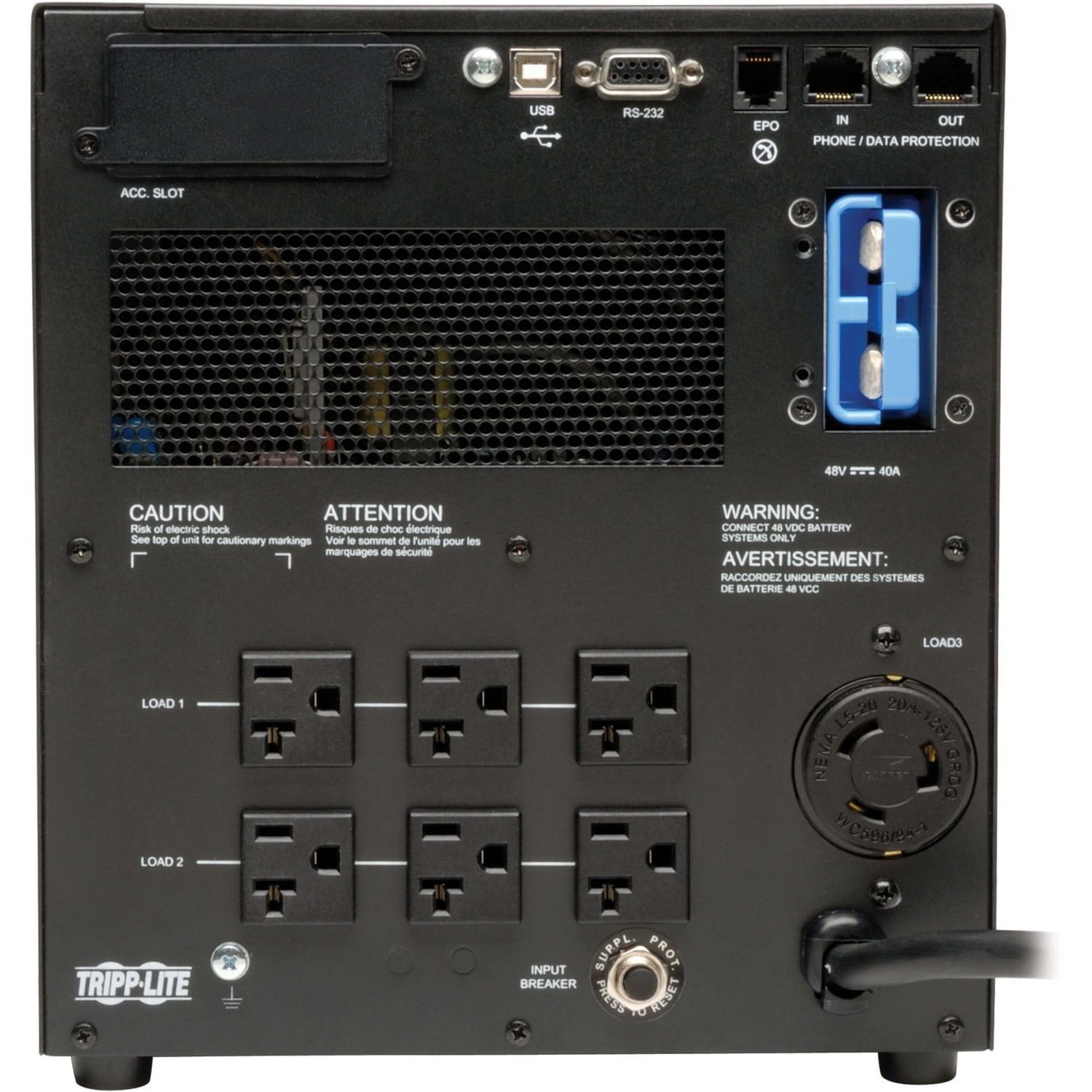

NEMA Outlets Protect Your Connected Components

One L5-20R and six 5-20R outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. Four 5-20R outlets and the L5-20R are grouped into two load banks that let you shed non-critical loads to extend runtime for critical loads.

Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better

This UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer.

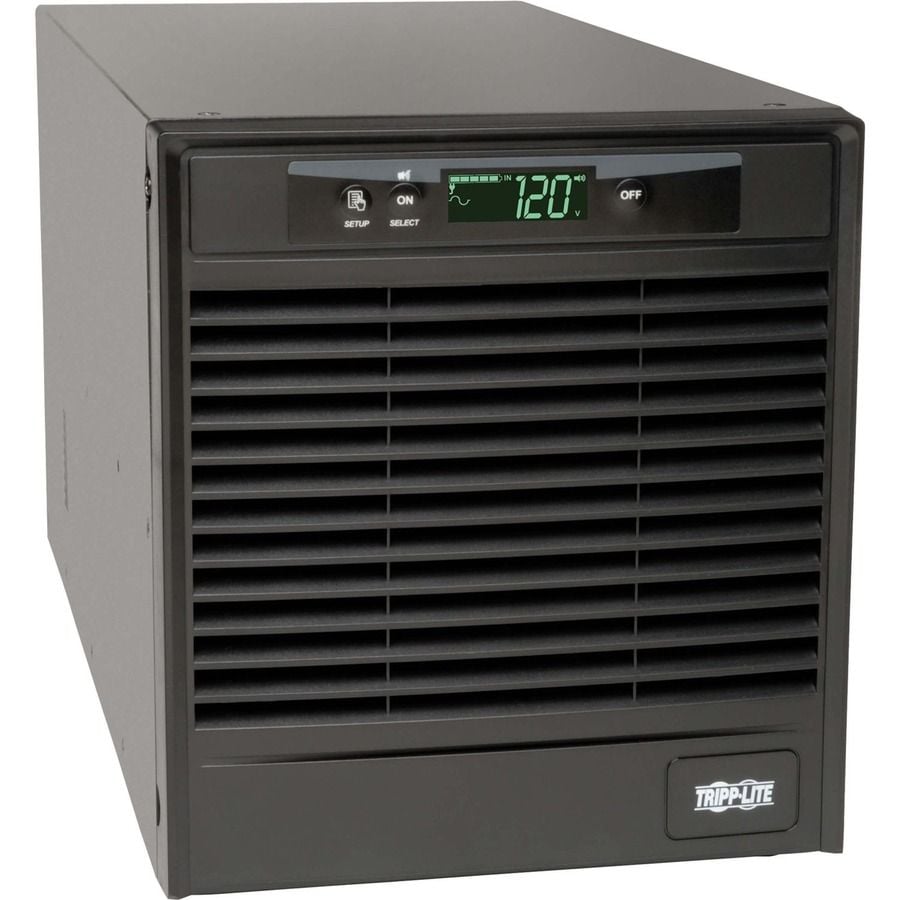

Clear LCD Interface Keeps You Informed at a Glance

The menu-driven front-panel LCD provides detailed alarms and notifications to help diagnose any issues. It provides system status, event logs, battery and power module status, usage analytics, serial number, firmware update info and more. Audible alarms can be disabled through the front menu when the UPS goes to battery power.

Advanced Communications Ports Allow for Automatic Saves and Shutdowns

RS-232 and USB ports connect to a device for a variety of communication options (cables are included). A dry-contact relay port can be programmed through the LCD to provide reliable communications to automation and industrial components. The RPO/ROO port permits emergency shutdown or remote restart of all connected equipment.

Technical Information
Plug/Connector Type:
NEMA 5-20P
Receptacle Type:
  • NEMA L5-20R
  • NEMA 5-15/20R
Receptacle Detail:
  • 1 x NEMA L5-20R
  • 6 x NEMA 5-15/20R
Bypass Switch:
Automatic
Emergency Power OFF:
Yes
Transfer Time:
0 ns
Power Description
Load Capacity:
2200 VA/1800 W
Input Voltage:
  • 100 V AC
  • 110 V AC
  • 115 V AC
  • 120 V AC
  • 127 V AC
Output Voltage:
  • 100 V AC
  • 110 V AC
  • 115 V AC
  • 120 V AC
  • 127 V AC
Management
Network Management:
SNMP Manageable
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Battery Information
Backup/Run Time (Full Load):
4.50 Minute
Backup/Run Time (Half Load):
13 Minute
Typical Battery Recharge Time:
3 Hour
Hot Swappable:
Yes
Physical Characteristics
Height:
10.2"
Width:
9"
Depth:
19.5"
Form Factor:
Tower
Weight (Approximate):
52.90 lb
Miscellaneous

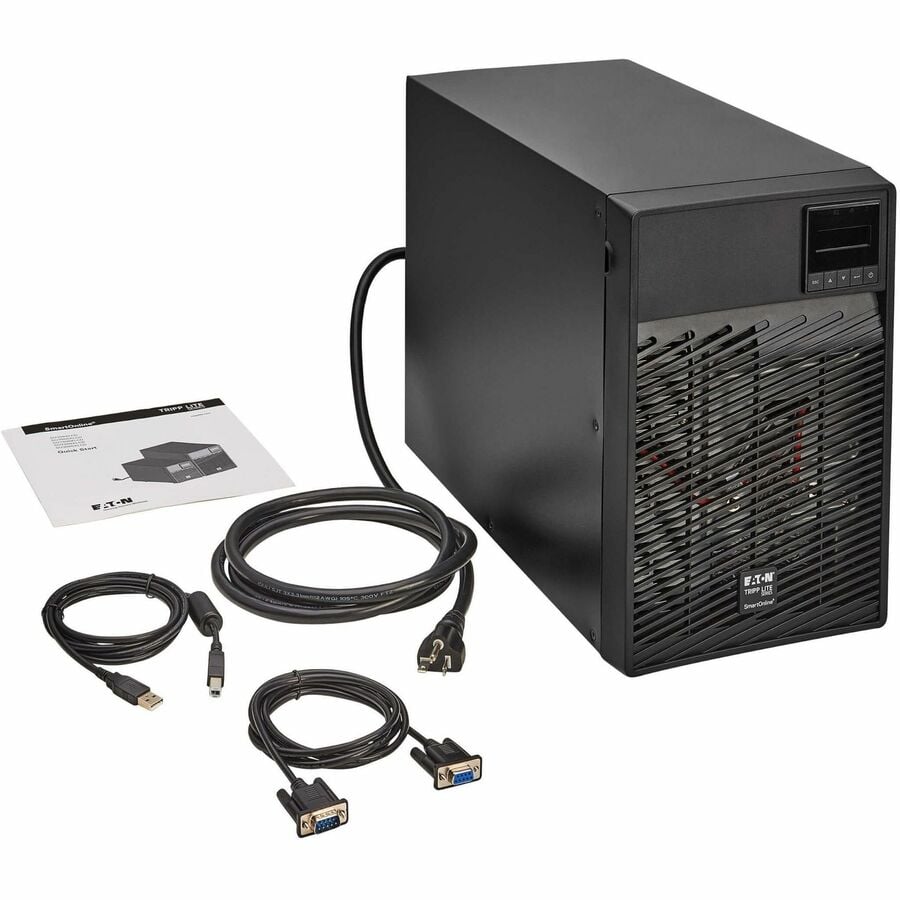

Package Contents:
  • SmartOnline SU2200XLCD 2200VA Tower UPS
  • PowerAlert Software CD
  • USB and DB9 Cabling
  • Owner's Manual with Warranty Information
  • EPO (Emergency Power Off) Cabling
Certifications & Standards:
  • UL1778
  • CSA
  • NOM
  • FCC Part 15
  • EMI
Software Included:
PowerAlert Software
Country of Origin:
China
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0012300074971, 0037332174659, 0373321746590, 4923153174205
UPC: 012300074971, 037332174659, 373321746590
EAN: 0012300074971, 0037332174659, 0373321746590, 4923153174205
UNSPSC: 39121011
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Tripp-Lite SU2200XLCD Accessory is also known as SU2200XLCD
