Tripp-Lite SU2200RTXL2UA Products

The Tripp-Lite SU2200RTXL2UA Products has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Tripp-Lite - Tripp Lite UPS Smart Online 2200VA 1600W Rackmount 110V/120V USB DB9 2URM - 2200VA/1600W - 4.5 Minute Full Load - 6 x NEMA 5-15/20R - Battery/Surge-protected, 1 x NEMA L5-20R - Battery/Surge-protected
  • 2200VA / 2.2kVA / 1600 watt on-line double-conversion 2U rack/tower UPS
  • 110/120V +/-2% output at 50/60Hz, high efficiency economy mode option
  • Expandable runtime, Hot-swap batteries; 19 in / 48.3cm installed depth
  • USB, RS232 & EPO ports; support for SNMP/WEB card options
Read More

Need a different version? See all Tripp-Lite Parts Accessories

Discontinued Need Assistance?
Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Tripp-Lite SU2200RTXL2UA Products
Tripp-Lite SU2200RTXL2UA Products
Tripp-Lite SU2200RTXL2UA Products
Tripp-Lite SU2200RTXL2UA Products
Tripp-Lite SU2200RTXL2UA Products
Tripp-Lite SU2200RTXL2UA Products Tripp-Lite SU2200RTXL2UA Products Tripp-Lite SU2200RTXL2UA Products Tripp-Lite SU2200RTXL2UA Products Tripp-Lite SU2200RTXL2UA Products
Tripp-Lite Parts Accessory Model Overview
Products and parts from Tripp-Lite.
Tripp-Lite SU2200RTXL2UA Products Overview

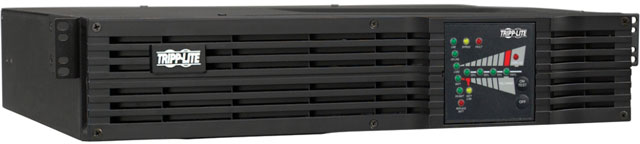

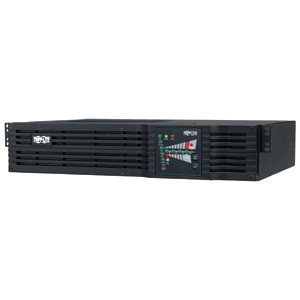

SmartOnline SU2200RTXL2UA 2200VA Tower/Rack Mountable UPS ideal for protection of critical 120V equipment in server rooms, internetworking closets and telecommunications systems in rack mount or tower applications. Common applications include corporate or departmental servers, workstations, hubs, routers, bridges, CAD/CAM workstations, concentrators, IP telephony and traditional PBX switching systems.

Technical Information
Plug/Connector Type:
NEMA 5-20P
Receptacles:
  • 1 x NEMA 5-15/20R
  • 6 x NEMA L5-20R
Dataline Protection:
RJ-45
Emergency Power OFF:
Yes
Power Description
Load Capacity:
2200 VA/1600 W
Input Voltage:
  • 110 V AC
  • 120 V AC
Output Voltage:
  • 110 V AC
  • 120 V AC
Input Current:
16 A
Management
Network Management:
SNMP Manageable
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Battery Information
Backup/Run Time (Full Load):
4.50 Minute
Backup/Run Time (Half Load):
14 Minute
Typical Battery Recharge Time:
5 Hour
Hot Swappable:
Yes
Physical Characteristics
Height:
3.5"
Width:
17.5"
Depth:
19"
Rack Height:
2U
Form Factor:
Tower
Weight (Approximate):
47.40 lb
Miscellaneous
Package Contents:
  • SmartOnline SU2200RTXL2UA 2200VA Tower/Rack Mountable UPS
  • PowerAlert software CD-ROM and complete cabling
  • Mounting hardware for 4 post rack enclosures
  • Instruction manual with warranty information
Certifications & Standards:
  • Tested to UL1778 (USA)
  • CSA C22.2 No. 107.3 (Canada)
  • NOM (Mexico)
  • Class A (emissions)
  • FCC Part 68 / Industry Canada
Software Included:
PowerAlert UPS Monitoring Software
Country of Origin:
China
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0000060029980, 0037332042224, 0743406376088, 0818241587163
UPC: 000060029980, 037332042224, 743406376088, 818241587163
EAN: 0000060029980, 0037332042224, 0743406376088, 0818241587163
UNSPSC: 39121011
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Tripp-Lite SU2200RTXL2UA Products is also known as SU2200RTXL2UA
