Tripp-Lite SU1500XL Products

The Tripp-Lite SU1500XL Products has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Tripp-Lite - Tripp Lite UPS Smart Online 1500VA 1200W Tower 100V-120V USB DB9 SNMP RT - 1500VA/1200W - 4.5 Minute Full Load - 6 x NEMA 5-15R

1500VA / 1.5kVA / 1200 watt on-line double-conversion tower UPS
110/120V +/-2% output at 50/60Hz, high efficiency economy mode option
Expandable runtime, Hot-swappable battery modules
USB, RS232 & EPO ports; support for SNMP/WEB card options
Front panel status LEDs with detailed load and battery metering
2 independently switchable output load banks
NEMA 5-15P input; 5-15R outlets

Need a different version? See all Tripp-Lite Parts Accessories

Discontinued Need Assistance?

Chat Now for Qty Discount

Add to Quote

Overview

Tripp-Lite Parts Accessory Model Overview

Products and parts from Tripp-Lite.

Tripp-Lite SU1500XL Products Overview

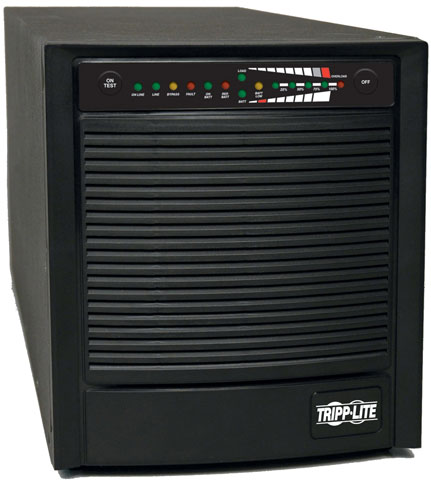

Tripp Lite's SmartOnline SU1500XL on-line, double conversion UPS protects critical server, networking or telecommunications equipment from blackouts, brownouts, voltage fluctuations and surges. Large-capacity 1.5kVA/1200W UPS continuously converts incoming AC to DC, then back to perfect sine wave AC output at 120V AC (+/-2%). Includes 6 UPS-supported outlets. 2 load banks, each with 3 outlets, can be independently controlled via a software interface to selectively reboot remote equipment or automatically shed less critical loads to extend battery runtime for the most critical equipment. Includes slot for internal SNMP/web card, plus DB9 enhanced serial monitoring port for unattended shutdown, remote control and monitoring of UPS system and power data. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Includes Tripp Lite's PowerAlert UPS Power Management Software.

Detailed Specs

Technical Information

Plug/Connector Type:

NEMA 5-15P

Receptacle Type:

NEMA 5-15R

Receptacle Detail:

6 x NEMA 5-15R

Dataline Protection:

RJ-45

Bypass Switch:

Automatic

Emergency Power OFF:

Yes

Power Description

Load Capacity:

1500 VA/1200 W

Input Voltage:

100 V AC
110 V AC
120 V AC

Output Voltage:

120 V AC

Management

Network Management:

SNMP Manageable

Interfaces/Ports

Serial Port:

Yes

USB:

Yes

Battery Information

Backup/Run Time (Full Load):

4.50 Minute

Backup/Run Time (Half Load):

14 Minute

Typical Battery Recharge Time:

6 Hour

Hot Swappable:

Yes

Physical Characteristics

Height:

10.3"

Width:

Depth:

19.5"

Form Factor:

Tower

Weight (Approximate):

49.30 lb

Miscellaneous

Package Contents:

SmartOnline SU1500XL 1500VA Tower UPS
SU1500XL UPS System
PowerAlert Software
USB, DB9 and EPO cabling
Owner's manual with warranty information

Additional Information:

Two built-in, individually switchable load banks, can be controlled via software interface to selectively reboot remote equipment or automatically shed less critical loads to extend battery runtime for the most critical equipment
Diagnostic LEDs
Removes harmonic distortion, electrical impulses, frequency variations and other hard-to-solve power problems

Certifications & Standards:

UL1778 (USA), CSA (Canada), RoHS-compliant, Class A (Emissions), NOM (Mexico), FCC Part 68/Industry Canada

Software Included:

PowerAlert Software

Environmentally Friendly:

Yes

Country of Origin:

China

Warranty

Limited Warranty:

2 Year

Item Numbers

GTIN: 0037332125859, 0072090770620, 0763190309963, 4923153173741

UPC: 037332125859, 072090770620, 087944509370, 763190309963

EAN: 0037332125859, 0072090770620, 0763190309963, 4923153173741

UNSPSC: 39121011
