Tripp-Lite SU1000RTXL2UA Products

The Tripp-Lite SU1000RTXL2UA Products has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

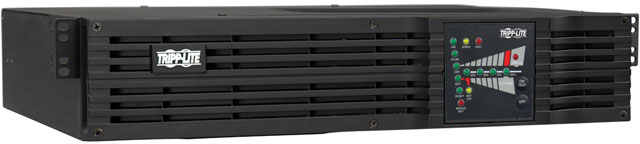

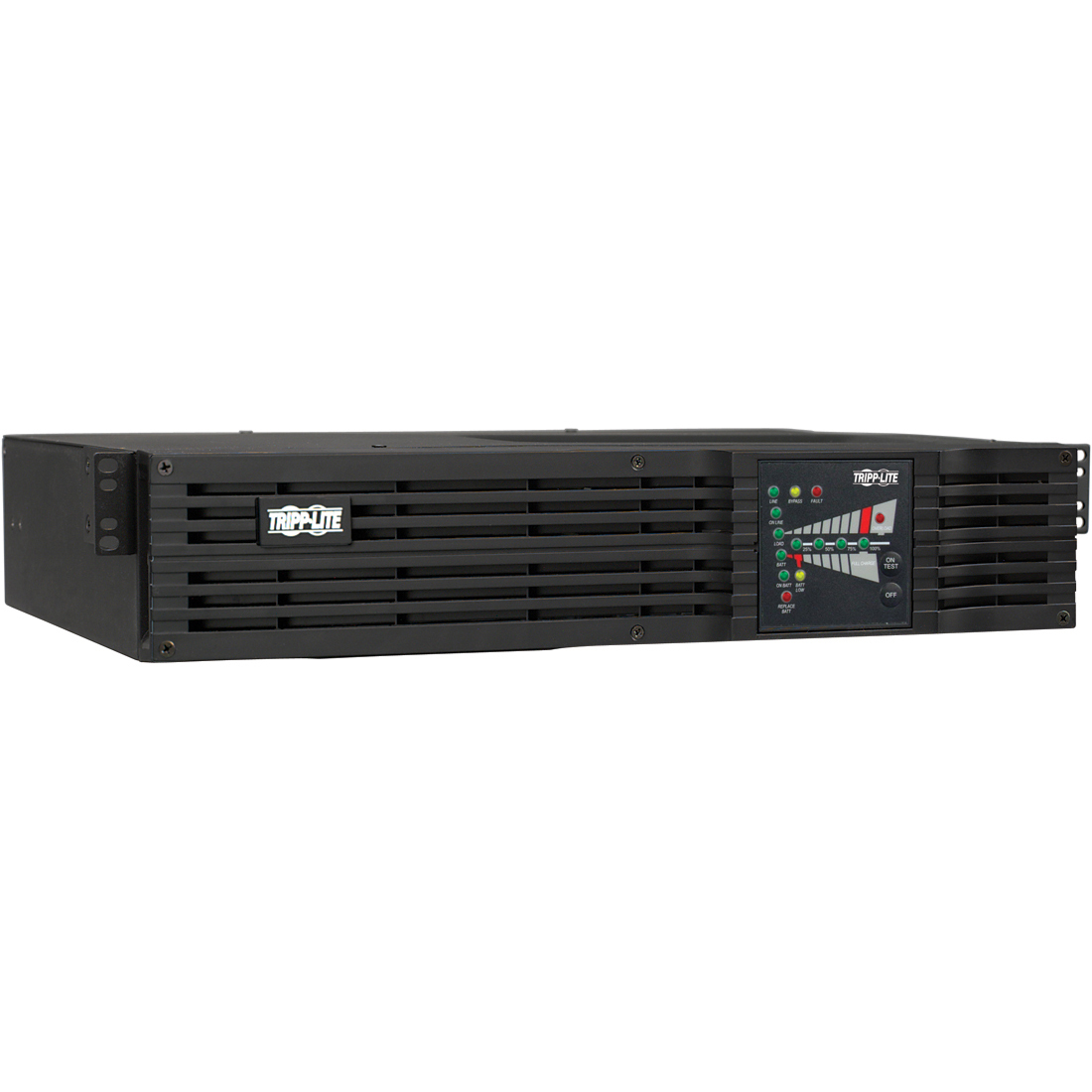

Tripp-Lite - Tripp Lite UPS Smart Online 1000VA 800W Rackmount 100V-120V USB DB9 2URM - 1000VA/800W - 4.5 Minute Full Load - 6 x NEMA 5-15R
  • 1000VA / 1kVA / 800 watt on-line double-conversion 2U rack/tower UPS
  • 100/110/120V +/-2% output at 50/60Hz, high efficiency economy mode option
  • Expandable runtime, Hot-swap batteries; 13.5 in / 34.3cm installed depth
  • USB, RS232 & EPO ports; support for SNMP/WEB card options
Read More

Need a different version? See all Tripp-Lite Parts Accessories

Discontinued Need Assistance?
Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Tripp-Lite SU1000RTXL2UA Products
Tripp-Lite SU1000RTXL2UA Products
Tripp-Lite SU1000RTXL2UA Products
Tripp-Lite SU1000RTXL2UA Products
Tripp-Lite SU1000RTXL2UA Products Tripp-Lite SU1000RTXL2UA Products Tripp-Lite SU1000RTXL2UA Products Tripp-Lite SU1000RTXL2UA Products
Tripp-Lite Parts Accessory Model Overview
Products and parts from Tripp-Lite.
Tripp-Lite SU1000RTXL2UA Products Overview

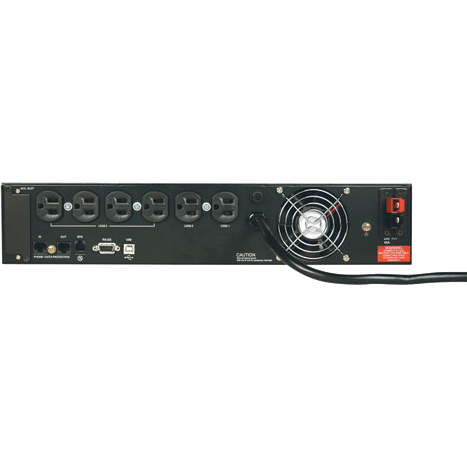

1000VA on-line, double-conversion UPS system for critical server, network and telecommunications equipment. 2U rackmount form factor with an installed depth of only 13.5 inches. Full-time sine wave 100, 110 or 120V output with +/-2% voltage regulation. Online, double-conversion UPS actively converts raw incoming AC power to DC, then re-converts output back to completely regulated, filtered AC output. Operates continuously without using battery power during brownouts to 65V and overvoltages to 150V. NEMA 5-15P input plug; NEMA 5-15R output receptacles. Network management interfaces support simultaneous communications via USB port, DB9 serial port and SNMPWEBCARD slot. Built-in DB9 port offers both enhanced RS-232 enabled monitoring data, plus contact closure monitoring ability. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. 3-stage metered current monitoring and battery charge status LEDs.

Technical Information
Plug/Connector Type:
NEMA 5-15P
Receptacle Type:
NEMA 5-15R
Receptacle Detail:
6 x NEMA 5-15R
Bypass Switch:
Automatic
Emergency Power OFF:
Yes
Power Description
Load Capacity:
1000 VA/800 W
Input Voltage:
110 V AC
Output Voltage:
120 V AC
Management
Network Management:
SNMP Manageable
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Battery Information
Backup/Run Time (Full Load):
4.50 Minute
Backup/Run Time (Half Load):
14 Minute
Typical Battery Recharge Time:
6 Hour
Hot Swappable:
Yes
Physical Characteristics
Height:
3.5"
Width:
17.5"
Depth:
13.5"
Rack Height:
2U
Form Factor:
Rack/Tower
Weight (Approximate):
41 lb
Miscellaneous
Package Contents:
  • SmartOnline SU1000RTXL2Ua 1000VA Rackmountable/Tower UPS
  • SU1000RTXL2Ua Online Double-Conversion UPS System
  • PowerAlert Software and cabling
  • Mounting hardware for 4 post rack enclosures
  • Instruction manual with warranty information
Additional Information:
  • Two controllable load banks support automated load shedding and remote reboot on demand of locked network devices
  • Supports extended runtime with optional external battery pack(s)
  • AC suppression response time: Instantaneous
  • Cooling method: Built-in cooling fan
  • Cold Start Capable
Certifications & Standards:
  • UL1778
  • CSA
  • NOM
  • Class B (EMI)
Software Included:
PowerAlert Software
Country of Origin:
China
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0037332125958, 0112840328678, 0373321259588, 0818214634221
UPC: 037332125958, 112840328678, 373321259588, 818214634221
EAN: 0037332125958, 0112840328678, 0373321259588, 0818214634221
UNSPSC: 39121011
