Application/Usage:
- UPS
- Patch Panel
- LAN Switch
Tripp-Lite SRWO8U22DP Data Networking
Part Number:
SRWO8U22DP
Model:
Parts
Tripp-Lite Parts Accessory Model Overview
Products and parts from Tripp-Lite.
Tripp-Lite SRWO8U22DP Data Networking Overview

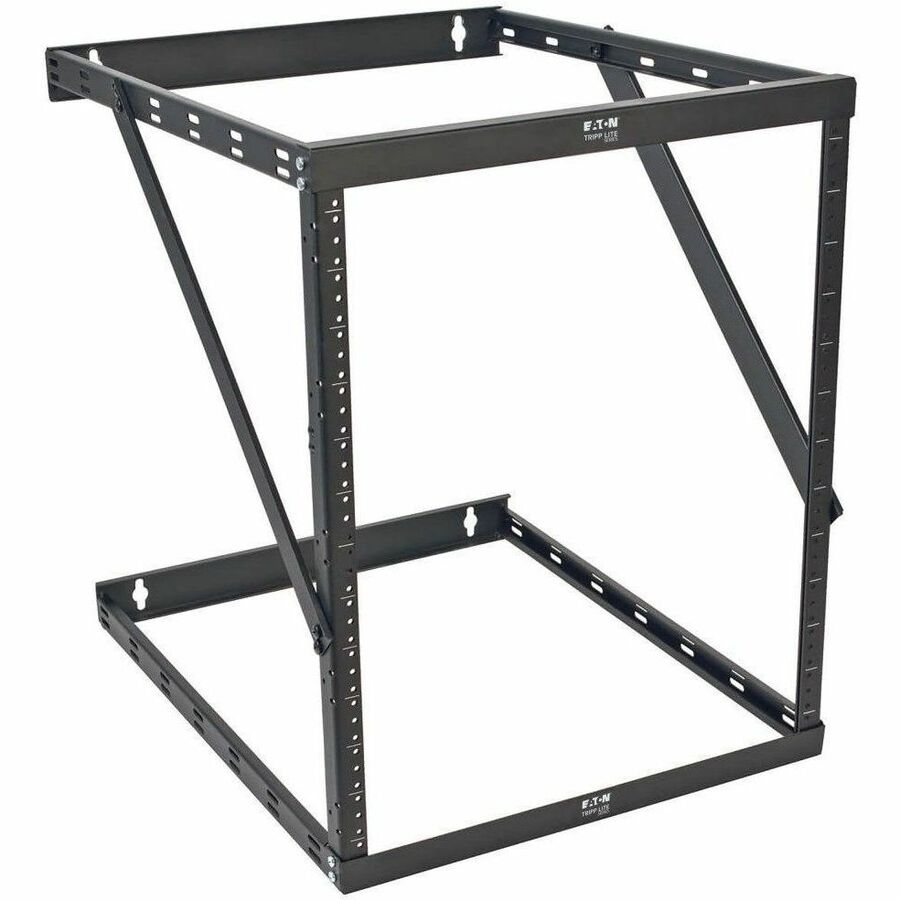

The SRWO8U22DP SmartRack 8U/12U/22U Expandable Low-Profile UPS-Depth Wall-Mount 2-Post Open-Frame Rack is ideal for storing UPS systems, battery packs, power cords, network switches, patch panels and related cabling in secure IT areas with limited floor space. Mounted to the wall or resting on the floor, this rack offers fast, easy access to components and cabling. It's compatible with EIA-standard 19-inch rack equipment that supports two-post mounting and a maximum mounting depth of 23.5 inches.
Constructed from heavy-duty steel in a durable black powder-coated finish, the open-frame rack has a maximum load capacity of 150 pounds. The expandable design allows you to assemble the rack in an 8U, 12U or 22U configuration to meet your current needs, while leaving rack space in reserve for future expansion. It saves precious space and allows IT managers easy access for organizing, installing and servicing equipment and cabling.
The rack is easy to assemble using the included hardware. The vertical mounting rails have threaded 12-24 holes for securing equipment to the steel frame.
Constructed from heavy-duty steel in a durable black powder-coated finish, the open-frame rack has a maximum load capacity of 150 pounds. The expandable design allows you to assemble the rack in an 8U, 12U or 22U configuration to meet your current needs, while leaving rack space in reserve for future expansion. It saves precious space and allows IT managers easy access for organizing, installing and servicing equipment and cabling.
The rack is easy to assemble using the included hardware. The vertical mounting rails have threaded 12-24 holes for securing equipment to the steel frame.
Technical Information
Physical Characteristics
Form Factor:
Wall Mountable
Product Color:
Black Powder Coat
Product Material:
Steel
Maximum Weight Capacity:
150 lb
Height:
42.3"
Width:
20.1"
Depth:
24"
Weight (Approximate):
16.87 lb
Rack Height:
22U
Rack Width:
19"
Rack Depth:
23.50"
Miscellaneous
Package Contents:
- SmartRack SRWO8U22DP Rack Frame
- 24 x 12-24 equipment mounting screws
- 16 x M5 button-head cap screws
- 8 x M6 x 12 Phillips-head screws
- 2 x Short vertical mounting rails
- 2 x Long vertical mounting rails
- 2 x Mounting rail tie plates
- 2 x Metal support straps
- 2 x Top/bottom panel frames
- 8 x Zip ties
- 3 mm L-shaped hex key
- Owner's manual
Assembly Required:
Yes
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
China
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN:
0037332187420, 0696544711160, 0993246469437
UPC:
037332187420, 696544711160, 993246469437
EAN:
0037332187420, 0696544711160, 0993246469437
UNSPSC:
31162309
Get help from a Barcoding Expert!
The Tripp-Lite SRWO8U22DP Data Networking is also known as
POW-SRWO8U22DP
or SRWO8U22DP.
