Tripp-Lite SRWF6U36 Accessory

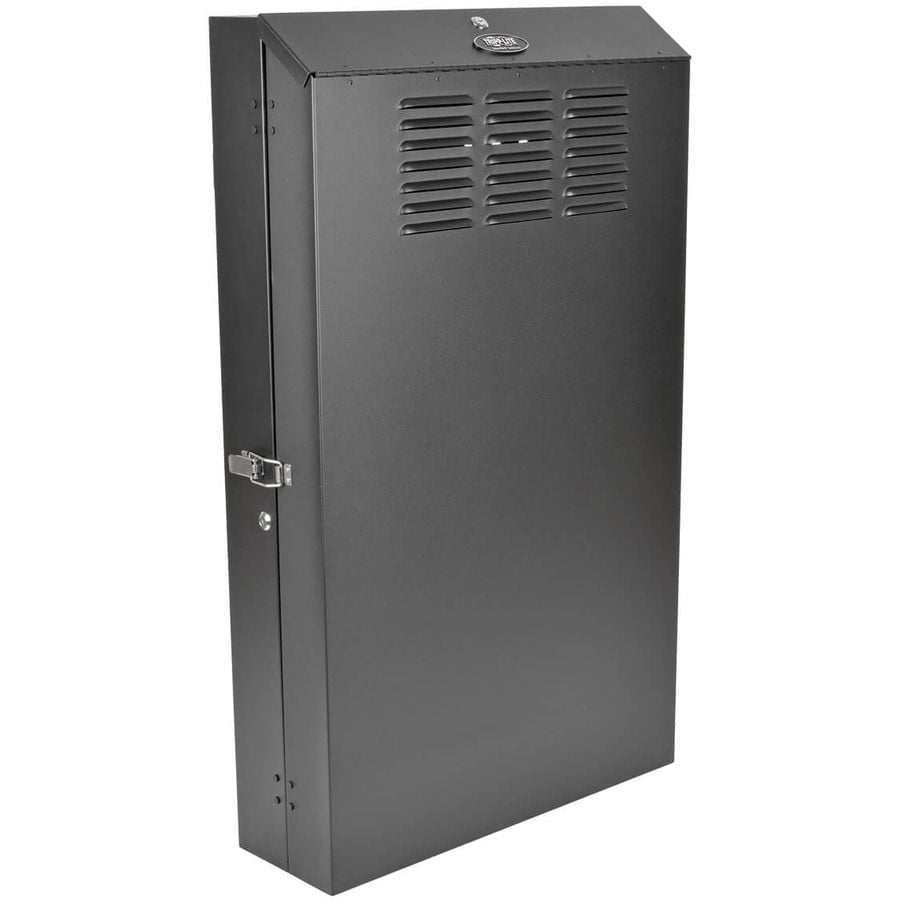

Tripp-Lite - Tripp Lite 6U Wall Mount Rack Enclosure Server Cabinet Vertical 36" Deep - 36" Deep Wall Mountable for Server, UPS, Battery Pack, LAN Switch - Black - Steel - 149.91 lb x Maximum Weight Capacity - 149.91 lb x Static/Stationary Weight Capacity
  • Maximum load capacity of 150 lb.
  • Locking steel cabinet vented to keep equipment cool
  • Secures 6U of 19 in. rack equipment up to 36 in. deep
  • Includes additional 2U of space for patch panels
  • Ships fully assembled for quick installation
Read More
$639.45
In Stock
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
Tripp-Lite Parts Accessory Model Overview
Products and parts from Tripp-Lite.
Tripp-Lite SRWF6U36 Accessory Overview
The SRWF6U36 SmartRack 6U Low-Profile Vertical-Mount Server-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 150 pounds.

Because the low-profile cabinet mounts vertically, it extends less than 12 inches from the wall while housing equipment up to 36 inches deep, including 1U servers, UPS systems, battery packs and switches. In addition to 6U of rack space in the primary mounting area, it also includes a slide-out 2U mounting bracket at the top of the enclosure for patch panels up to 2.5 inches deep.

The top panel and front door lock securely to help prevent damage, tampering or theft. The cabinet is vented, which allows air to flow freely and keep equipment cool. The reversible front door can open left or right. Convenient top and bottom ports allow easy cable routing.

The SRWF6U36 comes fully assembled and ready to mount to the wall. Equipment installation is easy with threaded mounting holes and hardware that support M6 or 12-24 mounting.
Technical Information
Application/Usage:
  • Server
  • UPS
  • Battery Pack
  • LAN Switch
Physical Characteristics
Form Factor:
Wall Mountable
Product Color:
Black
Product Material:
Steel
Maximum Weight Capacity:
149.91 lb
Static/Stationary Weight Capacity:
149.91 lb
Height:
43"
Width:
25.6"
Depth:
11.5"
Weight (Approximate):
88.18 lb
Rack Depth:
36"
Miscellaneous
Package Contents:
  • SmartRack SRWF6U36 Rack Cabinet
  • 12 x M6 screws
  • 12 x M6 cup washers
  • 12 x 12-24 screws
  • 2 x Keys
  • Owner's manual
Assembly Required:
No
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
China
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN: 0037332190642
UPC: 037332190642
EAN: 0037332190642
UNSPSC: 24102001
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Tripp-Lite SRWF6U36 Accessory is also known as SRWF6U36
