Tripp-Lite SRW18USG Storage Encloser

Part Number: SRW18USG
Model: Parts
to get Free Ground Shipping on your order.
$1,123.31
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Application/Usage
LAN SwitchPatch Panel
Features
Cable Management
Form Factor
Wall Mountable
Product Color
Black Powder Coat

Product Description:

  Storage Enclosers, Tripp Lite, 18U Wall Mount Rack Enclosure Server Cabinet w Hinged Acrylic Window, For LAN Switch, Patch Panel, 18U Rack Height x 19" Rack Width x 10.42" Rack Depth, Wall Mountable, Black Powder Coat, Acrylic, Steel, 200 lb Maximum Weight Capacity, 250 lb Static/Stationary Weight Capacity

Tripp-Lite Parts Accessory Model Overview

Products and parts from Tripp-Lite.
Tripp-Lite SRW18USG Storage Encloser Overview

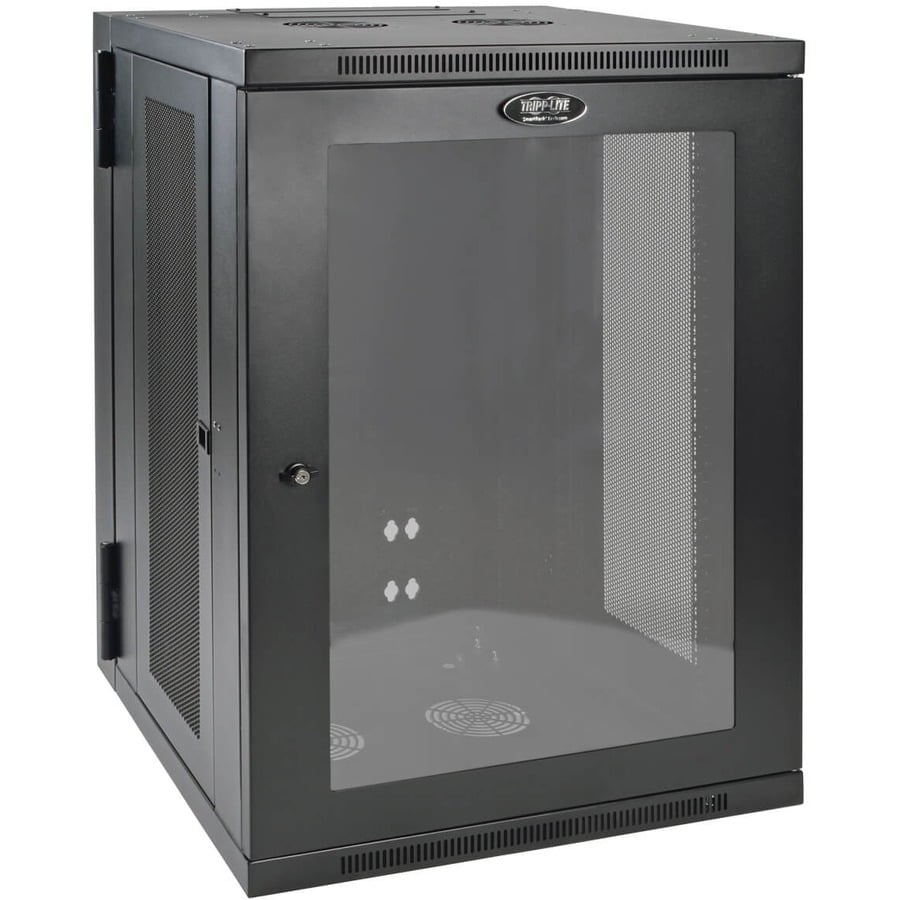

The SRW18USG SmartRack 18U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is ideal for storing EIA-standard 19-inch rack equipment in network closets and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 250 pounds.

The front door features a shatter-resistant clear acrylic window that lets you monitor equipment readouts without unlocking the enclosure. Not only does the window help prevent equipment tampering and reduce acoustic noise, but it also adds visual flair to your IT installation.

The cabinet swings away from the wall on a sturdy hinge, allowing easy access to equipment and cabling during installation and maintenance. To ensure your valuable equipment stays secure, the doors and side panels lock. The top, bottom and removable side panels are vented, which allows air to flow freely through the rack to keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing through the cabinet.

The SRW18USG comes fully assembled and ready to mount to the wall. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to house equipment up to 20.5 inches deep, such as network switches and patch panels.

Technical Information
Application/Usage:
  • LAN Switch
  • Patch Panel
Features:
Cable Management
Physical Characteristics
Form Factor:
Wall Mountable
Product Color:
Black Powder Coat
Product Material:
  • Acrylic
  • Steel
Maximum Weight Capacity:
200 lb
Static/Stationary Weight Capacity:
250 lb
Height:
35.6"
Width:
23.6"
Depth:
21.6"
Weight (Approximate):
96 lb
Rack Height:
18U
Rack Width:
19"
Rack Depth:
10.42"
Miscellaneous
Package Contents:
  • SRW18USG SmartRack 18U Low-Profile Switch-Depth WallMount Rack Enclosure Cabinet
  • 42 x M6 Screws
  • 42 x M6 Cage Nuts
  • 42 x M6 Washers
  • 42 x 12-24 Screws
  • 2 x Keys
  • Owner's Manual
Assembly Required:
No
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
China
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN: 0037332187376, 0818242707430
UPC: 037332187376, 818242707430
EAN: 0037332187376, 0818242707430
UNSPSC: 24102001
