Application/Usage:
UPS
Tripp-Lite SRW18USDP Accessory
Part Number:
SRW18USDP
Model:
Parts
Tripp-Lite Parts Accessory Model Overview
Products and parts from Tripp-Lite.
Tripp-Lite SRW18USDP Accessory Overview

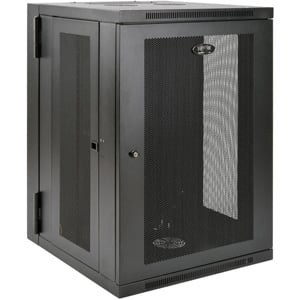

The SRW18USDP SmartRack 18U UPS-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 250 pounds.
The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The doors and side panels lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing.
The SRW18USDP comes fully assembled and ready to mount to the wall, or use Tripp Lite's optional SRCASTER rolling caster kit to make it a mobile rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 24.5 inches deep, such as network switches, UPS systems and related battery packs and cabling.
The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The doors and side panels lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing.
The SRW18USDP comes fully assembled and ready to mount to the wall, or use Tripp Lite's optional SRCASTER rolling caster kit to make it a mobile rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 24.5 inches deep, such as network switches, UPS systems and related battery packs and cabling.
Technical Information
Physical Characteristics
Form Factor:
Wall Mountable
Product Color:
Black
Product Material:
Steel
Maximum Weight Capacity:
250 lb
Static/Stationary Weight Capacity:
250 lb
Height:
35.6"
Width:
23.5"
Depth:
26"
Weight (Approximate):
100.90 lb
Rack Height:
18U
Rack Width:
19"
Rack Depth:
24.50"
Miscellaneous
Package Contents:
- SmartRack 18U UPS-Depth Wall-Mount Rack Enclosure Cabinet, Hinged Back
- 42 x M6 Screws
- 42 x M6 Cage Nuts
- 42 x M6 Washers
- 42 x 12-24 Screws
- 2 x Keys
- Owner's Manual
Assembly Required:
No
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
China
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN:
0037332189707, 0818213951237
UPC:
037332189707, 818213951237
EAN:
0037332189707, 0818213951237
UNSPSC:
24102001
Get help from a Barcoding Expert!
The Tripp-Lite SRW18USDP Accessory is also known as
POW-SRW18USDP
or SRW18USDP.
