Application/Usage:
- LAN Switch
- Patch Panel
- Server
- PDU
Tripp-Lite SRW12US33G Rack
Part Number:
SRW12US33G
Model:
Parts
Tripp-Lite Parts Accessory Model Overview
Products and parts from Tripp-Lite.
Tripp-Lite SRW12US33G Rack Overview

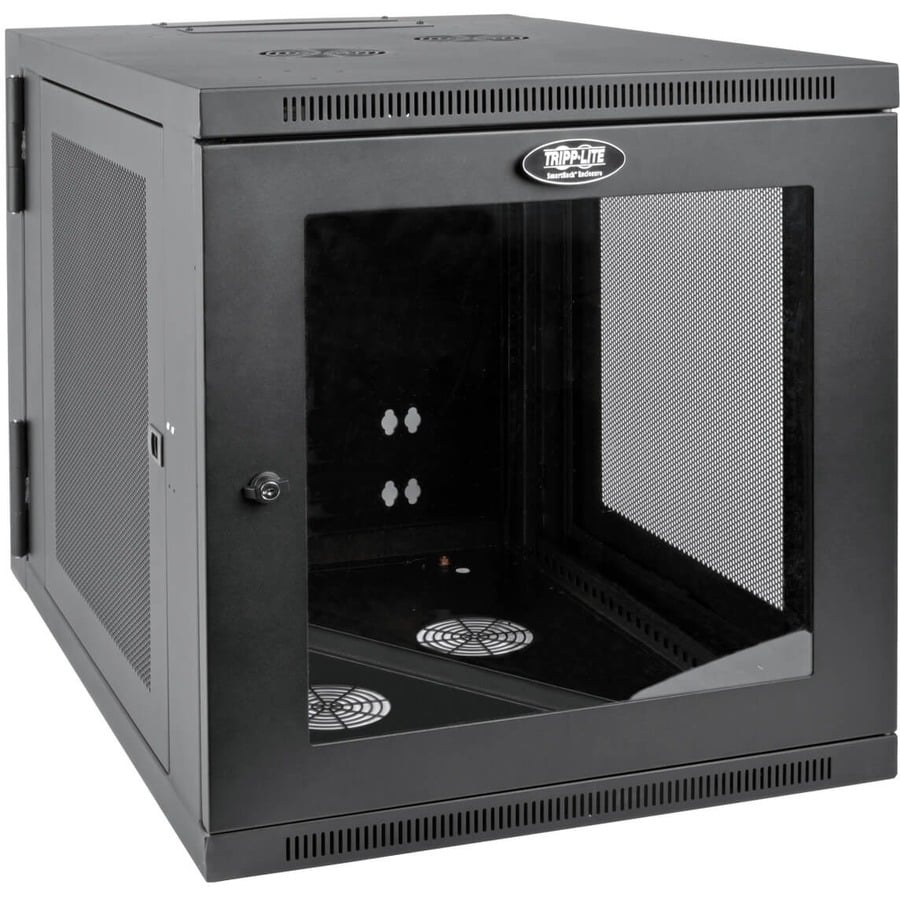

The SRW12US33G SmartRack 12U Server-Depth Wall-Mount Rack Enclosure Cabinet is ideal for storing 19-inch rack equipment up to 32.5 inches in depth in areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 250 pounds.
The front door features a shatter-resistant clear acrylic window that lets you monitor equipment readouts without unlocking the enclosure. Not only does the window help prevent equipment tampering and reduce acoustic noise, but it also adds visual flair to your IT installation.

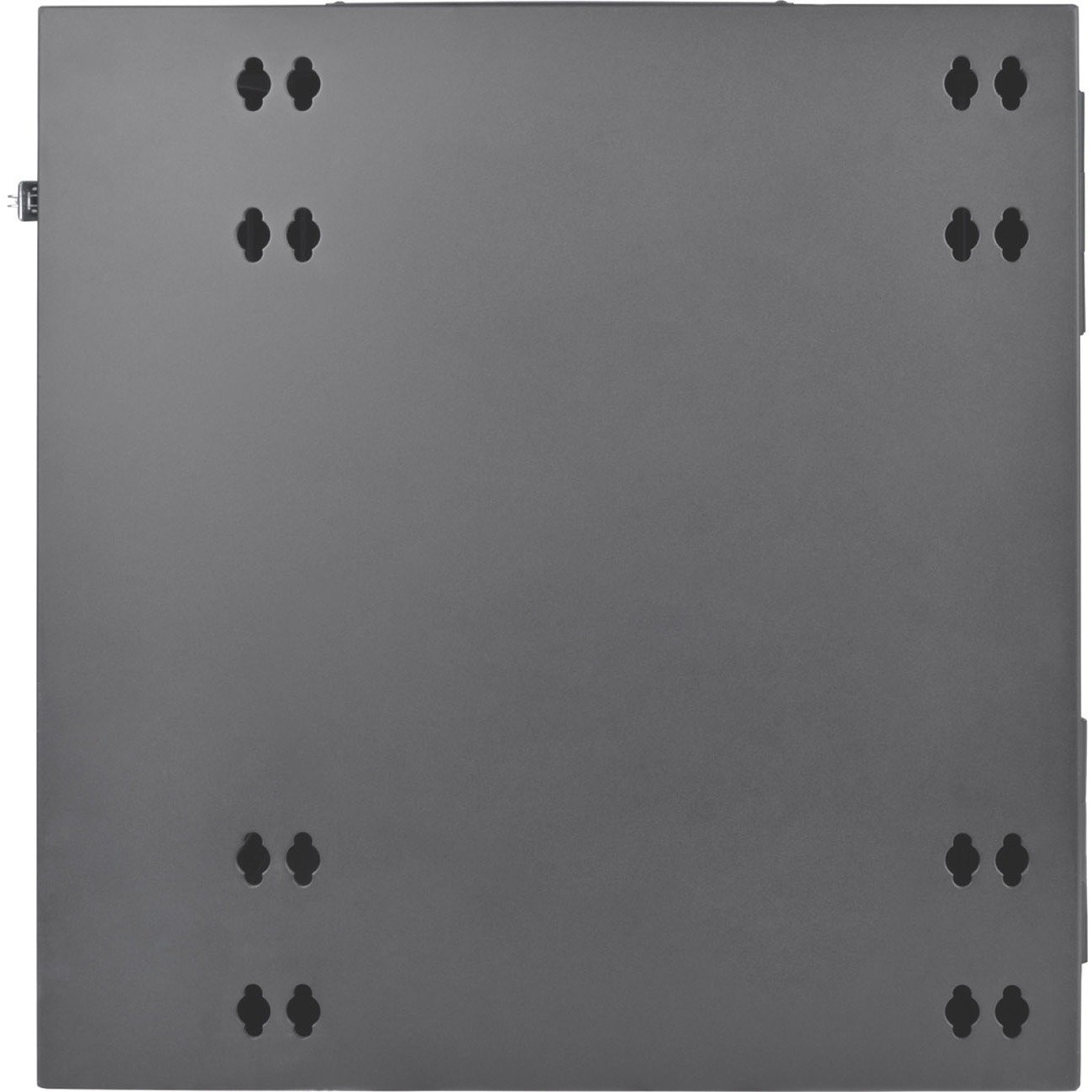

The cabinet swings away from the wall on a sturdy hinge, allowing easy access to equipment and cabling during installation and maintenance. To ensure your valuable equipment stays secure, the doors and side panels lock. The top, bottom and removable side panels are vented, which allows air to flow freely through the rack to keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing through the cabinet.
The SRW12US33G comes fully assembled and ready to mount to the wall. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 32.5 inches, such as 1U servers, UPS systems, battery packs and switches.
The front door features a shatter-resistant clear acrylic window that lets you monitor equipment readouts without unlocking the enclosure. Not only does the window help prevent equipment tampering and reduce acoustic noise, but it also adds visual flair to your IT installation.
The cabinet swings away from the wall on a sturdy hinge, allowing easy access to equipment and cabling during installation and maintenance. To ensure your valuable equipment stays secure, the doors and side panels lock. The top, bottom and removable side panels are vented, which allows air to flow freely through the rack to keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing through the cabinet.
The SRW12US33G comes fully assembled and ready to mount to the wall. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 32.5 inches, such as 1U servers, UPS systems, battery packs and switches.
Technical Information
Physical Characteristics
Form Factor:
Wall Mountable
Product Color:
Black Powder Coat
Product Material:
- Steel
- Acrylic
Maximum Weight Capacity:
250 lb
Static/Stationary Weight Capacity:
250 lb
Height:
25"
Width:
23.6"
Depth:
33.5"
Weight (Approximate):
94.50 lb
Rack Height:
12U
Rack Width:
19"
Rack Depth:
25.99"
Miscellaneous
Package Contents:
- SRW12US33G SmartRack 12U Server-Depth Wall-Mount Rack Enclosure Cabinet
- 36 x M6 Screws
- 36 x M6 Cage Nuts
- 36 x M6 Washers
- 36 x 12-24 Screws
- 2 x Keys
- Owner's Manual
Assembly Required:
No
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
China
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN:
0037332187352, 0373321873524, 0818243212346, 4973163136335
UPC:
037332187352, 373321873524, 818243212346
EAN:
0037332187352, 0373321873524, 0818243212346, 4973163136335
UNSPSC:
24102001
Get help from a Barcoding Expert!
The Tripp-Lite SRW12US33G Rack is also known as
SRW12US33G
