Application/Usage:
Server
Tripp-Lite SRW12UG Mounting Hardware and Stands
Part Number:
SRW12UG
Model:
Parts
Tripp-Lite Parts Accessory Model Overview
Products and parts from Tripp-Lite.
Tripp-Lite SRW12UG Mounting Hardware and Stands Overview

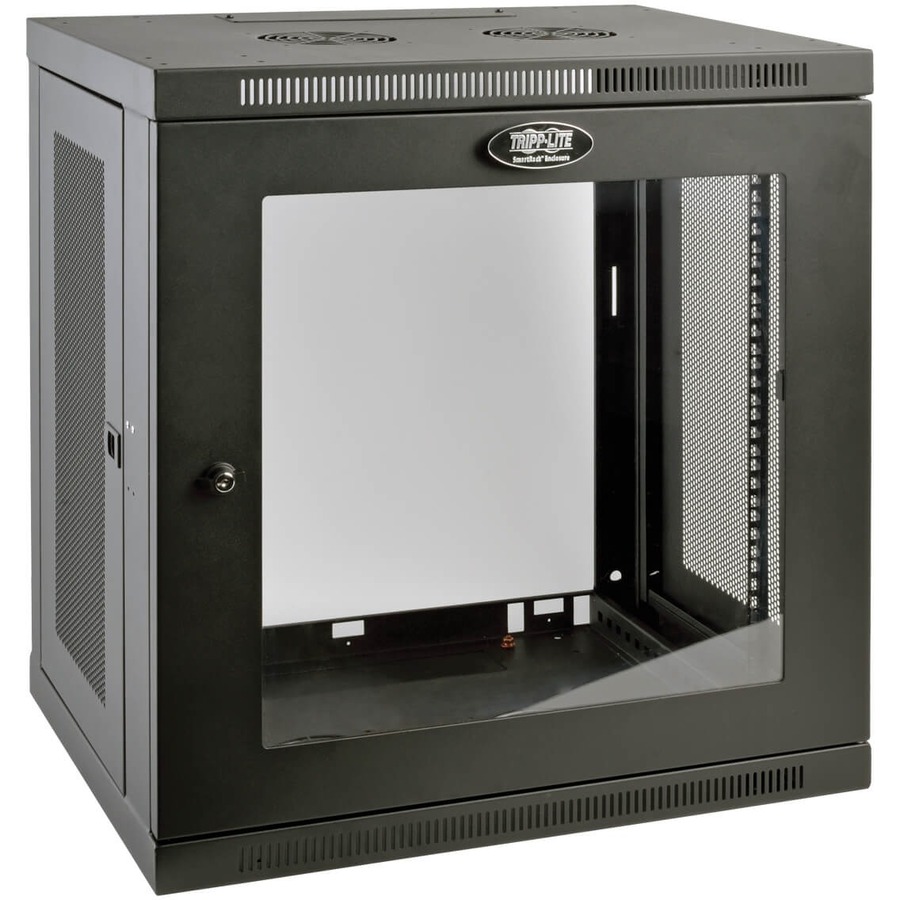

The SRW12UG SmartRack 12U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds.The front door features a shatter-resistant clear acrylic window that lets you monitor equipment readouts without unlocking the enclosure. Not only does the window help prevent equipment tampering and reduce acoustic noise, but it also adds visual flair to your IT installation.

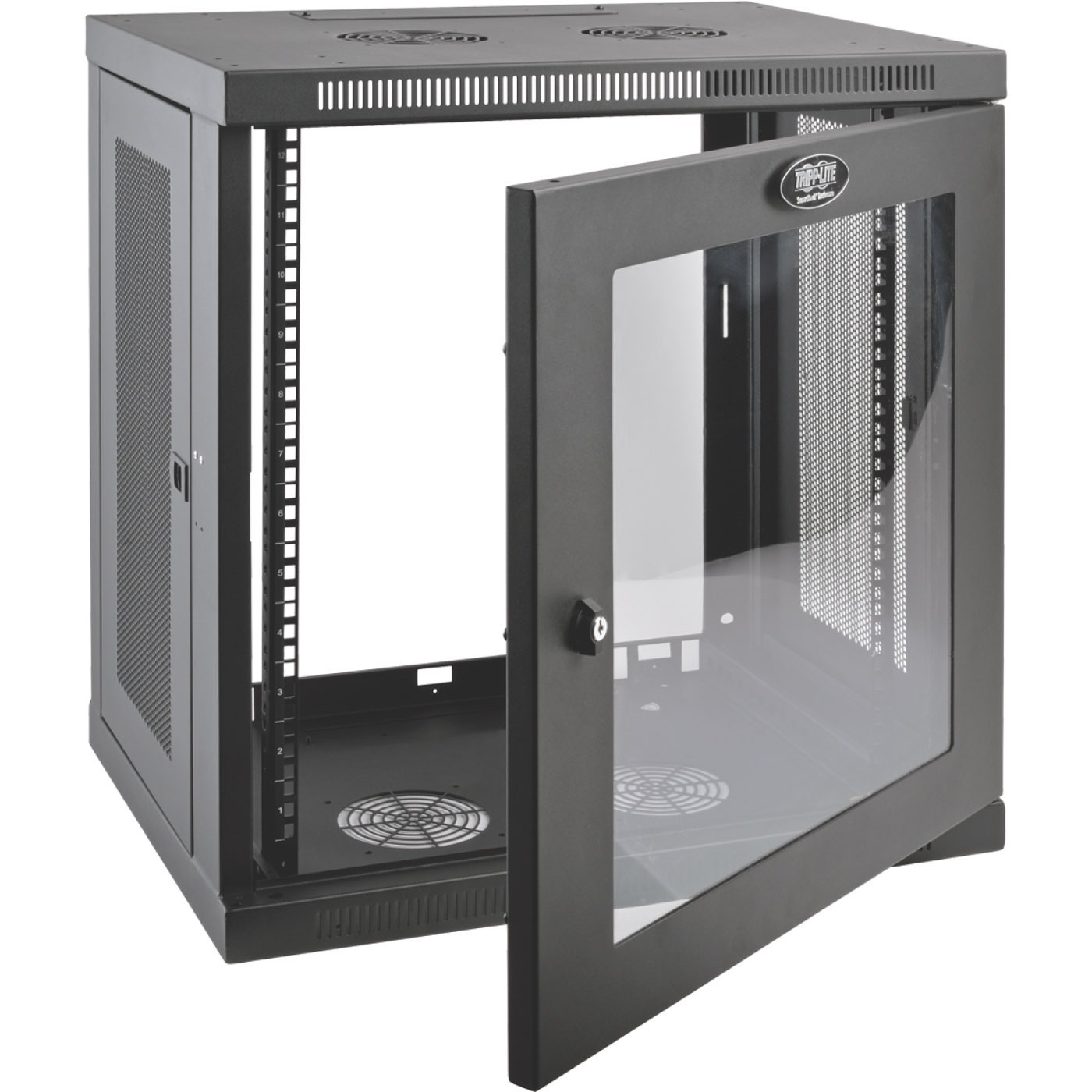

The side panels and front door lock securely to help prevent damage, tampering or theft. The top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible front door can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing.
The SRW12UG comes fully assembled and ready to mount to the wall, or use Tripp Lite's optional SRCASTER rolling caster kit to make it a mobile rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 16.5 inches deep, such as network switches and patch panels.
Technical Information
Physical Characteristics
Form Factor:
Wall Mountable
Product Color:
Black Powder Coat
Product Material:
Steel
Maximum Weight Capacity:
200 lb
Static/Stationary Weight Capacity:
200 lb
Height:
25.1"
Width:
23.6"
Depth:
17.7"
Weight (Approximate):
48.50 lb
Rack Height:
12U
Rack Width:
19"
Rack Depth:
16.50"
Miscellaneous
Package Contents:
- SRW12UG SmartRack 12U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet
- 18 x M6 Screws
- 18 x M6 Cage Nuts
- 18 x M6 Cup Washers
- 18 x 12-24 Screws
- Removable Mounting Plate
- 3 x Mounting Plate Screws
- 2 x Keys
- Owner's Manual
Assembly Required:
No
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
China
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN:
0801096849272, 0818213943263
UPC:
801096849272, 818213943263
EAN:
0801096849272, 0818213943263
UNSPSC:
24102001
