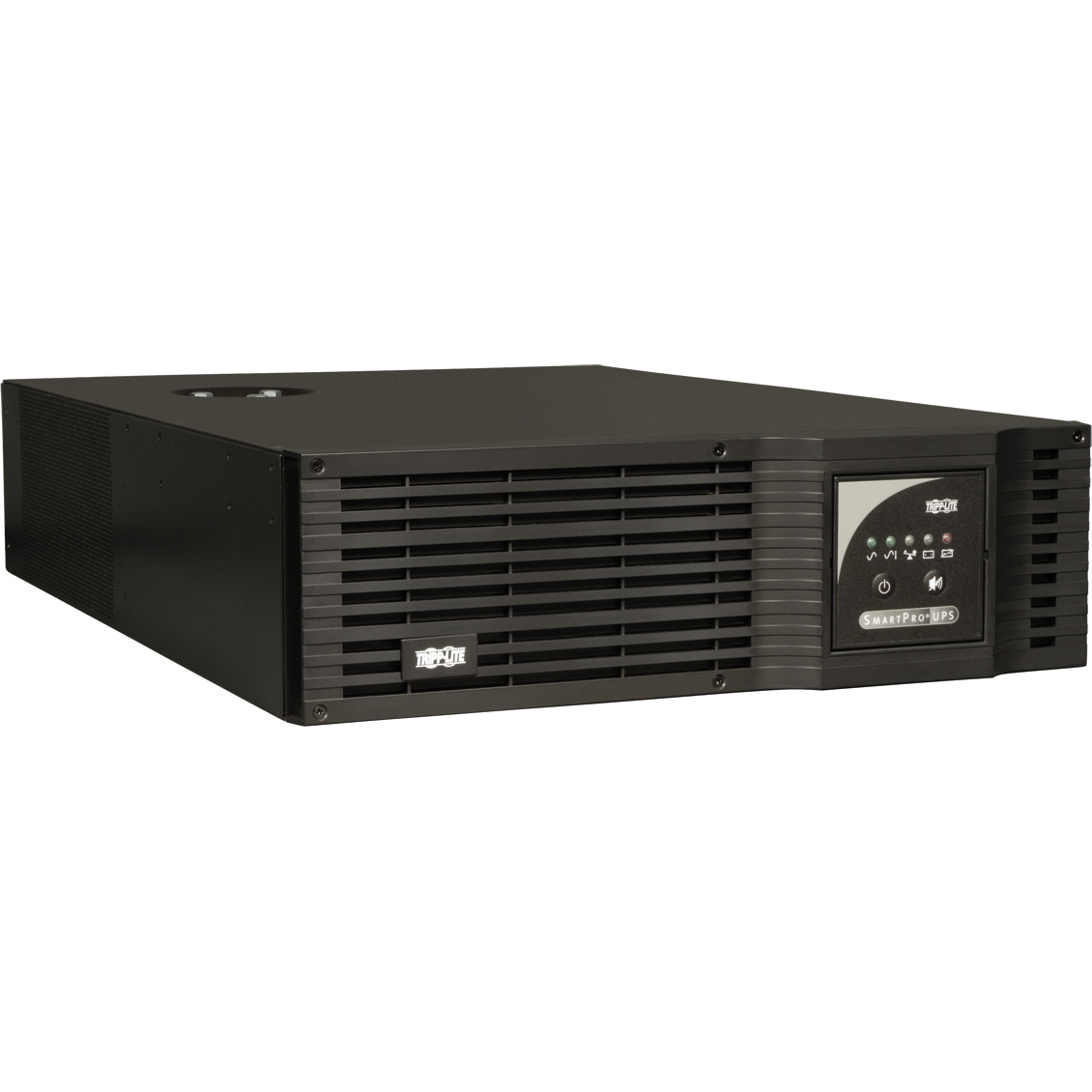

5000VA line interactive UPS system for server, network and telecommunications equipment. 5kVA UPS with internal batteries installs in only 3 rack spaces with a depth of only 635mm / 25 inches. High 98% line-power efficiency rating reduces energy consumption and BTU heat output. Expandable battery runtime with optional BP48V24-2U (limit 1), BP48V60RT-3U (multi-pack compatible) and BP48V27-2US (multi-pack compatible) external battery packs. Uninterruptible Power Supply (UPS) switches to battery-derived AC output during power failures and extreme voltage variations. Line interactive Automatic Voltage Regulation (AVR) offers voltage boost during brownouts and voltage reduction during overvoltage conditions to maintain regulated 230v output over an input range of 170-282V. Supports hardwire input. Includes C19 and C13 output receptacles. Network-grade AC surge and noise suppression. Network management interfaces support communications via USB, DB9 serial and SNMPWEBCARD slot. Supports simultaneous detailed monitoring of equipment load levels, self-test data and utility power conditions via all 3 network interfaces at once. Includes PowerAlert monitoring software and complete cabling. Emergency Power Off (EPO) interface. 3-stage metered current monitoring and battery charge status LEDs. Utility power and voltage regulation LEDs. Audible alarm. Self-test. 4-post rackmount installation accessories included; 2-9USTAND tower kit and 2POSTRMKITHD two post rack mounting accessories available. Field-replaceable, hot-swappable internal batteries and external battery packs.
Mounting hardware for 4 post rackmount installation
Warranty information
Instruction manual
Additional Information:
Switches: Yes, includes 2 front panel-mounted push button switches for system enable, self-test and alarm cancel functions
Low voltage transfer to battery power: 170VAC (resets to line power as voltage increases to 179VAC)
High voltage transfer to battery power: 282V (resets to line power as voltage decreases to 274VAC)
Cold Start: Yes, inverter can be cold started to enable temporary AC output during a power failure
TVSS grounding: Includes back panel grounding point with thubscrew for dataline surge suppressors and other network accessories requiring a safe grounding point
The Tripp-Lite SMX5000XLRT3U Power Device is also known as
SMX5000XLRT3U
