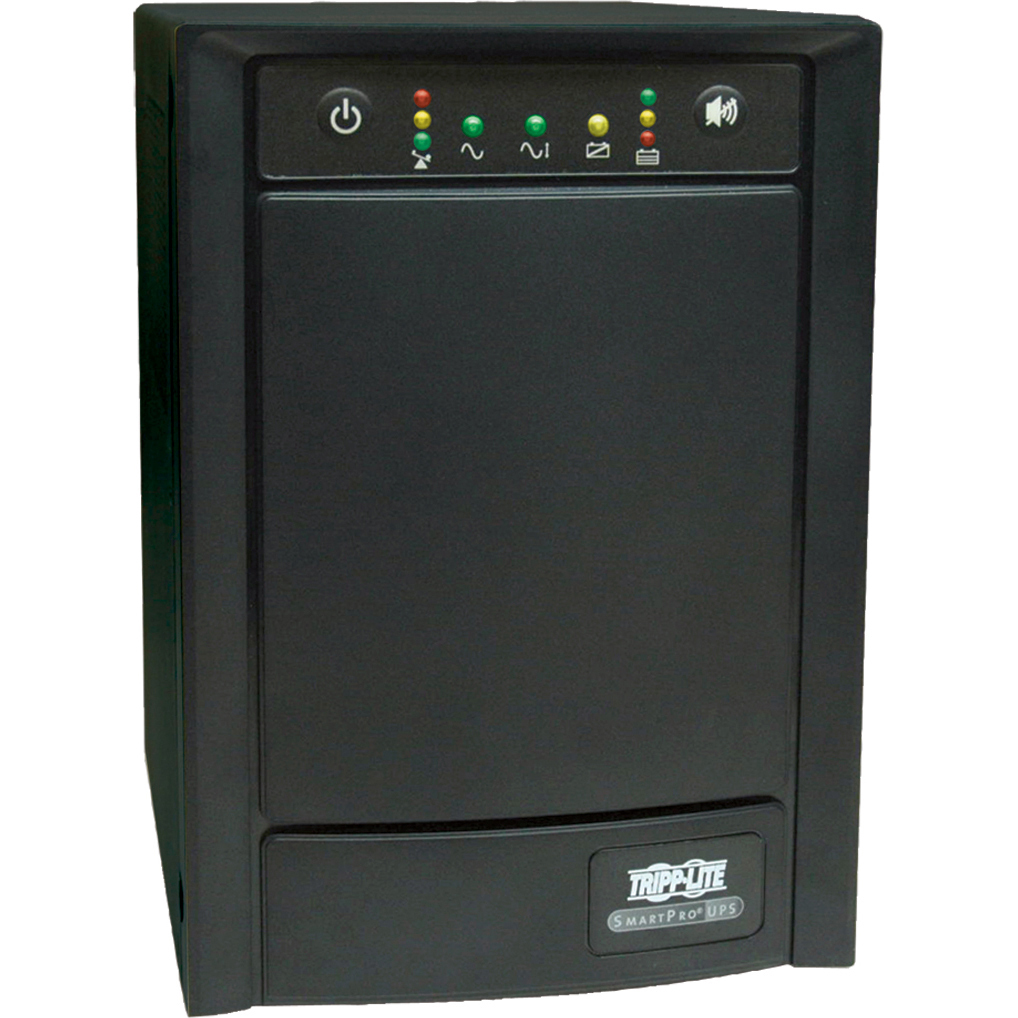

Tripp-Lite SMART750XLA Power Device

Part Number: SMART750XLA
Model: Parts
to get Free Ground Shipping on your order.
$593.62

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Plug/Connector Type
NEMA 5-15P
Receptacle Type
NEMA 5-15R
Receptacle Detail
8 x NEMA 5-15R
Transfer Time
4 ms

Product Description:

  Power Systems & Supplies, Tripp-Lite, SmartPro 120V 750VA 500W Line-Interactive Sine Wave UPS, Tower, Extended Run, Network Card Options, USB, DB9 Serial

Tripp-Lite Parts Accessory Model Overview

Products and parts from Tripp-Lite.
Tripp-Lite SMART750XLA Power Device Overview

750VA line-interactive tower UPS system for server, networking and telecommunications equipment. Supports extended runtime with optional BP24V28-2U and BP24V70-3U external battery packs. Compatible with 120V, 110V or 100V nominal voltage at 60Hz. Switches to battery-derived AC output during power failures and extreme voltage variations. Line-interactive automatic voltage regulation (AVR) provides voltage boost during brownouts and voltage cut during overvoltages to maintain regulated output during brownouts and overvoltages. Includes NEMA 5-15P input plug and 8 NEMA 5-15R output receptacles. Network-grade AC surge and noise suppression. Network management via USB port, DB9 serial port and SNMPWEBCARD slot. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Supports detailed monitoring of equipment load levels, self-test data and utility power conditions via all 3 network interfaces at once. Includes PowerAlert monitoring software and complete cabling. Features 3-stage load current monitoring and battery charge status, plus line power and voltage boost/cut status LEDs. Dataline surge suppression protects dialup, DSL or network Ethernet connection. Audible alarm. Self-test. Field replaceable, hot-swappable internal batteries and external battery packs.

Technical Information
Plug/Connector Type:
NEMA 5-15P
Receptacle Type:
NEMA 5-15R
Receptacle Detail:
8 x NEMA 5-15R
Transfer Time:
4 ms
Power Description
Load Capacity:
750 VA/500 W
Input Voltage:
120 V AC
Output Voltage:
120 V AC
Management
Network Management:
SNMP Manageable
Interfaces/Ports
USB:
Yes
Battery Information
Backup/Run Time (Full Load):
10 Minute
Backup/Run Time (Half Load):
27 Minute
Typical Battery Recharge Time:
4.50 Hour
Physical Characteristics
Height:
10.1"
Width:
6.7"
Depth:
13.8"
Form Factor:
Tower
Weight (Approximate):
33.90 lb
Miscellaneous
Package Contents:
  • SMART750XLA 750VA Tower UPS
  • SMART 750XLa UPS System
  • PowerAlert Software CD-Rom
  • USB and serial cabling
  • User manual with warranty information
Certifications & Standards:
UL1778 (USA), CSA (Canada), RoHS Compliant, Class B (Emissions), NOM (Mexico), FCC Part 68 / Industry Canada (telecommunications)
Software Included:
PowerAlert Software
Environmentally Friendly:
Yes
Country of Origin:
China
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0003733214294, 0037332142948, 0641125289194
UPC: 003733214294, 037332142948, 641125289194
EAN: 0003733214294, 0037332142948, 0641125289194
UNSPSC: 39121011
