Tripp-Lite SMART750USB


0.0

(No reviews)

Be the first to

Write a Review

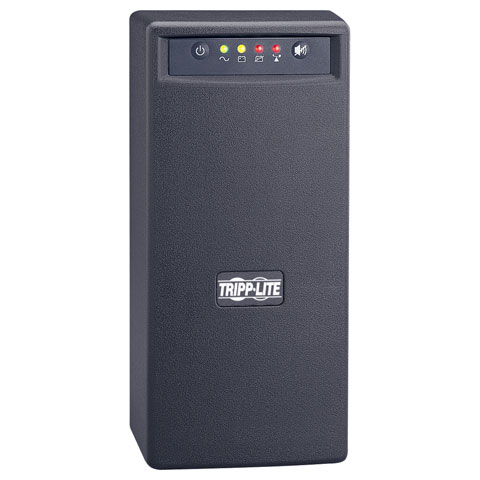

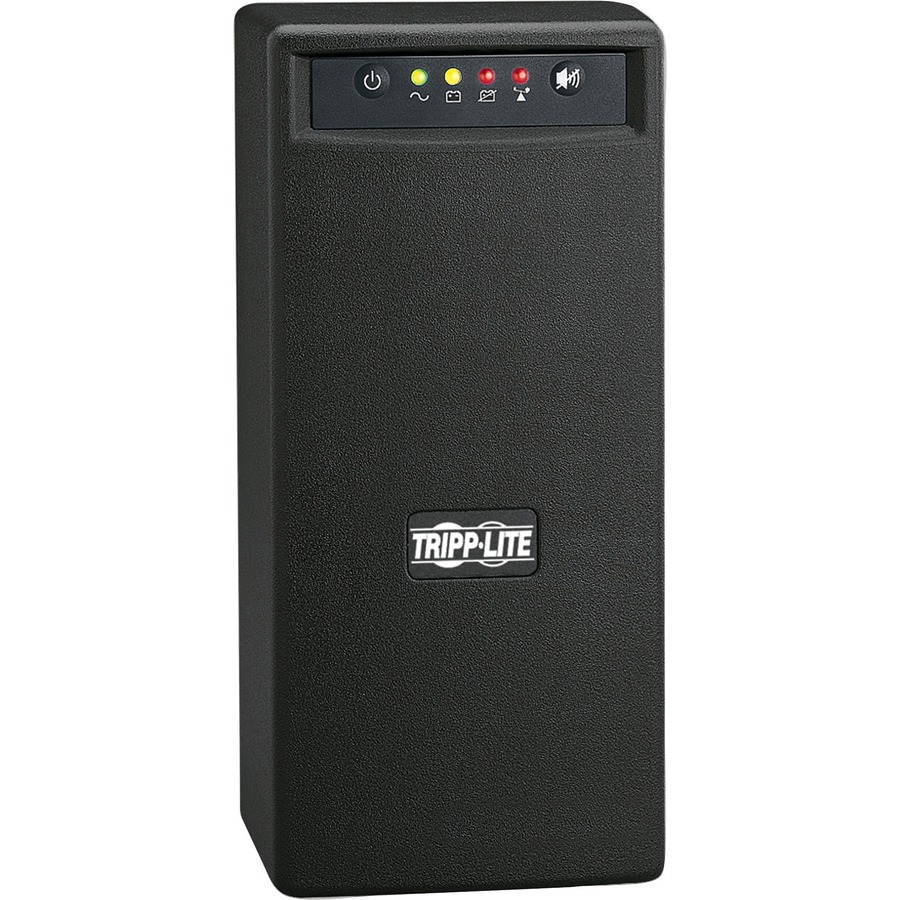

Tripp-Lite - Line interactive UPS, 750VA, 450 Watts, 6 NEMA 5-15R, USB port, single line TEL / DSL or Ethernet line surge suppression and three surge-only outlets.
$153.30
In Stock:
Ships Same Day
Your satisfaction is guaranteed!
We want to make sure you are completely satisfied with your purchase. Customers must return their product within 30 days of shipment to receive a full credit less a 15% restocking fee. Returns must be presented in new condition with all of the original packaging.
Share:

Tripp-Lite UPS and Power supply products.

General Information

  • Product Type: Line-interactive UPS
  • Brand Name: Tripp Lite
  • Manufacturer: Tripp Lite
  • Product Name: SmartPro 750VA SMART750USB UPS
  • Product Line: SmartPro
  • Packaged Quantity: 1 Each

Technical Information

  • Receptacles: 3 x NEMA 5-15R
  • Plug/Connector Type: NEMA 5-15P
  • Protection Type: Surge
  • Cord Length: 6 ft
  • Dataline Protection: RJ-45

Physical Characteristics

  • Height: 11"
  • Width: 5.5"
  • Depth: 7.5"
  • Form Factor: Tower
  • Weight (Approximate): 17.40 lb
  • Color: Gray

Interfaces/Ports

  • USB: Yes

Other

  • Country of Origin: China
  • Package Contents:
    • SMART750USB Standby UPS System
    • USB and telephone interconnection cables
    • Instruction manual with warranty information
    • SMART750USB Standby UPS System
    • USB and telephone interconnection cables
    • Instruction manual with warranty information
  • Recycled: No
  • Recycled Content: 0%
  • Post-consumer-waste%: 0%
  • Assembly Required: No
  • Certifications & Standards: UL1778 (USA), cUL (Canada), FCC Class B (emissions), NOM (Mexico), FCC Part 68 / Industry Canada (Telecommunications), Conforms to IEEE 587 / ANSI C62.41 specifications
  • Software Included: PowerAlert Software
  • Additional Information:
    • SMART750USB line-interactive UPS system offers extended voltage regulation (AVR) and battery support as well as complete AC and dialup/DSL/ethernet line surge suppression
    • Supports entry level PC systems for up to 45 minutes during power failures to enable a safe system shutdown
    • Supports a max load of 750VA/450 watts for 5 minutes and a half load of 375VA/225 watts for 17 minutes
    • Automatic Voltage Regulation (AVR) circuits correct brownouts as low as 83 volts without using battery power
    • Attractive black tower configuration
    • Includes 3 battery-supported outlets, plus 3 additional surge-only outlets, 6 foot AC line cord (all NEMA 5-15)
    • USB port enables unattended shutdown without data loss during extended power failures; includes USB cable
    • Built-in USB port supports on battery, low battery, power restored, AC line voltage, DC battery voltage and battery capacity messaging; interface supports timed inverter shutoff after unattended shutdown, activate self-test and 10 second reboot of connected equipment
    • PowerAlert UPS monitoring and unattended shutdown software available via free download from www.tripplite.com
    • Supports Tripp Lite's WatchDog software application to restore unresponsive programs by automatically restarting them and rebooting completely locked computers by automatically switching UPS power off and back on again (part #WATCHDOGSW)
    • Built-in dataline suppression jacks protect a single dialup phone / DSL line or network Ethernet line connection
    • Built-in audible alarm and 4 front panel LEDs indicate UPS system and line power status
    • 750VA / 450 watt power handling ability supports a variety of computer, internetworking, telecom and consumer electronics equipment
    • Supports battery replacement via built-in access panel
    • Compatible with 120V / 60Hz applications for USA, Canada, Mexico and more
    • 2 year manufacturer's warranty
    • $200,000 Ultimate Lifetime Insurance (USA & Canada Only)

Power Description

  • Load Capacity (VA): 750 VA
  • Load Capacity (Watt): 450 W
  • Input Voltage: 110 V AC
  • Output Voltage: 120 V AC
  • Surge Energy Rating: 480 J
  • Waveform Type: Pulse-width Modulated Sine Wave

Battery Information

  • Maximum Battery Recharge Time: 4 Hour
  • Backup/Run Time (Half Load): 11 Minute
  • Backup/Run Time (Full Load): 3 Minute
  • Battery Life: 6 Year
  • Battery Chemistry: Sealed Lead Acid

Controls/Indicators

  • Status Indicators: 4 LEDs indicate performance conditions: GREEN "online" / GREEN "voltage regulation enabled" / RED "on battery" / YELLOW "battery low/replace"

Warranty

  • Limited Warranty: 3 Year

Management

  • Alarm: On Battery

Environmental Conditions

  • Temperature: 122°F (50°C)
Brand Tripp-Lite
Model UPS
