Tripp-Lite SMART750SLT Power Device

Part Number: SMART750SLT
Model: Parts
to get Free Ground Shipping on your order.
$717.57
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Plug/Connector Type
NEMA 5-15P
Receptacle Type
NEMA 5-15R
Receptacle Detail
8 x NEMA 5-15R
Dataline Protection
RJ-45

Product Description:

  UPS SMART 750VA RS232/ USB

Tripp-Lite Parts Accessory Model Overview

Products and parts from Tripp-Lite.
Tripp-Lite SMART750SLT Power Device Overview

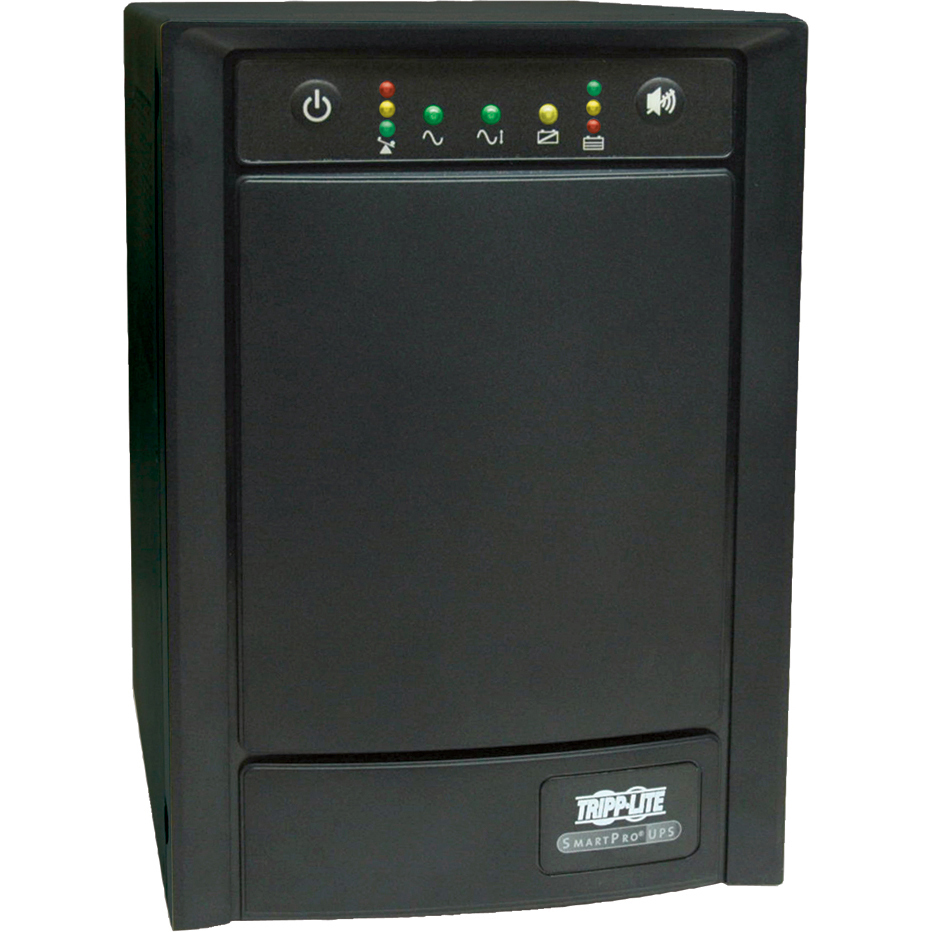

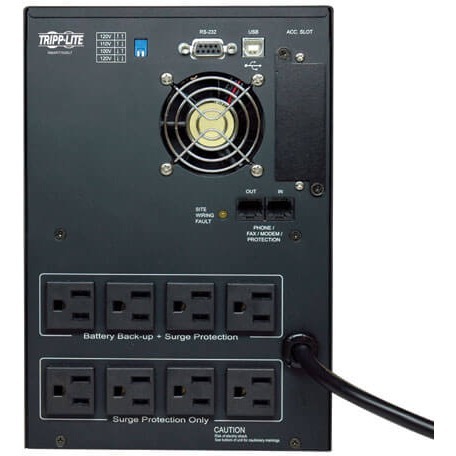

Tripp Lite's SMART750SLT intelligent, line-interactive sine wave UPS system protects servers, networking accessories and telecommunications equipment from blackouts, voltage fluctuations and transient surges. Large internal batteries offer 15 minutes half load runtime and 5 minutes fully loaded. 750VA/500 watt power handling capability and full-time sine wave output offers guaranteed compatibility with networking, telecom and other sensitive electronic applications. Includes 8 protected NEMA 5-15R output receptacles total, 4 of which offer surge suppression-only for less critical desktop accessories. Supports simultaneous remote monitoring of UPS and site power conditions via built-in network accessory card slot, USB and DB9 serial monitoring ports. Communications interfaces support messaging of UPS and line power status, plus output power control for delayed or immediate reboot of all connected devices at once. PowerAlert UPS monitoring software is available via free download. Built-in audible alarm and LEDs offer status notification for line power, battery power, battery charge level, load level, plus AVR boost and trim operational status information. Network grade AC surge suppression protects equipment from damage and performance problems resulting from transient surges. Also includes single line TEL/DSL or Ethernet line surge suppression. Attractive, all-black tower housing.
Technical Information
Plug/Connector Type:
NEMA 5-15P
Receptacle Type:
NEMA 5-15R
Receptacle Detail:
8 x NEMA 5-15R
Dataline Protection:
RJ-45
Transfer Time:
8 ms
Phase:
Single Phase
Application/Usage:
  • Network
  • Telecommunication
Power Description
Load Capacity:
750 VA/500 W
Input Voltage:
120 V AC
Output Voltage:
  • 100 V AC
  • 110 V AC
  • 120 V AC
Waveform Type:
Sine Wave
Management
Network Management:
SNMP Manageable
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Battery Information
Backup/Run Time (Full Load):
6.50 Minute
Backup/Run Time (Half Load):
20 Minute
Typical Battery Recharge Time:
8 Hour
Hot Swappable:
Yes
Physical Characteristics
Height:
10.2"
Width:
6.8"
Depth:
13.3"
Form Factor:
Tower
Weight (Approximate):
34.10 lb
Miscellaneous
Package Contents:
  • SMART750SLT LINE-INTERACTIVE UPS
  • SMART750SLT UPS System
  • PowerAlert Software CD-Rom
  • USB and serial cabling
  • User manual with warranty information
Additional Information:
  • Ideal for the protection of network fileservers, internetworking gear, switches, hubs, POS terminals, VOIP telephony and traditional PBX switching systems, back office computer systems, ATM machines, informational/internet/commerce kiosks, remote unattended servers, web servers, database servers, security systems, card readers, security cameras and other sensitive electronic devices requiring clean, continuously-regulated output power
  • Switches: Includes 2 front panel mounted switches; power on switch and power off switch
  • Low voltage transfer to battery power: Switches to battery power as line voltage decreases to 83 volts or less
  • High voltage transfer to battery power: Switches to battery power as line voltage increases to 145 volts or higher
Certifications & Standards:
UL1778 (USA), cUL (Canada), Class B (emissions), RoHS-Compliant, FCC Part 68 / Industry Canada (telecommunications)
Software Included:
PowerAlert Software
Country of Origin:
China
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0037332124395, 0141291048569
UPC: 037332124395, 141291048569
EAN: 0037332124395, 0141291048569
UNSPSC: 39121011
