Tripp-Lite SMART700DV Power Device

Part Number: SMART700DV
Model: Parts
to get Free Ground Shipping on your order.
$1,228.82

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Plug/Connector Type
IEC 320-C14
Receptacle Type
NEMA 5-15R
Receptacle Detail
6 x NEMA 5-15R
Emergency Power OFF
Yes

Product Description:

  Power Systems & Supplies, Tripp-Lite, SmartPro 120V 700VA 450W Line-Interactive Sine Wave UPS, Tower, 120 or 230V input, Network Card Options, USB, DB9

Tripp-Lite Parts Accessory Model Overview

Products and parts from Tripp-Lite.

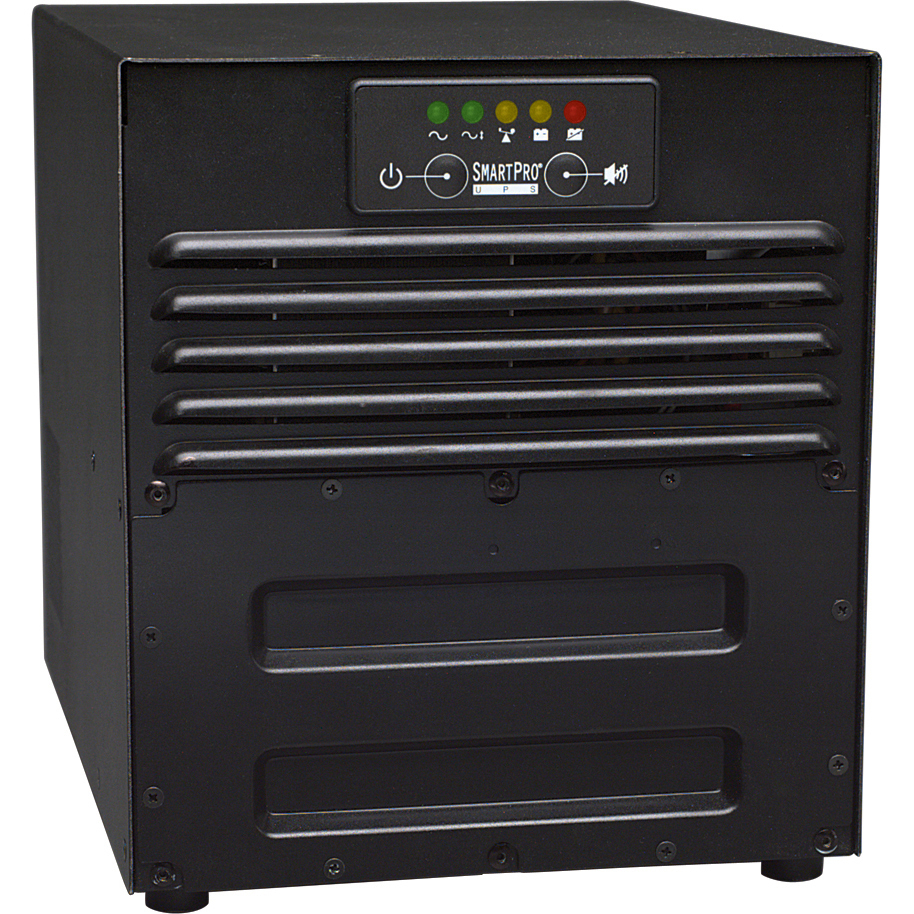

Tripp-Lite SMART700DV Power Device Overview

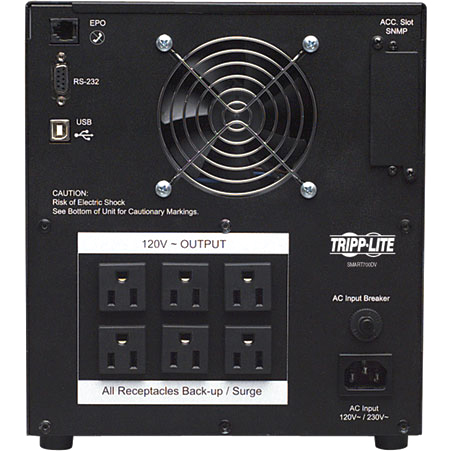

Tripp Lite's SMART700DV is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. The dual-voltage SMART700DV line-interactive UPS system maintains 120V nominal output when fed with North American 120V or international 230V input voltage. Protects servers, networking accessories and telecommunications equipment from blackouts, voltage fluctuations and transient surges. Large internal batteries offer 55 min. half-load runtime and 22 min. full load runtime during power failures. 700VA/450W power handling capability supports a variety of networking, telecom and other applications, including multiple network workstations. Includes 6 UPS-supported outlets. Supports remote monitoring of UPS and site power conditions via built-in USB and RS-232 enabled DB9 ports. Works with PowerAlert UPS monitoring and unattended shutdown software available via free download from www.tripplite.com. Includes complete USB and serial cabling. Built-in audible alarm and 5 front panel LEDs indicate status of line power, battery power, battery low/replace, voltage regulation and load level. Network-grade AC surge suppression protects equipment from damage and performance problems resulting from transient surges. 2-year warranty.

Technical Information
Plug/Connector Type:
IEC 320-C14
Receptacle Type:
NEMA 5-15R
Receptacle Detail:
6 x NEMA 5-15R
Emergency Power OFF:
Yes
Transfer Time:
4 ms
Power Description
Load Capacity:
700 VA/450 W
Input Voltage:
110 V AC
Output Voltage:
120 V AC
Input Current:
4.80 A
Management
Network Management:
SNMP Manageable
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Battery Information
Backup/Run Time (Full Load):
22 Minute
Backup/Run Time (Half Load):
55 Minute
Typical Battery Recharge Time:
4 Hour
Physical Characteristics
Height:
10.3"
Width:
9"
Depth:
12.5"
Form Factor:
Tower
Weight (Approximate):
62 lb
Miscellaneous
Package Contents:
  • SmartPro SMART700DV 700VA Tower UPS
  • SMART700DV UPS System
  • Detachable NEMA5-15P power cord
  • USB cabling and DB9 serial cabling
  • Manual with warranty information
Additional Information:
  • Ideal for military, relief or other applications where low-voltage 120V output is required
  • Switches:Includes 2 front panel switches one main on/off power switch and one dual function "alarm cancel" / "self test" button
  • Low voltage transfer to battery power: Switches to battery power as line voltage drops to 83v or lower (159v at 230v nominal), resets to line power as line voltage increases to 87v or higher (167V at 230V nominal)
  • High voltage transfer to battery power: Switches to battery power as line voltage increases to 147V or higher (282V at 230V nominal), resets to line power when line voltage drops to 143v or lower (274V at 230V nominal)
Certifications & Standards:
Tested to UL1778 (USA), CSA C22.2 No. 107.3 (Canada), CE (IEC62040 / European Union), FCC Class A (Emissions)
Country of Origin:
Taiwan
TAA Compliant:
Yes
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0024294130687, 0037332126597
UPC: 024294130687, 037332126597
EAN: 0024294130687, 0037332126597
UNSPSC: 39121011
