Emergency Power OFF:
Yes
Transfer Time:
5 ms

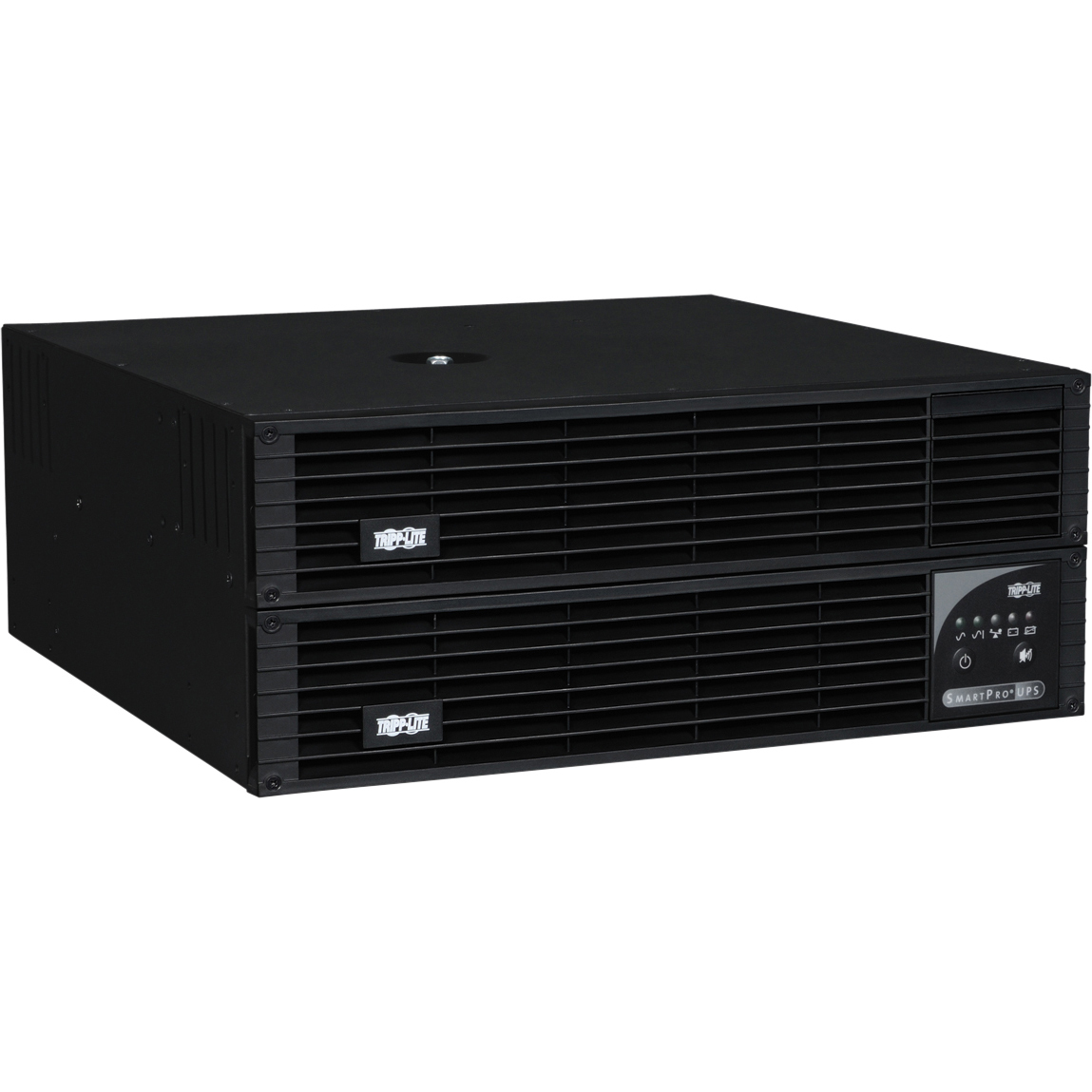

Tripp-Lite SMART3000CRMXL Power Device
Part Number:
SMART3000CRMXL
Model:
Parts
Tripp-Lite Parts Accessory Model Overview
Products and parts from Tripp-Lite.
Tripp-Lite SMART3000CRMXL Power Device Overview
SMART3000CRMXL 4U rackmount 3000VA UPS offers battery-derived sine wave AC output during power failures and extreme voltage variations. Supports 3000VA/2880 watts when powered via included L5-30P input plug. Supports up to 3600VA/3600 watts when hardwired to a 120V 30A input source. Line interactive Automatic Voltage Regulation (AVR) provides two levels of voltage boost during brownouts and one level of voltage cut during overvoltage conditions to maintain regulated 120V nominal output over an input range of 83-145V. Optional SNMPWEBCARD offers remote management and control of the UPS via direct network connection. HID-compliant USB interface enables full integration with built-in power management and auto shutdown features of Windows and Mac OS X. Includes PowerAlert monitoring software with USB and serial cables. 2 Year Warranty standard. 3 Year Warranty with product registration.
Technical Information
Power Description
Load Capacity:
3000 VA/2880 W
Input Voltage:
110 V AC
Output Voltage:
120 V AC
Input Current:
24 A
Management
Network Management:
SNMP Manageable
Interfaces/Ports
USB:
Yes
Battery Information
Backup/Run Time (Full Load):
5 Minute
Backup/Run Time (Half Load):
19 Minute
Physical Characteristics
Height:
7"
Width:
17.3"
Depth:
16.8"
Rack Height:
4U
Weight (Approximate):
102.07 lb
Miscellaneous
Package Contents:
- SmartPro Compact 4U Rackmount UPS System
- 2 x Post Rackmount Installation Brackets
- USB and Serial Cabling
- Owner's Manual Information
Additional Information:
- Output VA: 3600VA hardwired connection
- Output watts: 3600 watts hardwired connection
- Full load runtime: With hardwired line cord - 5 minutes (3600 watts)
- Half load runtime: With hardwired line cord - 13 minutes (1800 watts)
- Includes RJ11 EPO (emergency power off) port and interconnection cable
Certifications & Standards:
UL1778 (USA), CSA (Canada), NOM (Mexico), Class A (Emissions)
Software Included:
PowerAlert Software
Country of Origin:
Taiwan
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN:
0037332142375
UPC:
037332142375
EAN:
0037332142375
UNSPSC:
39121011
