Tripp-Lite SMART2200SLT Power Device

Part Number: SMART2200SLT
Model: Parts
to get Free Ground Shipping on your order.
$1,165.31

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Plug/Connector Type
NEMA 5-20P
Receptacle Type
NEMA 5-15/20RNEMA L5-20R
Receptacle Detail
6 x NEMA 5-15/20R1 x NEMA L5-20R
Emergency Power OFF
Yes

Product Description:

  Power Systems & Supplies, Tripp-Lite, SmartPro 120V 2.2kVA 1.6kW Line-Interactive Sine Wave UPS, Tower, Network Card Options, USB, DB9

Tripp-Lite Parts Accessory Model Overview

Products and parts from Tripp-Lite.
Tripp-Lite SMART2200SLT Power Device Overview

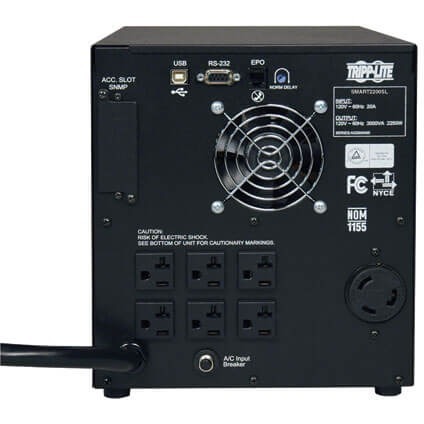

2200VA line-interactive tower UPS system for server, networking and telecommunications equipment. Upright tower form factor. Offers sine wave 120V nominal output in both AC and battery modes. Switches to battery-derived AC output during power failures and extreme voltage variations. Line-interactive automatic voltage regulation (AVR) provides voltage boost/cut during brownouts/overvoltages to maintain regulated 120V nominal output over an input voltage range of 83-145V. Includes NEMA 5-20P input plug and 7 UPS-supported (6 x 5-15/20R & 1 L5-20R) output receptacles. Network-grade AC surge and noise suppression. Network management interfaces support simultaneous communications via USB port, DB9 serial port and slot for Network Management Card option. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Supports simultaneous detailed monitoring of equipment load levels, self-test data and utility power conditions via all three network interfaces. PowerAlert UPS management software is available via free download. Three-stage metered current monitoring and battery charge status LEDs. Utility power and voltage regulation, and battery warning LEDs. Audible alarm. Self-test. Field-replaceable, hot-swappable internal batteries. Attractive all-black color scheme.

Technical Information
Plug/Connector Type:
NEMA 5-20P
Receptacle Type:
  • NEMA 5-15/20R
  • NEMA L5-20R
Receptacle Detail:
  • 6 x NEMA 5-15/20R
  • 1 x NEMA L5-20R
Emergency Power OFF:
Yes
Transfer Time:
4 ms
Power Description
Load Capacity:
2200 VA/1600 W
Input Voltage:
120 V AC
Output Voltage:
120 V AC
Input Current:
14.80 A
Management
Network Management:
SNMP Manageable
Interfaces/Ports
Modem (RJ-11):
Yes
USB:
Yes
Battery Information
Backup/Run Time (Full Load):
5 Minute
Backup/Run Time (Half Load):
13 Minute
Hot Swappable:
Yes
Physical Characteristics
Height:
10.5"
Width:
8.9"
Depth:
12.5"
Form Factor:
Tower
Weight (Approximate):
57 lb
Miscellaneous
Package Contents:
  • SmartPro SMART2200SLT 2200VA Tower UPS
  • SMART2200SLT UPS System
  • PowerAlert Software and cabling
  • Owner's manual with warranty information
Additional Information:
  • Ideal for protection of network fileservers, internetworking gear, switches, hubs, POS terminals, VoIP telephony and traditional PBX switching systems, back office computer systems, ATM machines, informational/Internet/commerce kiosks, remote unattended servers, web servers, database servers, security systems, card readers, security cameras and other sensitive electronic devices requiring clean, continuously regulated output power
  • Switches: 2 front panel mounted push-button switches for system enable, self-test and alarm cancel functions
Certifications & Standards:
Tested to UL1778 (USA), CSA C22.2 No. 107.3 (Canada), RoHS compliant, Class A (Emissions), NOM (Mexico)
Software Included:
PowerAlert Software
Country of Origin:
China
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0037332125774, 4923153173543
UPC: 037332125774
EAN: 0037332125774, 4923153173543
UNSPSC: 39121011
