Tripp-Lite SMART2200NET Accessory

Part Number: SMART2200NET
Model: Parts
to get Free Ground Shipping on your order.
Add to My Shopping List Add to Compare
$1,755.32

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Plug/Connector Type
NEMA 5-15P
Receptacle Type
NEMA 5-15R
Receptacle Detail
6 x NEMA 5-15R
Cord Length
8 ft

Product Description:

  Tripp Lite UPS Smart 2200VA 1700W Tower AVR 120V XL DB9 for Servers - Tower - 4 Hour Recharge - 11 Minute Stand-by - 120 V AC Input - 120 V AC Output - 6 x NEMA 5-15R
Explore all Tripp-Lite Parts Accessories
Add to Quote
Tripp-Lite SMART2200NET Accessory
Tripp-Lite SMART2200NET Accessory

Tripp-Lite Parts Accessory Model Overview

Products and parts from Tripp-Lite.
Tripp-Lite SMART2200NET Accessory Overview

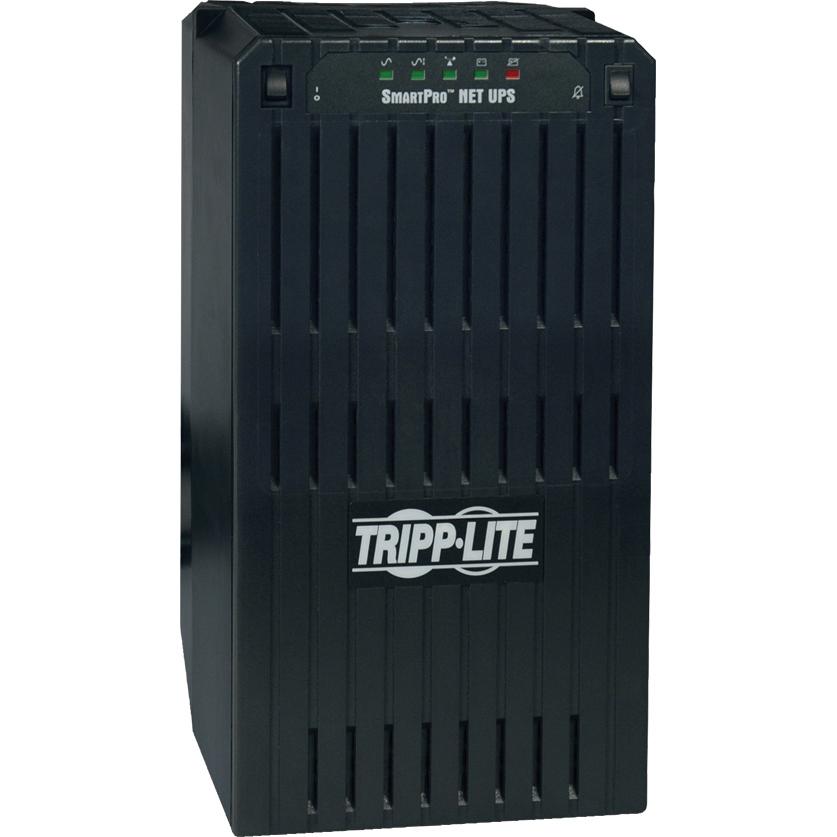

Tripp Lite's SMART 2200NET intelligent, line interactive large tower UPS system protects servers, networking accessories and telecommunications equipment from blackouts, voltage fluctuations and transient surges. Large internal batteries offer 27 minutes half load runtime and 11 minutes fully loaded. Runtime is expandable with optional BP24V28-2U (limit 1) and BP24V70-3U external battery packs. 2200VA/1700 watt power handling capability supports a variety of networking, telecom and other sensitive electronic applications. Includes 6 protected outlets. Supports remote monitoring of UPS and site power conditions via built-in RS-232 enabled monitoring port, plus standard UPS monitoring via 2 built in contact closure ports. PowerAlert UPS monitoring and unattended shutdown software is available via free download. Built-in audible alarm and front panel LEDs indicate line power, battery power, battery charge level, load level, plus voltage regulation status. Network grade AC surge suppression protects equipment from damage and performance problems resulting from transient surges.

Technical Information
Plug/Connector Type:
NEMA 5-15P
Receptacle Type:
NEMA 5-15R
Receptacle Detail:
6 x NEMA 5-15R
Cord Length:
8 ft
Transfer Time:
4 ms
Power Description
Load Capacity:
2200 VA/1700 W
Input Voltage:
120 V AC
Output Voltage:
120 V AC
Waveform Type:
Pulse-width Modulated Sine Wave
Surge Energy Rating:
720 J
Management
Network Management:
SNMP Manageable
Alarm:
On Battery
Controls/Indicators
Status Indicators:
Includes 5 front panel LEDs to indicate BATTERY CHARGE LEVEL, AC LINE POWER STATUS, VOLTAGE REGULATION STATUS, UPS LOAD LEVEL and BATTERY LOW / REPLACE information
Interfaces/Ports
Total Number of Expansion Slots:
3
Battery Information
Battery Chemistry:
Sealed Lead Acid (SLA)
Backup/Run Time (Full Load):
11 Minute
Backup/Run Time (Half Load):
27 Minute
Battery Life:
6 Year
Typical Battery Recharge Time:
4 Hour
Environmental Conditions
Maximum Operating Temperature:
122°F (50°C)
Physical Characteristics
Color:
Gray
Height:
17"
Width:
9"
Depth:
12.5"
Form Factor:
Tower
Weight (Approximate):
80 lb
Miscellaneous
Package Contents:
  • SMART2200NET UPS System
  • PowerAlert Software CD
  • 3 x 6-ft. network cables
  • Warranty information
  • Instruction manual
Additional Information:
  • SMART2200NET line interactive UPS offers battery derived AC output during power outages, voltage regulation during brownouts and overvoltages, plus network-grade AC surge suppression
  • 2200VA / 1700 watt power handling capability supports a variety of networking, telecom and other sensitive electronic devices
  • Large internal batteries offer runtimes of 27 minutes at half load (1100VA / 850 watts) and 11 minutes at full load (2200VA / 1700 watts)
  • Runtime is further expandable with optional external BP24V33 battery packs (output VA is de-rated as external battery packs are added, see specifications)
  • Automatic Voltage Regulation (AVR) circuits maintain 120V nominal output over an input voltage range of 87-140V
  • Includes 6 fully protected NEMA 5-15R outlets with 2 single outlet load banks that can be individually powered off and back on again via software interface
  • PowerAlert UPS monitoring and unattended shutdown software enables configurable network broadcast messaging, pager & email notification, event logging and running user defined script commands
  • Offers simultaneous monitoring of up to 3 directly connected devices through included DB9 contact closure and RS-232 enabled interfaces, or the monitoring of any number of additional servers over IP with included PowerAlert monitoring software
  • In addition to the contact closure monitoring of on battery, low battery and power restored messaging, built-in RS-232 interface supports messaging of UPS and line power status, including AC line voltage, DC battery voltage and remaining battery capacity
  • Supports activate self-test and UPS output power control for scheduled or immediate reboot of connected equipment
  • Diagnostic LEDs (indicate 17 performance conditions)
  • UL (USA), cUL (Canada), NOM (Mexico), FCC Class A (Business) Listed
  • $250,000 Ultimate Lifetime Insurance (USA & Canada Only)
Certifications & Standards:
UL1778 (USA), FCC Class A (emissions), Conforms to IEEE 587 / ANSI C62.41 specifications
Software Included:
PowerAlert Software
Recycled:
No
Assembly Required:
No
Country of Origin:
China
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0037332032041, 0743406374213, 0818271895023
UPC: 037332032041, 743406374213, 818271895023
EAN: 0037332032041, 0743406374213, 0818271895023
UNSPSC: 39121011
